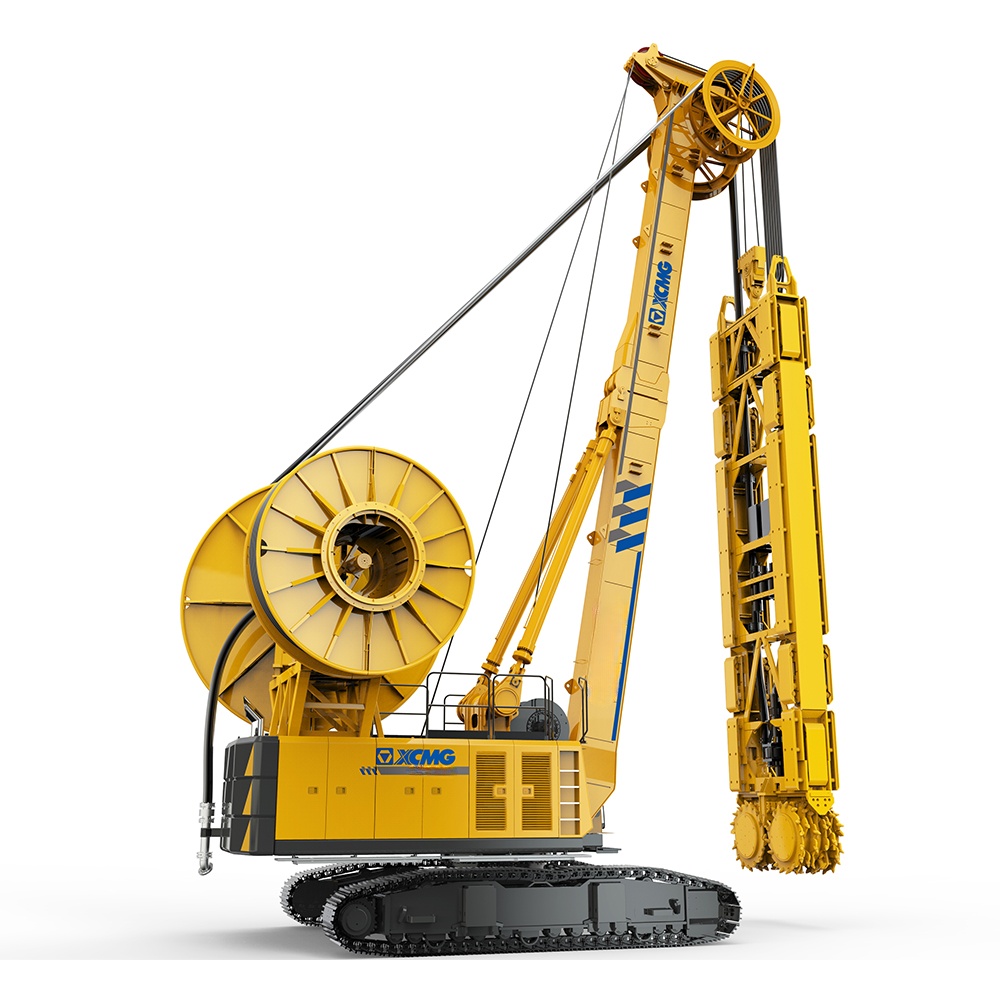

XCMG XTC80/55

XTC80/55 - XCMG XTC80/55 - trench cutter XTC80/55

Model	XTC80/55
power	Cummins QSM11 298kw@2100rpm
trench width	800~1200mm
max wall depth	55m
trench length	2800mm
trench accuracy	2‰
max torque	2x80kN.m
rotary speed	0~23rpm
max pull-down piston pull	2x300kN
rope diameter	36mm
slag discharge way	air-life reverse circulation
type of base machine	multifunction
system pressure	32Mpa
working radius	4800~5800mm
track shoe width	800mm
traveling speed	1.2km/h
max grade ability	35%
min clearance	450mm
dimension in working	10805657518914mm
dimension in transporation	1612035003800mm
total weight	140t
