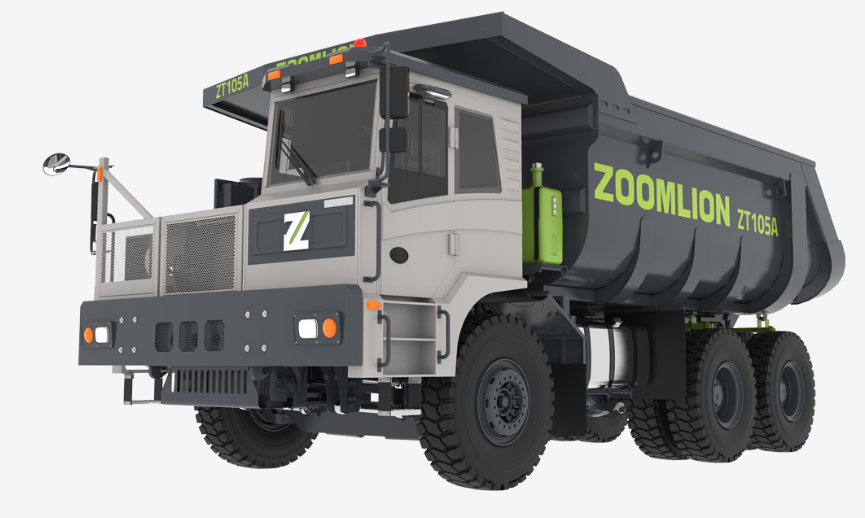

ZOOMLION ZT105A

ZT105A - ZOOMLION ZT105A -ZOOMLION ZT105A mining dump truck



Model ZT105A
Curb weight (t) 34
Rated payload (t) 70
Max. speed (km/h) 45
Max. gradeability (%) 33
Min. turning radius (m) 13
Capacity(struck) (m³) 30
Capacity(heaped 2:1) (m³) 34
Front Tires 16.00R25
Rear Tires 14.00R25
Engine model YC6K480-T300
Engine displacement(L) 12.155
Emission standard China Non - road Stage III
Rated power (kW) 353
Max. torque (N·m/rpm) 2200 N·m/1100~1500 r/min
Transmission model(MT) FAST 8DS260
Steering system Fully hydraulic



ZOOMLION Mining Dump Truck

ZT125G(AT)
ZT125A
ZT115A
ZT105A
ZT96A

All specifications are approximate. Specifications are subject to change without notice.
