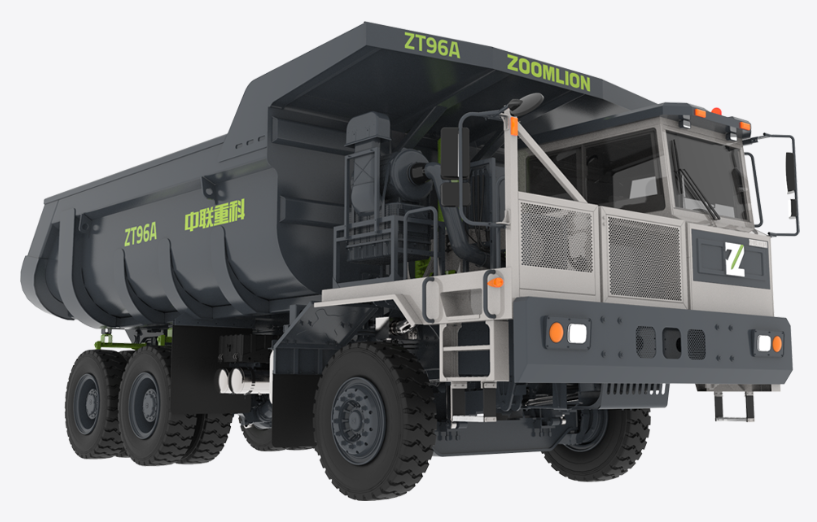

ZOOMLION ZT96A



ZT96A - ZOOMLION ZT96A -ZOOMLION ZT96A mining dump truck



Model ZT96A
Curb weight (t) 30
Rated payload (t) 60
Max. speed (km/h) 41
Max. gradeability (%) 33
Min. turning radius (m) 12
Capacity(struck) (m3) 30
Capacity（heaped 2:1） (m3) 36
Tires 14.00R25
Engine model YC6K480-GT30
Engine displacement(L) 12.155
Emission standard China Non - road Stage III
Rated power (kW) 353
Max. torque (N·m/rpm) 2200 N·m/1100~1500 r/min
Transmission model(MT) FAST 7DS220
Steering system Fully hydraulic



ZOOMLION Mining Dump Truck

ZT165HEV
ZT165EV
ZT160HEV
ZT135HEV
ZT135G
ZT125G(AT)
ZT125A
ZT118EV
ZT115A
ZT105A
ZTS96A
ZT96A

ZTE520
ZTE520HEV
ZTE240HEV
ZTE210
ZRS35G

All specifications are approximate. Specifications are subject to change without notice.
