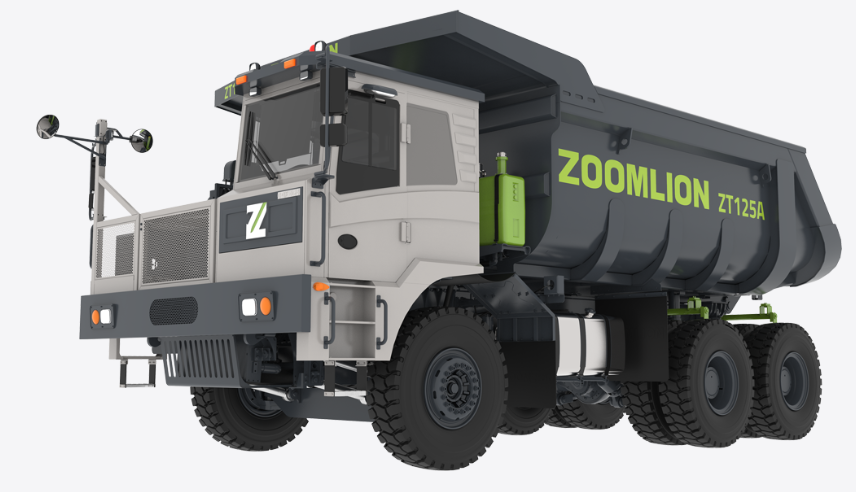

ZOOMLION ZT125A

ZT125A - ZOOMLION ZT125A -ZOOMLION ZT125A mining dump truck



Model ZT125A
Curb weight (t) 34.66
Rated payload (t) 85
Max. speed (km/h) 35(MT)/45(AT)
Max. gradeability (%) 32
Min. turning radius (m) 11
Axle payload(t) 35+45+45
Steering system Fully hydraulic
Tires 16.00R25
Engine model YCK13580-T400
Emission standard China Non - road Stage III
Engine displacement (L) 12.939
Rated power (kW/rpm) 426
Max. torque (N·m/rpm) 2600 N·m/1100~1900 r/min
Transmission model(MT) FAST 8DS260
Transmission model (AT) FC 6A250
Capacity (m³) 32(Struck) 38(Heaped 2:1)



ZOOMLION Mining Dump Truck

ZT125G(AT)
ZT125A
ZT115A
ZT105A
ZT96A

All specifications are approximate. Specifications are subject to change without notice.
