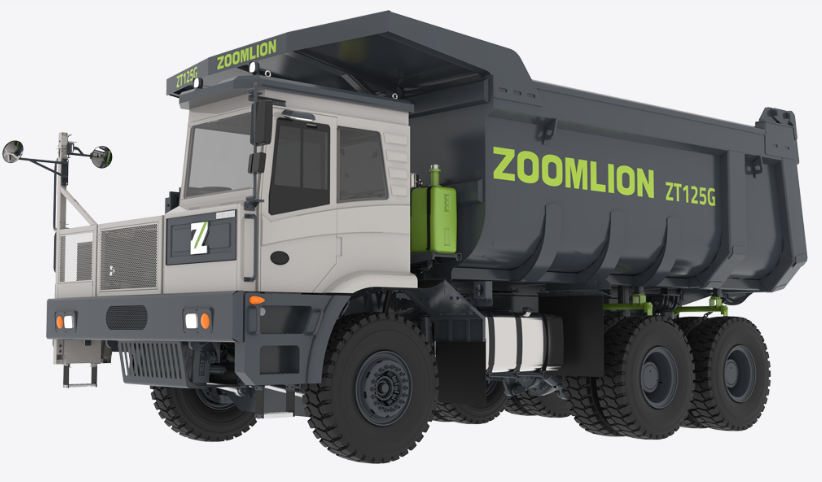

ZOOMLION ZT125G(AT)

ZT125G(AT) - ZOOMLION ZT125G(AT) -ZOOMLION ZT125G(AT) mining dump truck



Model ZT125G(AT)
Curb weight (t) 36
Rated payload (t) 90
Max. speed (km/h) 40
Max. gradeability (%) 37
Min. turning radius (m) 12
Steering system Fully hydraulic
Tires 16.00R25
Engine model YCK16775
Emission standard China Non - road Stage III
Engine displacement (L) 15.939
Rated power (kW/rpm) 570/1900
Max. torque (N·m/rpm) 3200 N·m/1100~1500 r/min
Transmission model (AT) FC7A260
Capacity (m³) 58(Heaped 2:1)



ZOOMLION Mining Dump Truck

ZT125G(AT)
ZT125A
ZT115A
ZT105A
ZT96A

All specifications are approximate. Specifications are subject to change without notice.
