Agricultural Bearing

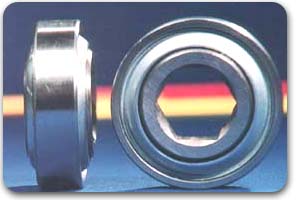

agricultural bearings serial-1

agricultural-bearing-serial-1-drawing agricultural-bearing-serial-1-photo

Bearing# Dimension (mm)
A D B C
202KRR3 14.30 35.00 13.00 11.00
204KRR2 17.65 47.00 20.96 14.00
205KRR2 22.25 52.00 25.40 15.00
207KRR17 28.60 72.00 25.00 17.00
207KRR12 28.60 72.00 25.00 17.00
205PP13 22.25 52.00 25.40 15.00
206KPP3 25.43 62.00 24.00 16.00
206KRR6 25.43 62.00 24.00 16.00
207KRPP3 31.77 72.00 37.70 17.00
207KRR9 28.60 72.00 37.70 17.00
G206KPP4 25.43 62.00 24.00 18.00
W208KRR8 31.77 80.00 36.53 18.00
209KRR2 38.125 85.00 30.00 19.00









agricultural bearings serial-2

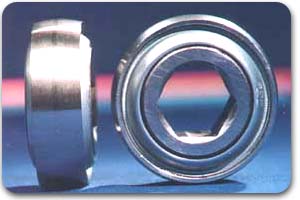

agricultural-bearing-serial-2-drawing.jpg agricultural-bearing-serial-2-photo.jpg

Bearing# Dimension(mm)
A B C
205KRRB2 22.25 52.00 25.40 15.00
205PPB13 22.25 52.00 25.40 15.00
206KRRB6 25.43 62.00 24.00 16.00
206KPPB3 25.43 62.00 24.00 16.00
207KPPB3 31.77 72.00 25.00 17.00
207KRRB9 28.60 72.00 37.70 17.00
207KRRB12 28.60 72.00 25.00 17.00
207KRRB17 28.60 72.00 25.00 17.00
G206KPPB4 25.43 62.00 24.00 18.00
G206KRRB6 25.43 62.00 24.00 18.00
G207KPPB2 28.60 72.00 37.70 19.00
GW208KRRB5 31.77 80.00 36.53 21.00
GW208PPB22 31.88 80.00 36.53 21.00
W208PPB16 31.77 80.00 36.53 18.00
W208KRRB6 34.95 80.00 36.53 21.00
209KRRB2 38.125 85.00 30.00 19.00









agricultural bearings serial-3

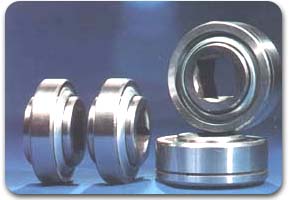

agricultural-bearing-serial-3-drawing1 agricultural-bearing-serial-3-drawing2 agricultural-bearing-serial-3-photo

Bearing# Dimension(mm)
H D B C
W208PP6 26.13 80.00   36.53 18.00
W208PP5 29.97 80.00   36.53 18.00
W208PP20 29.97 80.00   36.53 18.00
W208PP8 29.97 80.00   36.53 30.18
W208PP9 26.13 80.00   36.53 30.18
W211PP5 38.89 101.60   44.45 36.53
W208PPB12 29.97 85.738 87.30 36.53 30.18
W208PPB11 22.97 85.738 87.30 36.53 30.18
GW208PP17 29.97 85.738   36.53 30.18
GW210PP4 29.97 90.00   30.18 30.18
W210PP4 29.97 90.00   30.18 30.18
GW211PP17 38.89 100.00   44.45 33.34
GW211PP3 38.89 100.00   33.34 33.34
W211PP3

38.89

100.00   33.34 33.34
W216PP2 58.57 140.00   63.50 30.00









agricultural bearings serial-4

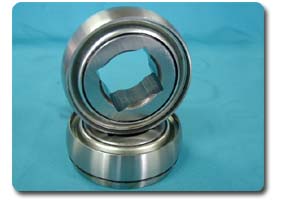

agricultural-bearing-serial-4-drawing1agricultural-bearing-serial-4-drawing2agricultural-bearing-serial-4-photo

Bearing# Dimension (mm) Dimension (mm) Dimension (mm) Dimension (mm) Approx.Weight
H B C
W208PPB13 22.97 80.00 36.53 18.00
W208PPB6 26.13 80.00 36.53 18.00
W208PPB5 29.97 80.00 36.53 18.00
W208PPB8 29.97 80.00 36.53 30.00
W208PPB9 26.13 80.00 36.53 30.18
W209PPB5 32.77 85.00 36.53 30.18
W210PPB6 29.97 90.00 36.53 30.18
GW208PPB6 26.13 80.00 36.53 24.00
GW208PPB5 29.97 80.00 36.53 24.00 0.630KGS
GW208PPB8 29.97 80.00 36.53 30.18
GW208PPB17 29.97 85.735 36.53 30.18

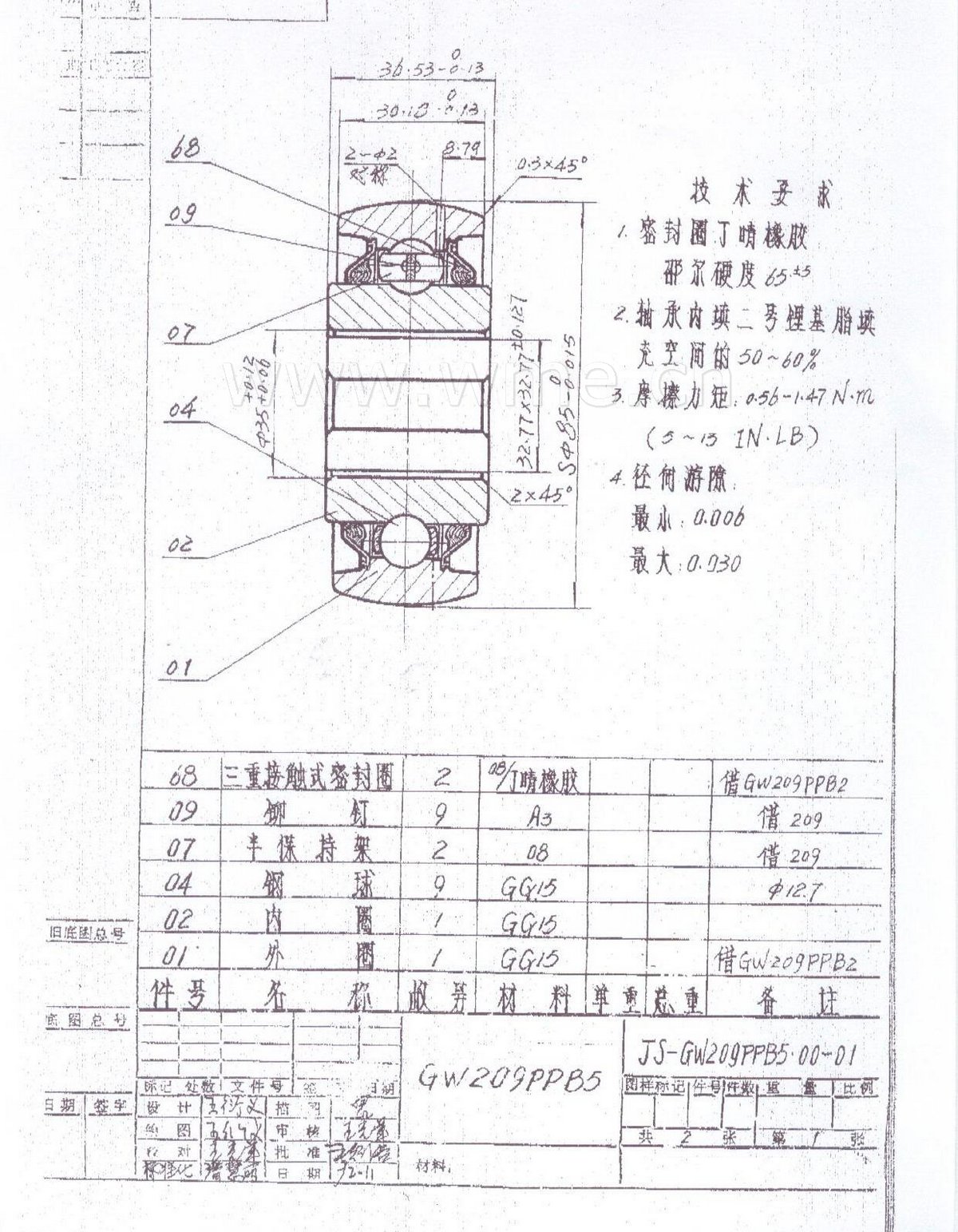

GW209PPB5 32.77 85.00 36.53 30.18
GW216PPB4 45.77 140.00 63.50 30.00
GW216PPB2 58.57 140.00 63.50 30.00
W210PPB4 29.97 90.00 30.18 30.18
W211PPB3 38.89 100.00 33.34 33.34
GW210PPB4 29.97 90.00 38.18 38.18
GW211PPB3 38.89 100.00 33.34 33.34
GW214PPB4 52.17 125.00 39.69 39.69









agricultural bearings serial-5

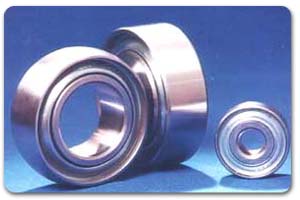

agricultural-bearing-serial-4-drawing1.jpg agricultural-bearing-serial-5-drawing2 agricultural-bearing-serial-5-photo

Bearing# Dimension (mm)
d D R B
202NPP9 12.700 38.10 19 11.00
202KRR7 12.700 38.10 19 14.27
203NPP9 15.900 40.00   12.95
P204RR6 19.050 45.22   15.49
204RR7 19.063 45.22   15.49
204RR6 19.063 45.00   15.49
W210PP8 38.860 90.00   30.18
W210PP2 49.230 90.00   30.18
W211PP2 55.580 100.00   33.34
W214PP2 70.000 125.00   39.69
GW210PP3 35.730 90.00   30.18
GW211PP2 55.580 100.00   33.34
GW214PP2 70.000 125.00   39.69

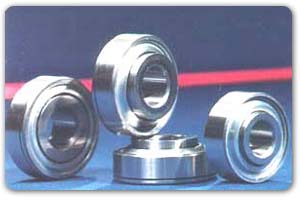

agricultural bearings serial-6

agricultural-bearing-serial-6-drawing1agricultural-bearing-serial-6-drawing2 agricultural-bearing-serial-6-drawing3 agricultural-bearing-serial-6-photo

Bearing# Dimension (mm)
d D B C
203KRR2 15.883 40.00 14.00 12.00
206KRD 30.000 62.00 19.00 16.00
203JD 17.000 40.00 14.00 12.00
204KRD4 16.020 47.00 17.50 14.00
H206KPP2 19.050 62.00 24.00 16.00
204RY2 16.030 45.22 18.67 15.49
205RVA 19.050 52.00 21.00 15.00
205GP 16.000 53.00 19.50 18.20
205KR3 19.050 52.00 16.26 17.78
205KP6 19.080 52.00 23.39 17.78









agricultural bearings serial-7

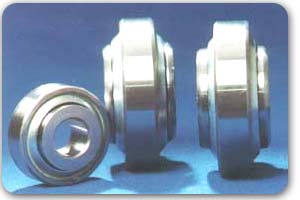

agricultural-bearing-serial-7-drawing1 agricultural-bearing-serial-7-photo

Bearing# Dimension (mm)
d D B C
203KRR2 16.256 40.00 18.29 12.00
203KRR5 13.081 40.00 18.29 12.00
203KRR7 17.000 40.00 16.61 12.00
203KRR6 16.260 77.00 18.29 12.00
204KRNP5 15.570 45.22 28.57 15.49
205KRR6 13.080 52.00 34.92 15.00
205KRR7 12.700 52.00 38.10 15.00
206KRR8 30.000 62.00 24.00 16.00
207KRR 35.000 72.00 25.00 17.00
207KRR14 31.826 72.00 25.00 17.00
207KYY 35.000 72.00 25.00 17.00
205KR4 25.413 52.00 25.40 15.00
206KR7 30.000 62.00 24.00 16.00
205PP9 19.050 52.00 34.92 15.00
205PP10 15.875 52.00 34.92 15.00
205PP11 25.400 52.00 30.15 15.00
205PP12 15.875 52.00 38.10 15.00
206KRR13 19.050 62.00 24.00 16.00
W208PP10 38.113 80.00 42.86 21.00
208KRR2 40.000 80.00 27.00 21.00
209KRR3 45.000 85.00 27.00 21.00
210KRR 50.000 90.00 30.00 20.00
212KRR 60.000 110.00 36.00 22.00
GW210PP9 49.400 90.00 36.53 23.00
GW216PP5 63.880 140.00 63.50 30.00

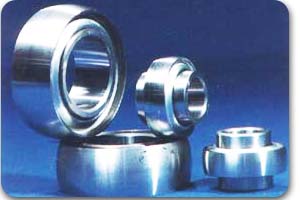

agricultural bearings serial-8

agricultural-bearing-serial-8-drawing1 agricultural-bearing-serial-8-drawing2agricultural-bearing-serial-8-photo

Bearing# Dimension (mm)
D B C
205PPB7 23.813 52.00 34.92 15.00
RE205PPB7.S 25.400 52.00 34.92 15.00
206KRRB3 28.575 62.00 24.00 16.00
206KRRB9 25.400 62.00 24.00 16.00
G205PPB7 23.813 52.00 34.92 15.00
W208PPB7 30.180 80.00 30.18 18.00
W208PPB2 38.113 80.00 42.86 18.00
W208PPB23 38.113 80.00 42.86 30.18
W214PPB9 70.260 125.00 44.45 28.00
208NPPB5 36.525 80.00 22.00 22.00
W208PPB4 30.175 80.00 30.18 30.18
W209PPB2 45.000 85.00 30.18 30.18
W209PPB4 39.000 85.00 30.18 30.18
W210PPB2 49.230 90.00 30.18 30.18
W210PPB5 45.340 90.00 30.18 30.18
W211PPB2 55.580 100.00 33.34 33.34
W214PPB2 70.000 125.00 39.69 39.69
GW209PPB4 39.000 85.00 30.18 30.18
GW209PPB2 45.000 85.00 30.18 30.18
GW210PPB5 45.340 90.00 30.18 30.18
GW210PPB2 49.230 90.00 30.18 30.18
GW211PPB10 49.230 100.00 33.34 33.34
GW211PPB2 55.528 100.00 33.34 33.34
GW214PPB2 70.000 125.00 39.69 39.69
GW209PPB11 45.240 85.00 36.53 22.00
GW211PPB13 45.340 100.00 33.34 25.00
GW211PPB14 51.180 100.00 33.34 25.00
GW211PPB8 55.580 100.00 33.34 25.00
GW211PPB9 55.750 100.00 39.69 25.00
GW214PPB6 68.280 125.00 68.28 28.00
GW214PPB5 70.000 125.00 61.90 39.69

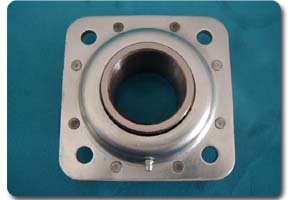

agricultural bearing unit serial-1

agricultural-bearing-unit-serial-1-drawing1 agricultural-bearing-unit-serial-1-drawing2agricultural-bearing-unit-serial-1-photo

Bearing# d Φ A C F J K

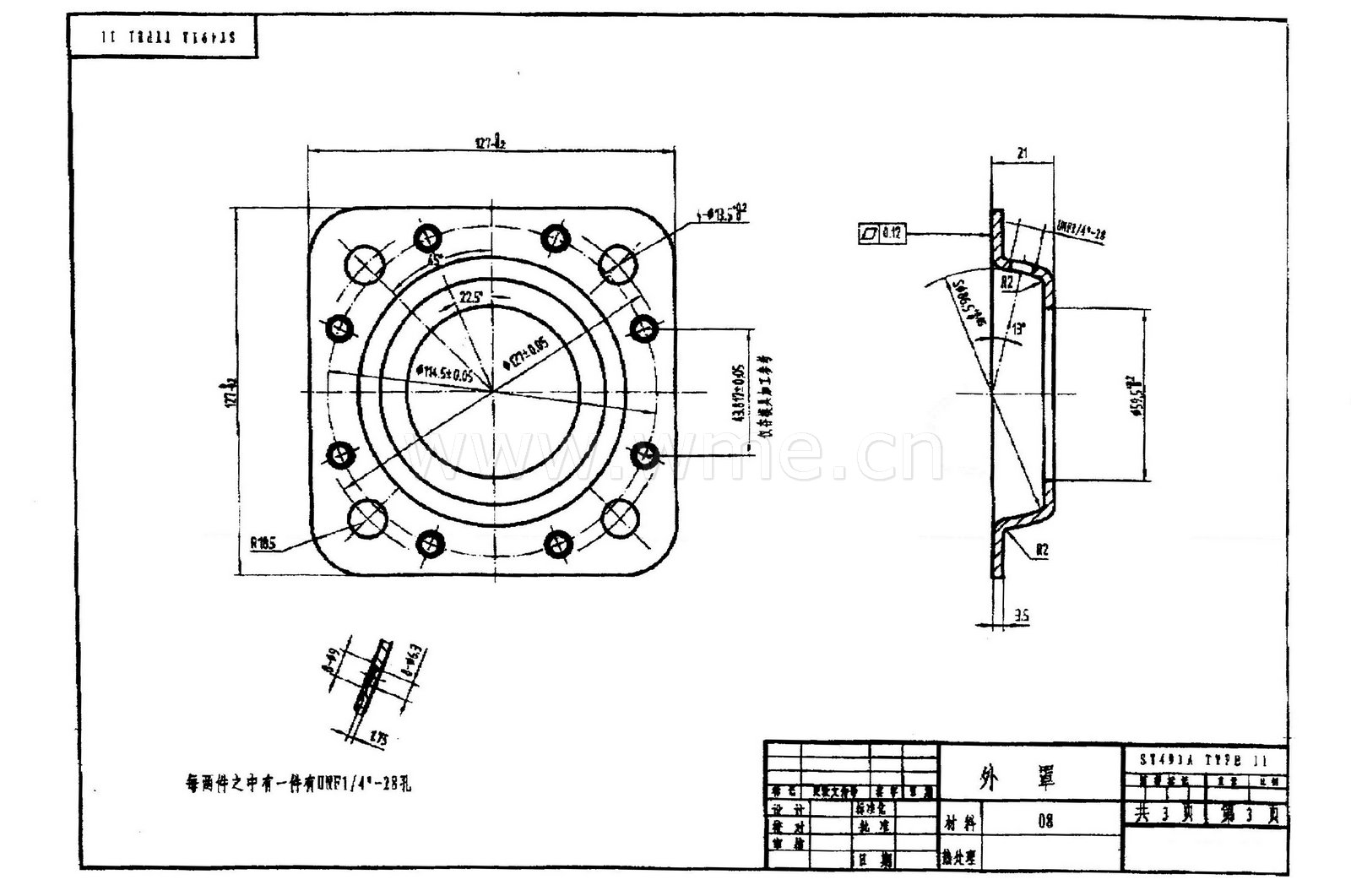

491A 45 13.5 42.86 127.00 127.00 41.70 6.75
FD211RJA 49 13.5 54.00 139.70 139.70 46.00 8.00
DHU1¾R-211 45 13.5 54.00 139.70 139.70 46.00 8.00
DHU1R-211 56.1 13.5 55.60 139.70 139.70 46.00 8.00

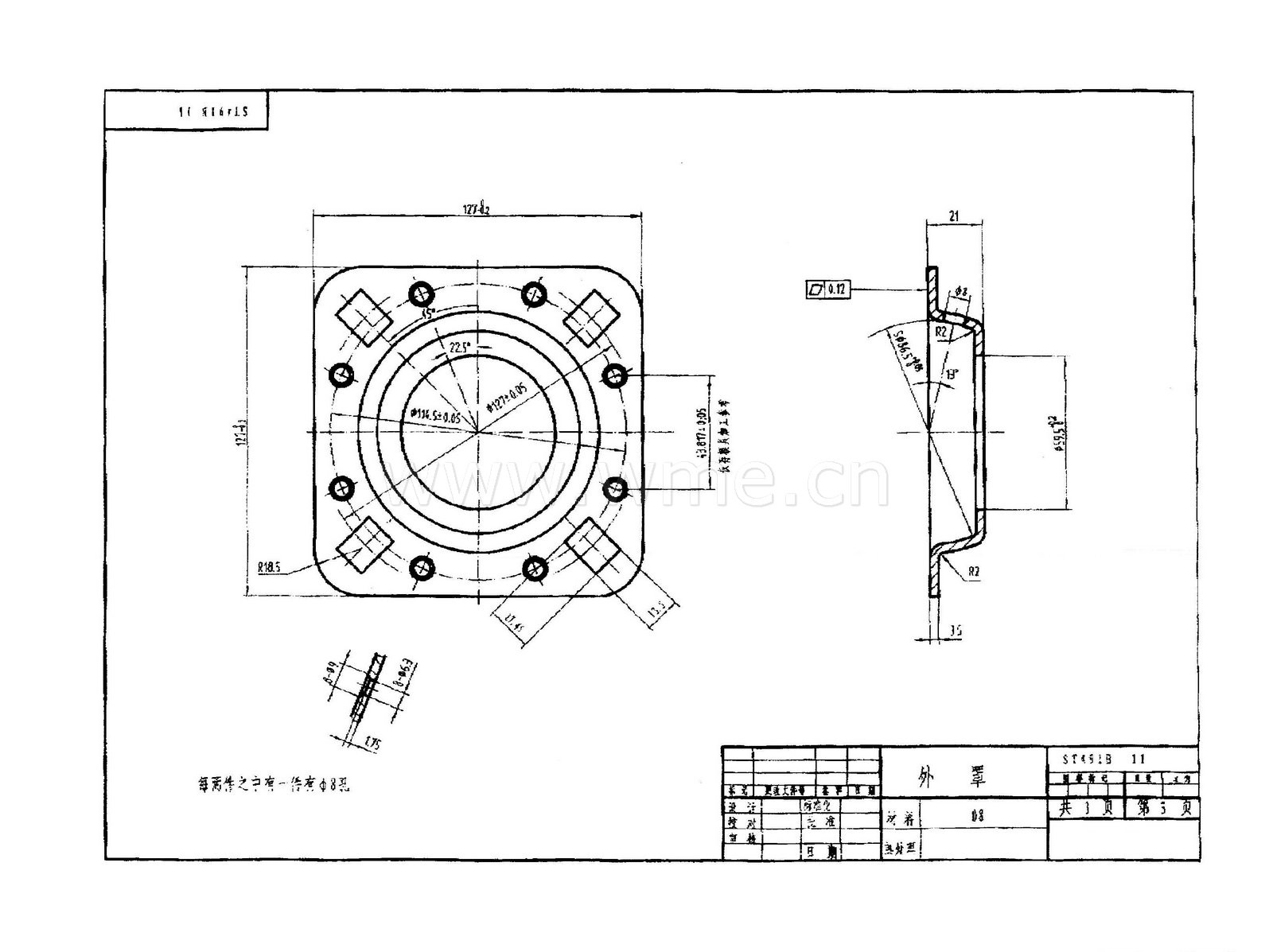

agricultural bearing unit serial-2

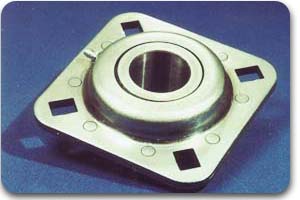

agricultural-bearing-unit-serial-2-photo

agricultural-bearing-unit-serial-2-drawing1 agricultural-bearing-unit-serial-2-drawing2agricultural-bearing-unit-serial-2-drawing3 agricultural-bearing-unit-serial-2-drawing4

Bearing# H d D E A C F J K
491B   38.70 16.70 13.50 2.86 127.00 127.00 41.70 6.75
DHU1S-209 29.97   16.70 13.50 42.86 127.00 127.00 41.70 6.75
