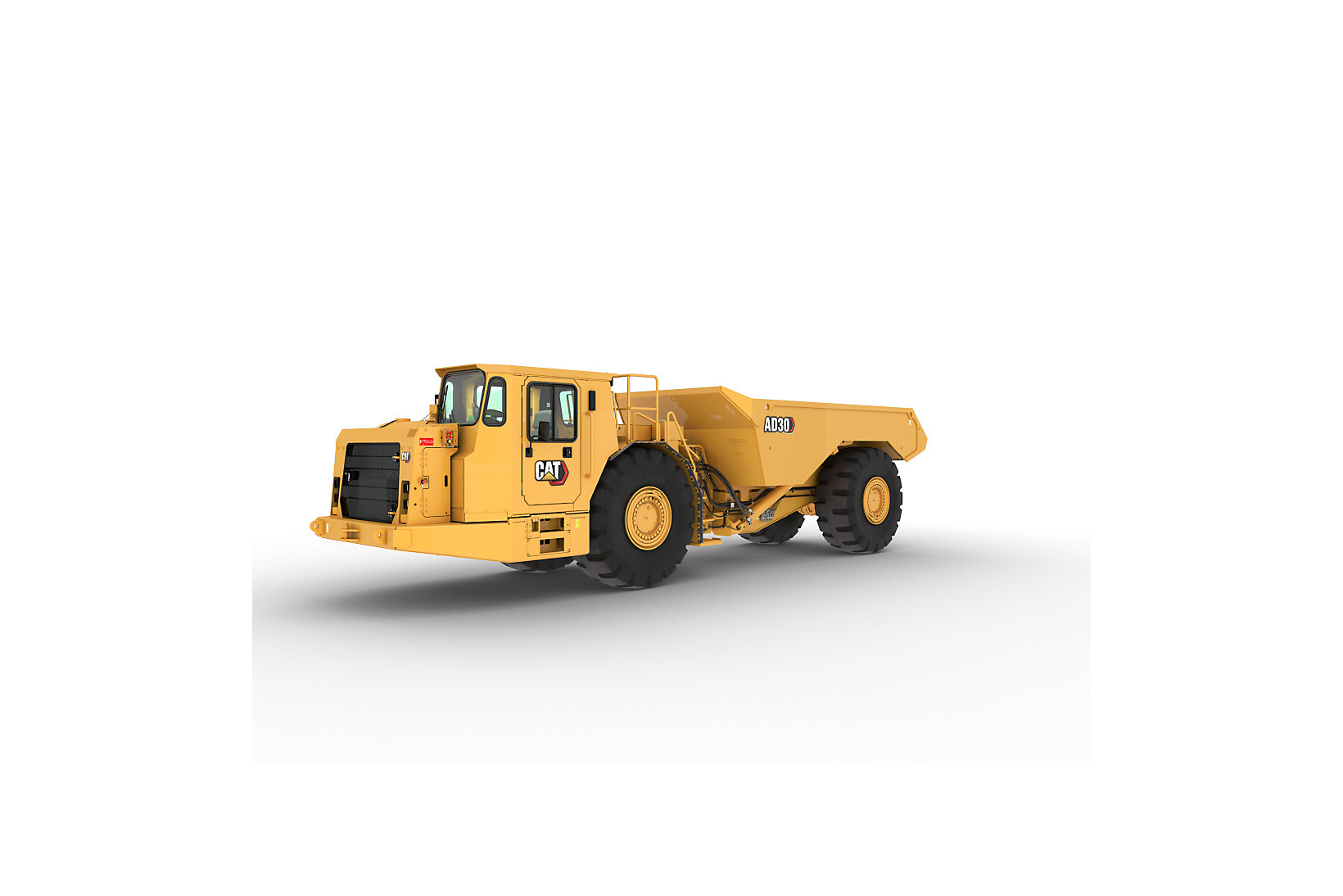

CAT AD30 - Underground Mining Truck

Model	CAT AD30
Engine Model	Cat® C15
Engine Power - Tier 3 Engine - ISO 14396:2002	401hp
Engine Power - VR Engine - ISO 14396:2002	401hp
Bore	5.4in
Stroke	6.8in
Displacement	928in^3
Empty	63647lb
Empty - Front Axle	42944lb
Empty - Rear Axle	20704lb
Loaded	132277lb
Loaded - Front Axle	58451lb
Loaded - Rear Axle	73826lb
Outside Clearance Radius	337.4in
Inner Clearance Radius	198in
Articulation Angle	42.5°
Frame Oscillation	10 Degrees
Forward - 1	3.9mile/h
Forward - 2	7mile/h
Forward - 3	12.9mile/h
Forward - 4	22.8mile/h
Reverse - 1	4.4mile/h
Fuel Tank	108gal
Engine Crankcase - With Filter	9gal
Transmission	18gal
Hydraulic Tank	38gal
Cooling System	20gal
Front Differential and Final Drives	15gal
Rear Differential and Final Drives	15gal

CAT AD30

CAT AD45

CAT AD63

All specifications are approximate. Specifications are subject to change without notice.
