| Model |

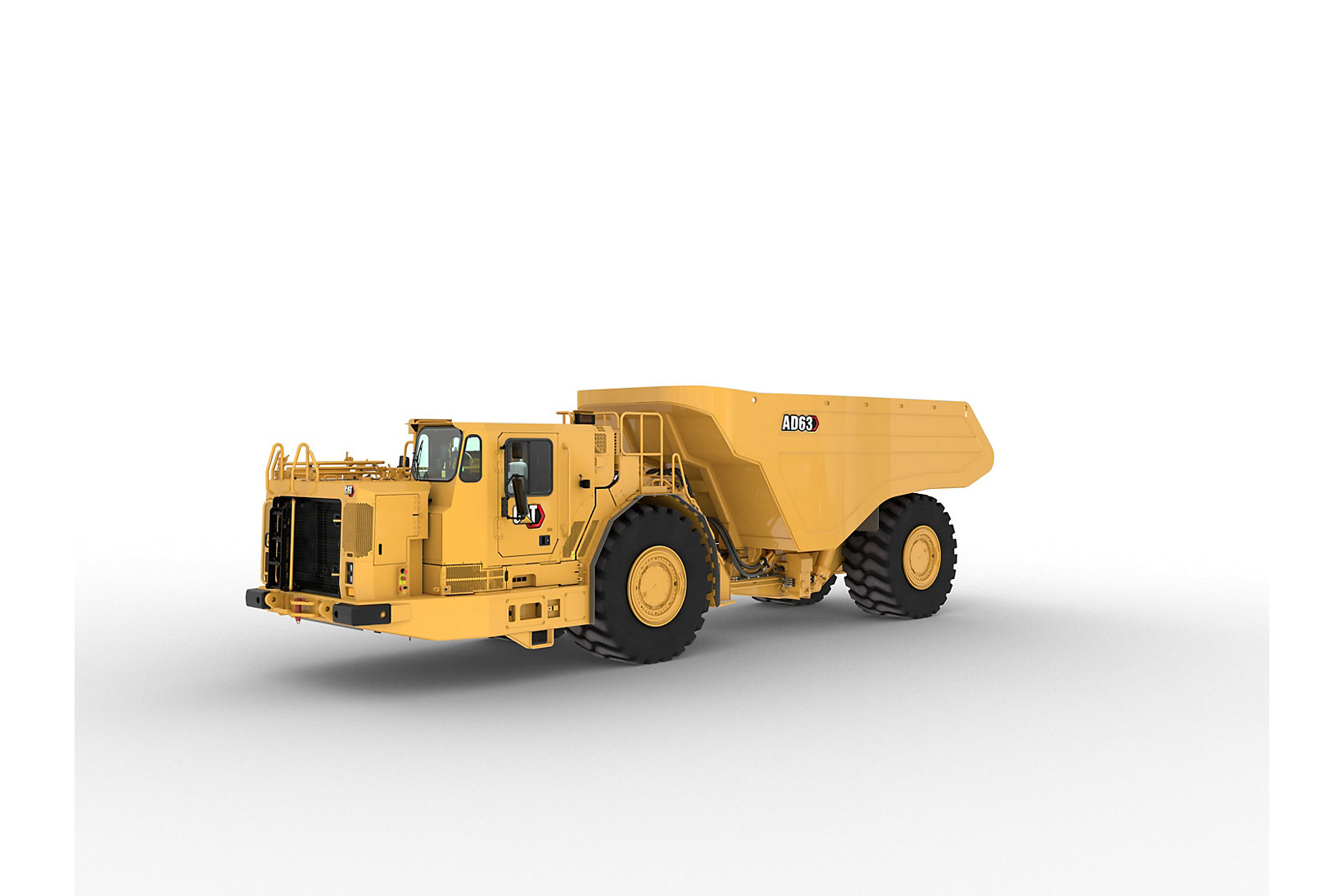

CAT AD63 |
| Engine Model |
Cat® C27 |
| Engine Power - EU Stage V Engine - ISO 14396:2002 |
598hp |
| Bore |
5.4in |
| Stroke |
6in |
| Displacement |
1650n^3 |
| Empty |
115577lb |
| Empty - Front Axle |
81716lb |
| Empty - Rear Axle |
33861lb |
| Loaded |
254468lb |
| Loaded - Front Axle |
126669lb |
| Loaded - Rear Axle |
127800lb |
| Outside Clearance Radius |
393.9in |
| Inner Clearance Radius |
218.1in |
| Articulation Angle |
42.5° |
| Frame Oscillation |
10° |
| Forward - 1 |
4.1mile/h |
| Forward - 2 |
5.7mile/h |
| Forward - 3 |
7.7mile/h |
| Forward - 4 |
10.3mile/h |
| Forward - 5 |
14mile/h |
| Forward - 6 |
18.9mile/h |
| Forward - 7 |
25.5mile/h |
| Reverse - 1 |
5.3mile/h |
| Fuel Tank |
237.7gal |
| Engine Crankcase - With Filter |
25gal |
| Transmission |
14gal |
| Hydraulic Tank |
100.6gal |
| Cooling System |
39.6gal |
| Front Differential and Final Drives |
36.5gal |
| Rear Differential and Final Drives |
237.7gal |
|
|
