| Model |

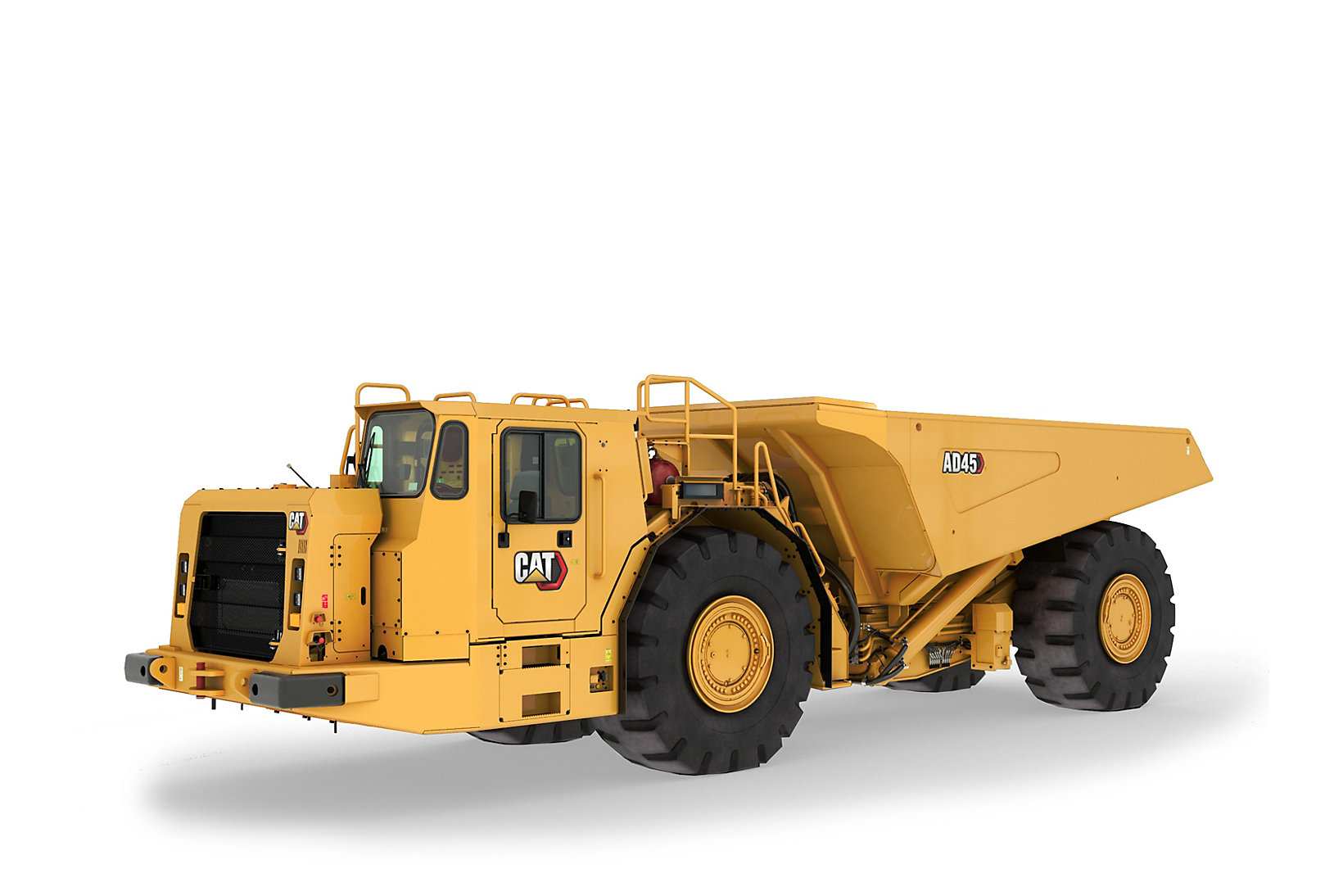

CAT AD45 |
| Engine Model |
Cat® C18 |
| Engine Power - EU Stage V Engine - ISO 14396:2002 |
598hp |
| Engine Power - Tier 3 Engine - ISO 14396:2002 |
581hp |
| Engine Power - VR Engine - ISO 14396:2002 |
581hp |
| Bore |
5.7in |
| Stroke |
7.2in |
| Displacement |
1104.53n^3 |
| Operating Mass |
88320lb |
| Operating Mass - Front Axle |
61225lb |
| Operating Mass - Rear Axle |
27095lb |
| Operating Mass + Rated Payload |
187035lb |
| Operating Mass + Rated Payload - Front Axle |
85355lb |
| Operating Mass + Rated Payload - Rear Axle |
102175lb |
| Outside Clearance Radius |
371in |
| Inner Clearance Radius |
209in |
| Articulation Angle |
42.5° |
| Frame Oscillation |
10° |
| Forward - 1 |
4.4mile/h |
| Forward - 2 |
5.9mile/h |
| Forward - 3 |
8mile/h |
| Forward - 4 |
10.8mile/h |
| Forward - 5 |
14.6mile/h |
| Forward - 6 |
19.7mile/h |
| Forward - 7 |
26.4mile/h |
| Reverse - 1 |
4.2mile/h |
| Reverse - 2 |
5.6mile/h |
| Fuel Tank |
201.8gal |
| Engine Crankcase - With Filter |
16.9gal |
| Transmission |
15.9gal |
| Hydraulic Tank |
70.3gal |
| Cooling System |
22.5gal |
| Front Differential and Final Drives |
20.3gal |
| Rear Differential and Final Drives |
21.9gal |
