Marine Main Engine





TBD234/CHD234CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
TBD234V6 1300 1635 738 631 1205 988 700 425
CHD234V6CR 1300 1635 738 631 1205 988 700 425
TBD234V8 1500 1810 738 801 1263 988 700 427
CHD234V8CR 1500 1810 738 801 1263 988 700 427
TBD234V12 2200 2114 738 1141 1135 1314 700 420
CHD234V12CR 2200 2114 738 1141 1135 1314 700 420



  Engine Main Technical Parameter
Bore/stroke 128/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 6 8 12
Unit cylinder displacement 1.8 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



CHD314V8/CHD314V8CR



Dimension and Weight



Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
CHD314V8 1600 1810 738 801 409 988 700 427
CHD314V8CR 1600 1810 738 801 409 988 700 427



  Engine Main Technical Parameter
Bore/stroke 132/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 8
Unit cylinder displacement 1.9 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top

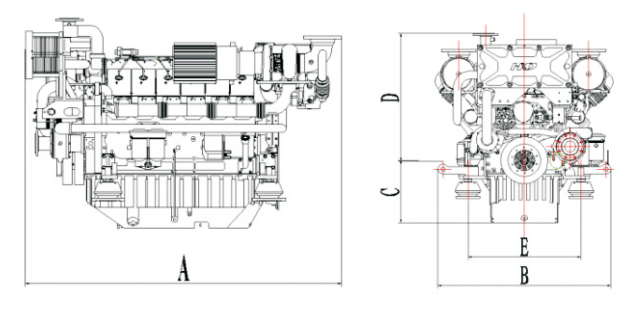

CHD316B/CHD316BCR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD316BV12 2420 2246 1360 481.5 975 860
CHD316BV12CR 2420 2246 1360 481.5 975 860
CHD316BV16 3450 2585 1318 512 918 860
CHD316BV16CR 3450 2585 1318 512 918 860



  Engine Main Technical Parameter
Bore/stroke 132/160 mm
Cylinder arrangement V type , Angle 60°
Cylinder numbers 12 16
Unit cylinder displacement 2.19 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top

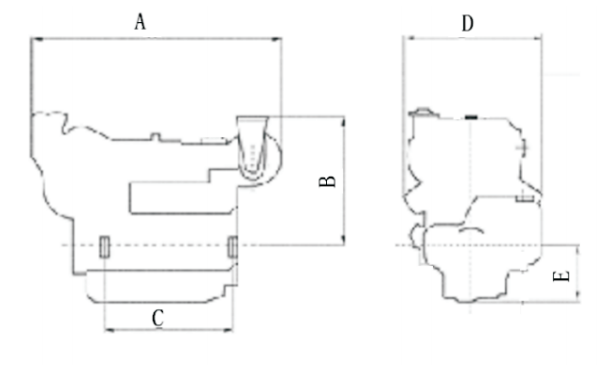

TBD604BL6/CHD604BL6CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
TBD604BL6 2250 2242 1536 1233 1349 566
CHD604BL6CR 2250 2242 1536 1233 1349 566



  Engine Main Technical Parameter
Bore/stroke 170/160 mm
Cylinder arrangement in-line L-type
Cylinder number 6
Unit cylinder displacement 4.42 L
Compression ratio 14.2 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top

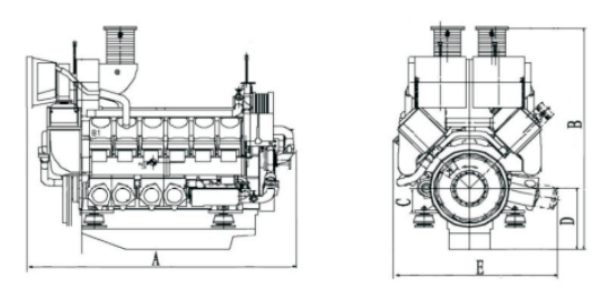

TBD620/CHD620CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD620L6 3200 2497 2038 240 602 1378
CHD620L6CR 3200 2497 2038 240 602 1378
TBD620V8 3700 2507 2153 220 600 1450
CHD620V8CR 3700 2507 2153 220 600 1450
TBD620V12 5200 2990 2182 220 600 1485
CHD620V12CR 5200 2990 2182 220 600 1485
TBD620V16 6300 3479 2255 220 660 1516
CHD620V16CR 6300 3479 2255 220 660 1516



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement V type , Angle 90°
Cylinder numbers L6 V8 V12 V16
Displacement 26.55 L 35.41 L 53.11 L 70.82 L
Compression ratio 13.5 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top

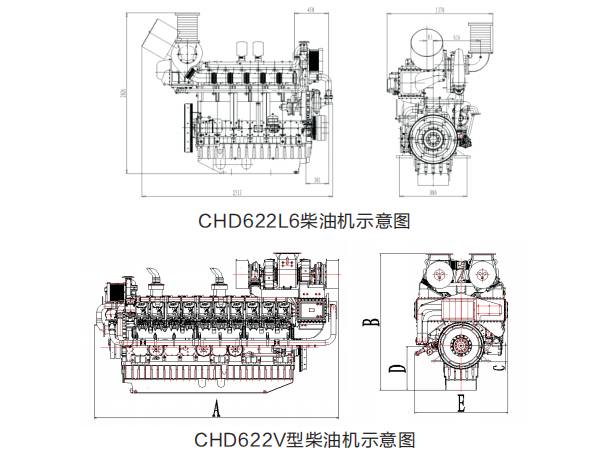

CHD622/CHD622CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD622L6 3750 2513 2026 215 602 1378
CHD622L6CR 3750 2513 2026 215 602 1378
CHD622V16 7880 3493 2166 265 685 1536
CHD622V16CR 7880 3493 2166 265 685 1536
CHD622V20 9550 3857 2221 265 726.5 1623
CHD622V20CR 9550 3857 2221 265 726.5 1623



  Engine Main Technical Parameter
Bore/stroke 170/215 mm
Cylinder arrangement L/V type, Angle 90°
Cylinder numbers L6 V16 V20
Displacement 29.28 L 78.08 L 97.6 L
Compression ratio 14 : 1(mechanical pump)
15:1 (CR)
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top

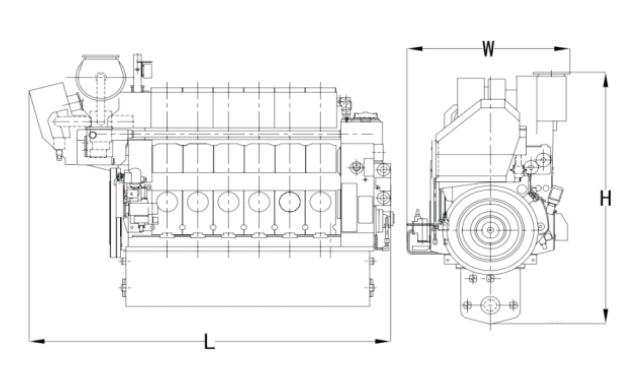

21/31 Series



Dimension and Weight

Diesel engine model Weight(t) Dimension(mm)
L W H
6 L 21/31 16 4185 1880 3113
7 L 21/31 17.5 4540 1880 3267
8 L 21/31 19 4895 1880 3267
9 L 21/31 20.5 5250 1880 3267



  Engine Main Technical Parameter
Bore/stroke 210/310mm
Cylinder arrangement in-line L-type
Cylinder numbers 6、7、8、9
Displacement 10.7 L
Compression ratio 16.5:1
Unit cylinder Rated 215 kW
Maximum explosion pressure 21 Mpa
Rotation direction Clockwise/Counterclockwise
Fuel quality HFO (not more than 700 cSt / 50°C, RMK700);
MDO (DMB) - MGO (DMA, DMZ)
Fuel consumption 192 g/kW·h
Lube oil consumption(MCR) 0.4 - 0.8 g/kW·h



↑Back to top





Marine power station , pump set





TBD234/CHD234CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
TBD234V6 1300 1660 738 631 1205 988 700 372
CHD234V6CR 1300 1660 738 631 1205 988 700 372
TBD234V8 1500 1810 738 801 1263 988 700 427
CHD234V8CR 1500 1810 738 801 1263 988 700 427
TBD234V12 2200 2114 738 1141 1135 1314 700 420
CHD234V12CR 2200 2114 738 1141 1135 1314 700 420



  Engine Main Technical Parameter
Bore/stroke 128/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 6 8 12
Unit cylinder displacement 1.8 L
Compression ratio 15 : 1
Maximum explosion pressure 15 Mpa
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



CHD314V8/CHD314V8CR



Dimension and Weight



Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
CHD314V8 1600 1810 738 801 409 988 700 427
CHD314V8CR 1600 1810 738 801 409 988 700 427



  Engine Main Technical Parameter
Bore/stroke 132/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 8
Unit cylinder displacement 1.9 L
Compression ratio 15 : 1
Maximum explosion pressure 15.5 Mpa
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



TBD234/CHD314 Diesel Generator Set



Generator Model Rated Power/Frequency Diesel Engine Power/Speed Diesel engine type
CCFJ130J 130 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ150J 150 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ170J 170 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ180J 180 kW/60HZ 222kW/1800rpm TBD234V6/CHD234V6CR

CCFJ200J 200 kW/50HZ 249kW/1500rpm TBD234V8/CHD234V8CR
CCFJ200J 200 kW/60HZ 222kW/1800rpm TBD234V6/CHD234V6CR

CCFJ230J 230 kW/50HZ 249kW/1500rpm TBD234V8/CHD234V8CR
CCFJ250J 250 kW/50HZ 273kW/1500rpm TBD234V8/CHD234V8CR
CCFJ250J 250 kW/60HZ 296kW/1800rpm TBD234V8/CHD234V8CR
CCFJ270J 270 kW/60HZ 296kW/1800rpm TBD234V8/CHD234V8CR
CCFJ280J 280 kW/60HZ 303kW/1800rpm TBD234V8/CHD234V8CR

CCFJ300J 300 kW/50HZ 330kW/1500rpm CHD314V8/CHD314V8CR
CCFJ300J 300 kW/60HZ 363kW/1800rpm CHD314V8/CHD314V8CR

CCFJ320J 320 kW/50HZ 373kW/1500rpm TBD234V12/CHD234V12CR
CCFJ320J 320 kW/60HZ 363kW/1800rpm CHD314V8/CHD314V8CR

CCFJ350J 350 kW/50HZ 373kW/1500rpm TBD234V12/CHD234V12CR
CCFJ400J 400 kW/60HZ 444kW/1800rpm TBD234V12/CHD234V12CR

↑Back to top

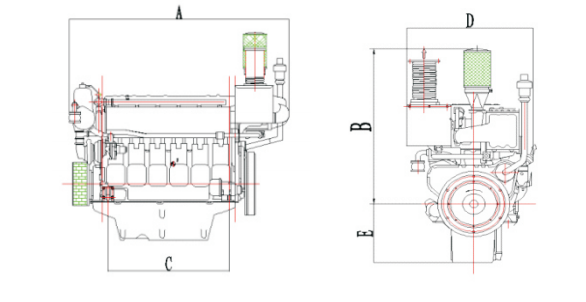

TBD604BL6/CHD604BL6CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
TBD604BL6 2250 2242 980 1233 1349 566
CHD604BL6CR 2250 2242 980 1233 1349 566



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement in-line L-type
Cylinder number 6
Unit cylinder displacement 4.42 L
Compression ratio 14.2 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h
Overall dimension(L×W×H) 2242mm × 1143mm × 1953mm
Dry weight 2550 ± 3% kg



↑Back to top



TBD620/CHD620CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD620L6 3200 2497 2038 240 602 1378
CHD620L6CR 3200 2497 2038 240 602 1378
TBD620V8 3700 2454 2153 220 600 1450
CHD620V8CR 3700 2454 2153 220 600 1450
TBD620V12 5200 2990 2182 220 600 1485
CHD620V12CR 5200 2990 2182 220 600 1485
TBD620V16 6300 3505 2303 220 660 1516
CHD620V16CR 6300 3505 2303 220 660 1516



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement V type , Angle 90°
Cylinder numbers L6 V8 V12 V16
Displacement 26.55 L 35.41 L 53.11 L 70.82 L
Compression ratio 13.5 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



CHD622/CHD622CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD622L6 3750 2513 2026 215 602 1378
CHD622L6CR 3750 2513 2026 215 602 1378
CHD622V16 7880 3493 2165 265 685 1535
CHD622V16CR 7880 3493 2165 265 685 1535
CHD622V20 9550 3857 2221 265 727 1623
CHD622V20CR 9550 3857 2221 265 727 1623



  Engine Main Technical Parameter
Bore/stroke 170/215 mm
Cylinder arrangement L/V type, Angle 90°
Cylinder numbers L6 V16 V20
Displacement 29.28 L 78.08 L 97.6 L
Compression ratio 14 : 1(mechanical pump)
15:1 (CR)
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



16/24 Series Generating Set



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm) Speed(rpm)
L W H
5 L 16/24 9500 4151 1390 2354 1000/1200
6 L 16/24 10500 4516 1390 2354 1000/1200
7 L 16/24 11400 5086 1390 2354 1000
11400 5086 1500 2354 1200
8 L 16/24 12400 5456 1500 2354 1000
12400 5456 1500 2369 1200
9 L 16/24 13100 5731 1500 2369 1000/1200



  Engine Main Technical Parameter
Bore/stroke 160/240 mm
Cylinder arrangement in-line L-type
Cylinder numbers 5、6、7、8、9
Displacement 4.8 L
Compression ratio 16.2 : 1
Maximum explosion pressure 17 Mpa
Rotation direction Clockwise(from flywheel end)
Fuel quality HFO (not more than 700 cSt/50°C, RMK700);
MDO (DMB) - MGO (DMA, DMZ)
Fuel consumption 195g/kW·h（1000r/min）
190g/kW·h（1200r/min）
Lube oil consumption(MCR) 0.4 - 0.8 g/kW·h



↑Back to top



21/31 Series



Dimension and Weight

Diesel engine model Weight(t) Dimension(mm)
L W H
5 L 21/31 22.5 5829 2115 3183
22.5 6607 2115 3183
6 L 21/31 26 6314 2115 3183
26 6962 2115 3183
7 L 21/31 29.5 6639 2115 3289
29.5 7327 2115 3289
8 L 21/31 33 7682 2115 3289
9 L 21/31 36.5 8062 2115 3289



  Engine Main Technical Parameter
Bore/stroke 210/310mm
Cylinder arrangement in-line L-type
Cylinder numbers 5、6、7、8、9
Displacement 10.7 L
Compression ratio 16.5:1
Maximum explosion pressure 21 Mpa
Rotation direction Clockwise(from flywheel end)
Fuel quality HFO (not more than 700 cSt / 50°C, RMK700);
MDO (DMB) - MGO (DMA, DMZ)
Fuel consumption 192g/kW·h（900r/min）
193g/kW·h（1000r/min）
Lube oil consumption(MCR) 0.4 - 0.8 g/kW·h



↑Back to top











Land Generator Set and Pump Set





TBD234/CHD234CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
TBD234V6 1300 1660 738 631 1210 988 700 372
CHD234V6CR 1300 1660 738 631 1210 988 700 372
TBD234V8 1500 1810 738 801 1210 988 700 427
CHD234V8CR 1500 1810 738 801 1210 988 700 427
TBD234V12 2200 2114 738 1141 1135 1314 700 420
CHD234V12CR 2200 2114 738 1141 1135 1314 700 420



  Engine Main Technical Parameter
Bore/stroke 128/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 6 8 12
Unit cylinder displacement 1.8 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.4 g/kW·h



↑Back to top



CHD314V8



Dimension and Weight



Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
CHD314V8 1600 1810 738 801 1263.5 988 700 427



  Engine Main Technical Parameter
Bore/stroke 132/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 8
Unit cylinder displacement 1.92 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.4 g/kW·h



↑Back to top



TBD604BL6



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement in-line L-type
Cylinder number 6
Unit cylinder displacement 4.43 L
Compression ratio 14 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h
Overall dimension(L×W×H) 2242mm × 1143mm × 1953mm
Dry weight 2550 kg



↑Back to top



TBD620/CHD620CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD620L6 3150 2395 2038 240 602 1378
CHD620L6CR 3150 2395 2038 240 602 1378
TBD620V8 3600 2340 2153 220 600 1450
CHD620V8CR 3600 2340 2153 220 600 1450
TBD620V12 5100 2979 2240 220 600 1450
CHD620V12CR 5100 2979 2240 220 600 1450
TBD620V16 6290 3400 2180 220 660 1450
CHD620V16CR 6290 3400 2180 220 660 1450



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement L6、V type , Angle 90°
Cylinder numbers L6 V8 V12 V16
Displacement 26.55 L 35.41 L 53.11 L 70.82 L
Compression ratio 13.5 : 1
Min.no load steady speed(ldle speed) 900 - 1000 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



CHD622/CHD622CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD622V16 7880 3493 2166 265 685 1536
CHD622V16CR 7880 3493 2166 265 685 1536
CHD622V20 9550 3857 2221 265 726.5 1623
CHD622V20CR 9550 3857 2221 265 726.5 1623



  Engine Main Technical Parameter
Bore/stroke 170/215 mm
Cylinder arrangement V type, Angle 90°
Cylinder numbers 16 20
Displacement 78.08 L 97.6 L
Compression ratio 14 : 1(mechanical pump)
15:1 (CR)
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top



16/24 Series Generating Set



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm) Speed(rpm)
L W H
5 L 16/24 9500 4151 1390 2354 1000/1200
6 L 16/24 10500 4516 1390 2354 1000/1200
7 L 16/24 11400 5086 1390 2354 1000
11400 5086 1500 2354 1200
8 L 16/24 12400 5456 1500 2354 1000
12400 5456 1500 2369 1200
9 L 16/24 13100 5731 1500 2369 1000/1200



  Engine Main Technical Parameter
Bore/stroke 160/240 mm
Cylinder arrangement in-line L-type
Cylinder numbers 5、6、7、8、9
Displacement 4.8 L
Compression ratio 16.2 : 1
Maximum explosion pressure 17 Mpa
Rotation direction Clockwise(from flywheel end)
Fuel quality HFO (not more than 700 cSt/50°C, RMK700);
MDO (DMB) - MGO (DMA, DMZ)
Fuel consumption 195g/kW·h（1000r/min）
190g/kW·h（1200r/min）
Lube oil consumption(MCR) 0.4 - 0.8 g/kW·h



↑Back to top



21/31 Series



Dimension and Weight

Diesel engine model Weight(t) Note Dimension(mm)
L W H
5 L 21/31 22.5 Single bearing 5829 2115 3183
22.5 Double bearing 6607 2115 3183
6 L 21/31 26 Single bearing 6314 2115 3183
26 Double bearing 6962 2115 3183
7 L 21/31 29.5 Single bearing 6639 2115 3289
29.5 Double bearing 7327 2115 3289
8 L 21/31 33 Double bearing 7682 2115 3289
9 L 21/31 36.5 Double bearing 8062 2115 3289



  Engine Main Technical Parameter
Bore/stroke 210/310mm
Cylinder arrangement in-line L-type
Cylinder numbers 5、6、7、8、9
Displacement 10.7 L
Compression ratio 16.5:1
Maximum explosion pressure 21 Mpa
Rotation direction Clockwise(from flywheel end)
Fuel quality HFO (not more than 700 cSt / 50°C, RMK700);
MDO (DMB) - MGO (DMA, DMZ)
Fuel consumption 192g/kW·h（900r/min）
193g/kW·h（1000r/min）
Lube oil consumption(MCR) 0.4 - 0.8 g/kW·h



↑Back to top











Engineering Machinery Diesel Generator Set





TBD234/CHD234CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
TBD234V6 1300 1660 738 631 1210 988 700 372
CHD234V6CR 1300 1660 738 631 1210 988 700 372
TBD234V8 1500 1810 738 801 1210 988 700 427
CHD234V8CR 1500 1810 738 801 1210 988 700 427
TBD234V12 2200 2114 738 1141 1135 1314 700 420
CHD234V12CR 2200 2114 738 1141 1135 1314 700 420



  Engine Main Technical Parameter
Bore/stroke 128/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 6 8 12
Unit cylinder displacement 1.8 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.4 g/kW·h



↑Back to top



CHD314V8



Dimension and Weight



Diesel engine model Weight(kg) Dimension(mm)
A B C D E F G
CHD314V8 1600 1810 738 801 1263.5 988 700 427



  Engine Main Technical Parameter
Bore/stroke 132/140 mm
Cylinder arrangement V type , Angle 60°
Cylinder number 8
Unit cylinder displacement 1.92 L
Compression ratio 15 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 115 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.4 g/kW·h



↑Back to top



TBD604BL6



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement in-line L-type
Cylinder number 6
Unit cylinder displacement 4.43 L
Compression ratio 14 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h
Overall dimension(L×W×H) 2720mm × 1505mm × 2186mm
Dry weight 2550 kg



↑Back to top



TBD620/CHD620CR



Dimension and Weight

Diesel engine model Weight(kg) Dimension(mm)
A B C D E
CHD620L6 3150 2395 2038 240 602 1378
CHD620L6CR 3150 2395 2038 240 602 1378
TBD620V8 3600 2340 2153 220 600 1450
CHD620V8CR 3600 2340 2153 220 600 1450
TBD620V12 5100 2979 2240 220 600 1450
CHD620V12CR 5100 2979 2240 220 600 1450
TBD620V16 6290 3400 2180 220 660 1450
CHD620V16CR 6290 3400 2180 220 660 1450



  Engine Main Technical Parameter
Bore/stroke 170/195 mm
Cylinder arrangement L6、V type , Angle 90°
Cylinder numbers L6 V8 V12 V16
Displacement 26.55 L 35.41 L 53.11 L 70.82 L
Compression ratio 13.5 : 1
Min.no load steady speed(ldle speed) 600 - 750 r/min
Ignition speed(20°C） 150 r/min
Rotation direction Anti-clockwise rotation(from flywheel end)
Lube oil consumption ≤1.3 g/kW·h



↑Back to top









Diesel Generating Set





Generator Model Rated Power/Frequency Diesel Engine Power/Speed Diesel engine type
CCFJ130J 130 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ150J 150 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ170J 170 kW/50HZ 186kW/1500rpm TBD234V6/CHD234V6CR
CCFJ180J 180 kW/60HZ 222kW/1800rpm TBD234V6/CHD234V6CR

CCFJ200J 200 kW/50HZ 249kW/1500rpm TBD234V8/CHD234V8CR
CCFJ200J 200 kW/60HZ 222kW/1800rpm TBD234V6/CHD234V6CR

CCFJ230J 230 kW/50HZ 249kW/1500rpm TBD234V8/CHD234V8CR

CCFJ250J 250 kW/50HZ 273kW/1500rpm TBD234V8/CHD234V8CR
CCFJ250J 250 kW/60HZ 296kW/1800rpm TBD234V8/CHD234V8CR

CCFJ270J 270 kW/60HZ 296kW/1800rpm TBD234V8/CHD234V8CR
CCFJ280J 280 kW/60HZ 303kW/1800rpm TBD234V8/CHD234V8CR

CCFJ300J 300 kW/50HZ 330kW/1500rpm CHD314V8/CHD314V8CR
CCFJ300J 300 kW/60HZ 363kW/1800rpm CHD314V8/CHD314V8CR

CCFJ320J 320 kW/50HZ 373kW/1500rpm TBD234V12/CHD234V12CR
CCFJ320J 320 kW/60HZ 363kW/1800rpm CHD314V8/CHD314V8CR

CCFJ330J 330 kW/60HZ 372kW/1200rpm TBD604BL6/CHD604BL6CR

CCFJ350J 350 kW/50HZ 373kW/1500rpm TBD234V12/CHD234V12CR
CCFJ350J 350 kW/50HZ 400kW/1500rpm TBD604BL6/CHD604BL6CR

CCFJ400J 400 kW/60HZ 444kW/1800rpm TBD234V12/CHD234V12CR
CCFJ400J 400 kW/50HZ 450kW/1500rpm TBD604BL6/CHD604BL6CR

CCFJ420J 420 kW/50HZ 450kW/1000rpm 5 L 16/24
CCFJ450J 450 kW/50HZ 500kW/1500rpm TBD604BL6/CHD604BL6CR
CCFJ470J 470 kW/60HZ 500kW/1200rpm 5 L 16/24
CCFJ480J 480 kW/50HZ 530kW/1500rpm TBD604BL6/CHD604BL6CR

CCFJ500J 500 kW/50HZ 550kW/1500rpm TBD604BL6/CHD604BL6CR
CCFJ500J 500 kW/60HZ 550kW/1800rpm TBD604BL6/CHD604BL6CR

CCFJ530J 530 kW/60HZ 580kW/1800rpm TBD604BL6/CHD604BL6CR
CCFJ535J 535 kW/50HZ 570kW/1000rpm 6 L 16/24
CCFJ600J 600 kW/50HZ 650kW/1500rpm CHD620L6/CHD620L6CR
CCFJ620J 620 kW/60HZ 660kW/1200rpm 6 L 16/24
CCFJ625J 625 kW/50HZ 665kW/1000rpm 7 L 16/24
CCFJ640J 640 kW/60HZ 690kW/1800rpm CHD620L6/CHD620L8CR
CCFJ714J 714 kW/50HZ 760kW/1000rpm 8L 16/24
CCFJ720J 720 kW/60HZ 770kW/1200rpm 7 L 16/24
CCFJ750J 750 kW/50HZ 834kW/1500rpm TBD620V8/CHD620V8CR
CCFJ770J 770 kW/50HZ 834kW/1500rpm TBD620V8
CCFJ800J 800 kW/50HZ 880kW/1500rpm TBD620V8/CHD620V8CR
CCFJ803J 803 kW/50HZ 855kW/1000rpm 9L 16/24
CCFJ827J 827 kW/60HZ 880kW/1200rpm 8L 16/24
CCFJ850J 850 kW/60HZ 910kW/1800rpm TBD620V8/CHD620V8CR
CCFJ930J 930 kW/60HZ 990kW/1200rpm 9L 16/24

CCFJ940J 940 kW/50HZ 1000kW/1000rpm 5 L 21/31
CCFJ940J 940 kW/60HZ 1000kW/900rpm 5 L 21/31

CCFJ1000J 1000 kW/50HZ 1251kW/1500rpm TBD620V12/CHD620V12CR
CCFJ1100J 1100 kW/50HZ 1251kW/1500rpm TBD620V12/CHD620V12CR

CCFJ1200J 1200 kW/50HZ 1320kW/1500rpm TBD620V12/CHD620V12CR
CCFJ1200J 1200 kW/50HZ 1311kW/1500rpm TBD620V12
CCFJ1200J 1200 kW/60HZ 1364kW/1800rpm TBD620V12/CHD620V12CR

CCFJ1240J 1240 kW/50HZ 1320kW/1000rpm 6 L 21/31
CCFJ1240J 1240 kW/60HZ 1320kW/900rpm 6 L 21/31

CCFJ1440J 1440 kW/50HZ 1540kW/1000rpm 7 L 21/31
CCFJ1440J 1440 kW/60HZ 1540kW/900rpm 7 L 21/31

CCFJ1500J 1500 kW/50HZ 1668kW/1500rpm TBD620V16/CHD620V16CR
CCFJ1600J 1600 kW/50HZ 1760kW/1500rpm TBD620V16/CHD620V16CR

CCFJ1650J 1650 kW/50HZ 1760kW/1000rpm 8 L 21/31
CCFJ1650J 1650 kW/60HZ 1760kW/900rpm 8 L 21/31

CCFJ1700J 1700 kW/60HZ 1819kW/1800rpm TBD620V16/CHD620V16CR

CCFJ1860J 1860 kW/50HZ 1980kW/1000rpm 9 L 21/31
CCFJ1860J 1860 kW/60HZ 1980kW/900rpm 9 L 21/31

CCFJ2000J 2000 kW/50HZ 2240kW/1500rpm CHD622V16/CHD622V16CR
CCFJ2200J 2200 kW/60HZ 2320kW/1800rpm CHD622V16/CHD622V16CR

CCFJ2500J 2500 kW/50HZ 2800kW/1500rpm CHD622V20/CHD622V20CR
CCFJ2500J 2500 kW/60HZ 2900kW/1800rpm CHD622V20/CHD622V20CR

CCFJ2550J 2550 kW/50HZ 2800kW/1500rpm CHD622V20
CCFJ2800J 2800 kW/60HZ 3000kW/1800rpm CHD622V20CR
CCFJ3000J 3000 kW/60HZ 3200kW/1800rpm CHD622V20CR



↑Back to top











Generating Set Power





Generator Model The engine Type The engine Power(kW) Rated Frequency(Hz)
150GFD TBD234V6 191 50
200GFD 227 60
250GFD TBD234V8 281 50
270GFD 303 60
400GFD TBD234V12 448 50
400GFD 455 60
300GFD CHD314V8 335 50
330GFD 370 60
500GFD TBD604BL6 564 50
550GFD 600 60
600GFD CHD620L6 650 50
640GFD 690 60
800GFD TBD620V8 880 50
880GFD 1016 60
1200GFD TBD620V12 1320 50
1300GFD 1440 60
1600GFD TBD620V16 1760 50
1750GFD 1920 60
1800GFD CHD622V16 1980 50
2000GFD 2320 60
2300GFD CHD622V20 2540 50
2400GFD 2600 60
2650GFD CHD622V20CR 2900 50
3000GFD 3200 60



↑Back to top









Diesel Engine Pump Set





Pump set Type Overall Size(mm) Weight(kg) Engine Type
CB3.3/306 2510×1120×1942 3240 TBD234V6
CB5.8/219 2645×1130×2000 2910 TBD234V6
CB4.4/350 2510×1120×1942 3240 TBD234V6
CB7.9/206 2815×1130×2000 3230 TBD234V8
CB9.0/219 2815×1130×2000 3230 TBD234V8
CB4.4/285 3350×1300×2150 4200 CHD314V8
CB9.5/306 5300×1550×2150 4480 TBD234V12
CB5.9/561 4750×1550×2255 7350 TBD604BL6
CB7.3/485 4750×1550×2255 7370 TBD604BL6
CB8.4/520 5850×1450×2600 8250 CHD620L6
CB6.2/800 4495×1850×2525 8785 TBD620V8
CB7.5/880 4495×1850×2525 8785 TBD620V8
CB6.5/1002 5900×1450×2550 12500 TBD620V8
CB6.3/1253 6500×1450×2600 14200 TBD620V12
CB8.4/1088 6500×1450×2600 14200 TBD620V12
CB9.6/1416 7000×1450×2650 15400 TBD620V16



↑Back to top







All specifications are approximate. Specifications are subject to change without notice.

HND engine | HND generator set

HND | Komatsu excavator | Hitachi excavator

XCMG wheel excavator | XCMG track excavator | XCMG mining excavator

Terex dump truck | XCMG mining dump truck | Sany mining dump truck

Dump Truck

WUHAN MACHINE EQUIPMENT CO LTD © 2024
