| Items |
Parameters |
| Model |

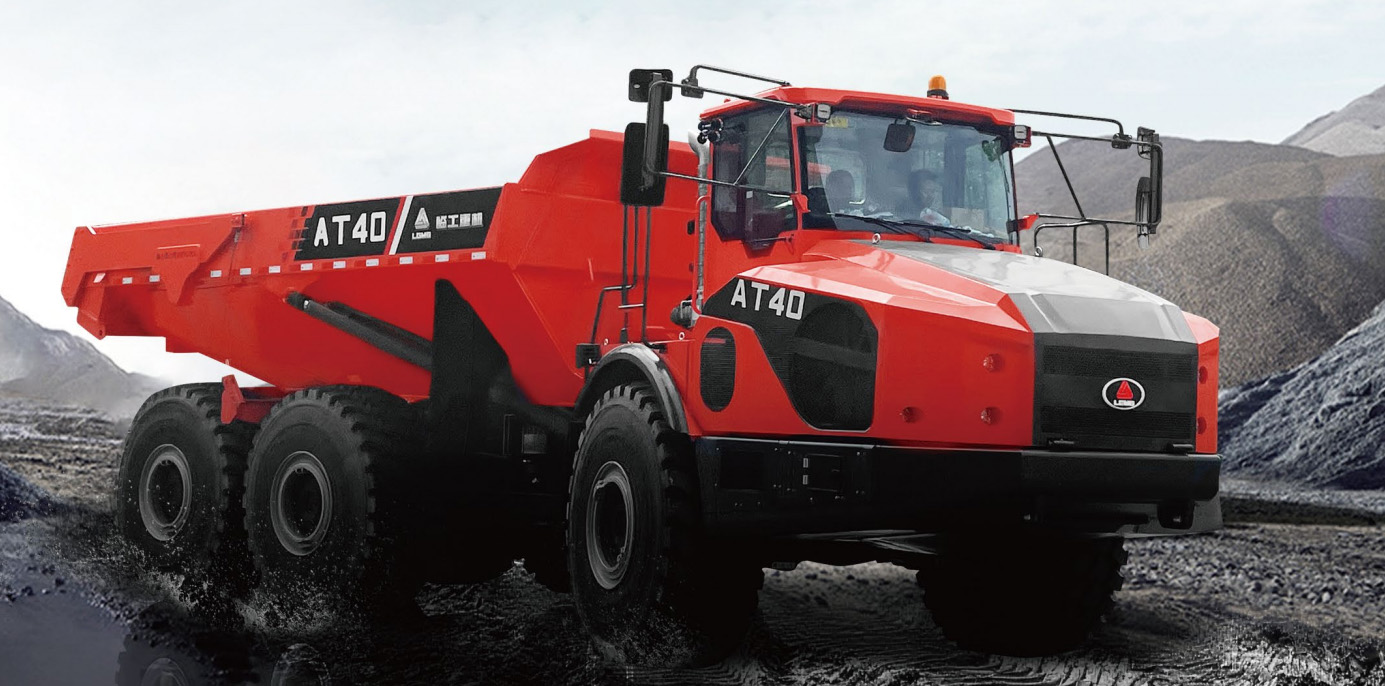

AT40
|
| Curb weight (kg) |
34000 |
| Total mass (kg) |
74000 |
| Maximum speed (km/h) |
60(40 only) |
| Maximum gradeability (%) |
45 |
| engine |
WP14T |
| Engine power (kW) |
412 |
| gearbox |
7-speed automatic transmission |
| Transfer case |
ZQC2300-10, with inter-shaft differential |
| axle |
30T axle with automatic differential lock |
| Tire Model |
29.5R25 |
| Front suspension |
Hydro-pneumatic suspension |
| Rear suspension |
Rubber suspension + balance beam |
| Service Braking Type |
Oil-cooled wet multi-disc hydraulic brake |
| Parking brake system |
Normally closed spring disc brake |
| Retarded braking type |
Engine cylinder braking + service brake |
| Steering system |
Linear full hydraulic steering |
| Lifting system |
Load-sensitive hydraulic system |
| driver's cab |
Mid-mounted cab + floating seats |
| fuel tank |
530l |
| Overall vehicle dimensions (ength " width" height mm) |
11500*3490(REARVIWE MIRROR 4177)*3870 |
| Cargo box stacking volume (m^3) |
25(with railgate)/24 |
| frame |
Box-type welded structure+cast hinge frame |
