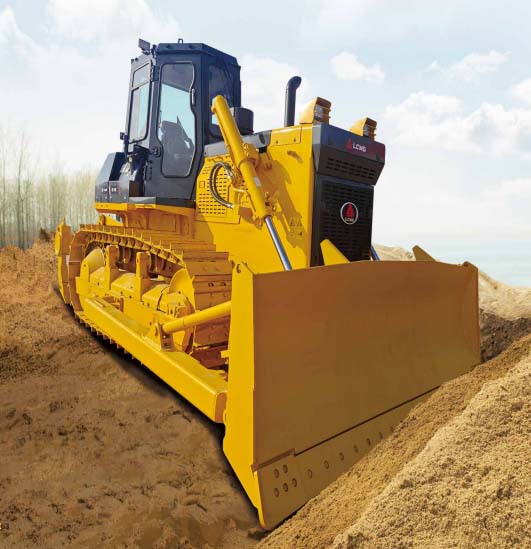

LGMG Bulldozer D16

D16-China-Lgmg-Bulldozer

Model	D16
Length × Width × Height (mm) (excluding the ripper)	4990×3440×3110
Operating weight (T) (excluding the ripper)	16.4
Engine model	WD10G178E25
Power (kw/r/min)	131/1850
Maximum torque (N.m/rpm)	830/1000-1200
Minimum turning radius (m)	3.1
Blade capacity (m3)	直Straight:4.5 角angled:4.3
Blade lifting height (mm)	1095
Blade depth (mm)	540
Maximum blade tilt (mm)	400

All specifications are approximate. Specifications are subject to change without notice.
