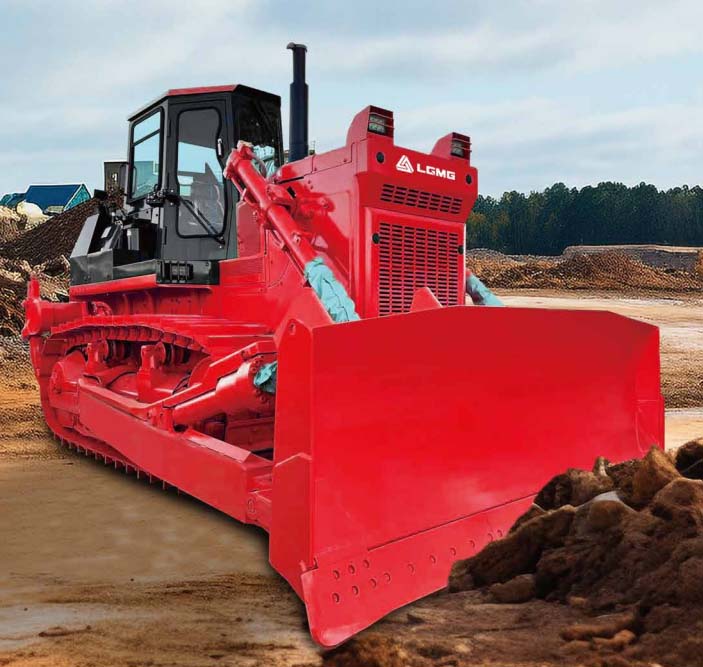

LGMG Bulldozer D22

D22-China-Lgmg-Bulldozer

Model	D22
Length × Width × Height (mm) (excluding the ripper)	539037353350
Operating weight (T) (excluding the ripper)	23.5
Engine model	NT855-C280S10
Power (kw/r/min)	175/1800
Maximum torque (N.m/rpm)	1085/1300
Minimum turning radius (m)	3.3
Blade capacity (m3)	直Straight6.4 角angled4.7 U（U-shaped）7.5 半U（semi-U）7.0
Blade lifting height (mm)	1210
Blade depth (mm)	540
Maximum blade tilt (mm)	直Straight>735 角angled>500 半U semi-U-shaped>755

All specifications are approximate. Specifications are subject to change without notice.
