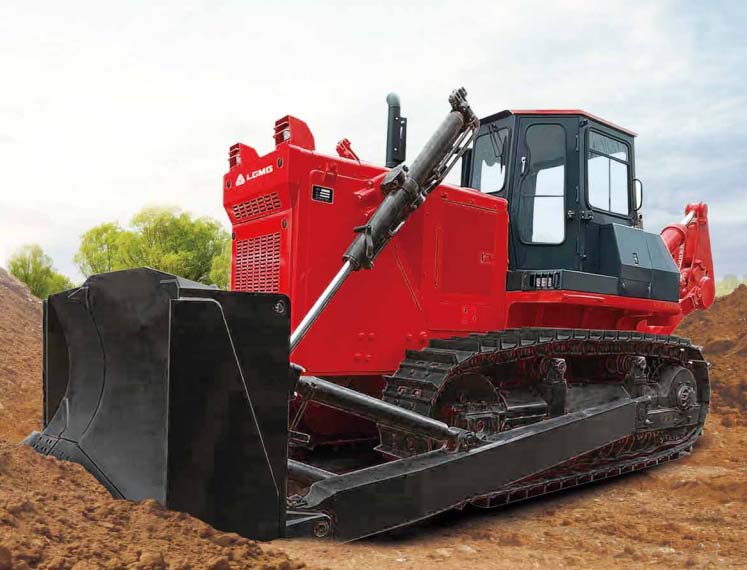

LGMG Bulldozer D32W

D32W-China-Lgmg-Bulldozer

Model	D32W
Length × Width × Height (mm) (excluding the ripper)	653541503515
Operating weight (T) (excluding the ripper)	37.2
Engine model	NTA855-C360S10
Power (kw/r/min)	257/2000
Maximum torque (N.m/rpm)	1509/1400
Minimum turning radius (m)	3.9
Blade capacity (m3)	直Straight:4150×1592 半Usemi-U-shaped:4150×1712 角angled:5000×1142U:4440×1740
Blade lifting height (mm)	1560/1560/1703/1560
Blade depth (mm)	560/560/630/560
Maximum blade tilt (mm)	直1000 角500 半U1000 U1000

All specifications are approximate. Specifications are subject to change without notice.
