LGMG Truck

H.S.8704 1090 00



LGMG Truck - MT106,CMT106,CMT136,CMTE106,MT106M,RT100,RTH100







Wide Body Dump Truck

Side Cabin

Model Rated Power (hp) Payload (t) Curb Weight Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
MT50 340 35 19.5 54.5 12.00R20 50/50
MT60 430 50 26 76 14.00-25/14.00R25 41/38
MT86H 460 60 31.7 91.7 4.00-25/14.00R25 45/45
MT96H 530 65 33.1 98.1 16.00-25/16.00R25 49/35
MT106 530 70 35.6 105.6 16.00-25/16.00R25 47/34

Central Cabin

Model Rated Power (hp) Payload (t) Curb Weight Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
CMT66A 460 40 26 66 F:23.5R25; R:750/65R25 61/42
CMT66 460 50 28.5 78.5 14.00-25/14.00R2 44/44
CMT96 530 65 34.8 99.8 16.00-25/16.00R25 48/44
CMT106 530 70 35.28 105.28 16.00-25/16.00R25 50/50
CMT136 770 90 46.5 136.5 480/95R29-E3 35/35

Electric Mining Truck

High relablity: dual power supply configuration, dual motor system, dual braking.

Model Engine Payload (t) Curb Weight Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
CMTE86 朗高双电机210/210kw 60 36.6 96.6 4.00-25/14.00R25 35/35
CMTE106 高双电机210/210kw 70 41.6 111.6 16.00-25/16.00R25 35/35

Mining Trucks

Fuel series

Model Curb Weight(kg) Total Weight (t) Rated Load (t) tyre Maiximum speed(km/h)
MT95H 35000 105000 70 16.00R25 ≥40
MT106H 38000 118000 80 16.00R25 ≥40
MT105 34000 114000 80 16.00R25 ≥40
RT136 46000 136000 90 18.00R25 ≥47
MT126H 46500 136500 90 480/95R29 ≥35
MT106HF 36400 116400 80 16.00R25 ≥40
MT96LF 34000 104000 70 16.00R25 ≥40
MT86HF 31100 91100 60 14.00R25 ≥40
MT60DF 26200 76200 50 14.00R25 ≥40

New energy series

Model Curb Weight(kg) Total Weight (t) Rated Load (t) tyre Maiximum speed(km/h)
MTE106H 41500 115000 70 16.00R25 ≥35
CMTE106H 41500 115000 70 16.00R25 ≥35
MTE86H 36600 96600 60 14.00R25 ≥35



Mining Excavator

Model Total Weight (t) Bucket capacity(m³) Rated power(kw)
ME105 102000 6.5-8 570.5
ME106 102000 6.5-8 570.5
ME109 102000 6.5-8 570.5
ME130 125000 7.5-10 567
ME136 126500 7.5-10 567





Rigid Truck

Model Rated Power (hp) Payload (t) Curb Weight(t) Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
RT100 770 100 46 146 18.00R25/480/95R29 46/46
RTH100 775 100 48 148 18.00R25/480/95R29 45/45
RTH136-2 - 93 53 146 480/95R29 30







sprinkle

Advantage: The special sprinkler truck for mining trucks has a larger water tank volume, which can achieve a larger spraying distance and improve operation efficiency while meeting reliability



Model Curb Weight(t) Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
MS25 16.5 41.5 12.00R20 50/50
MS40/50 28.7 78.7 14.00-25/14.00R25 45/45
MS50F 31 81 14.00R25 ≥40
MS40F 25.12 65.12 14.00R25 ≥40







Coal Transportation Truck

Advantage: The container volume is large, which is used for the transfer of low-density materials, and is suitable for the short-distance coal transfer from the pit to the stockpile



Model Rated Power (hp) Payload (t) Curb Weight Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
MT86M 460 60 34.5 94.5 14.00-25/14.00R25 40/40
MT106M 530 70 35 105 16.00-25/16.00R25 40/40

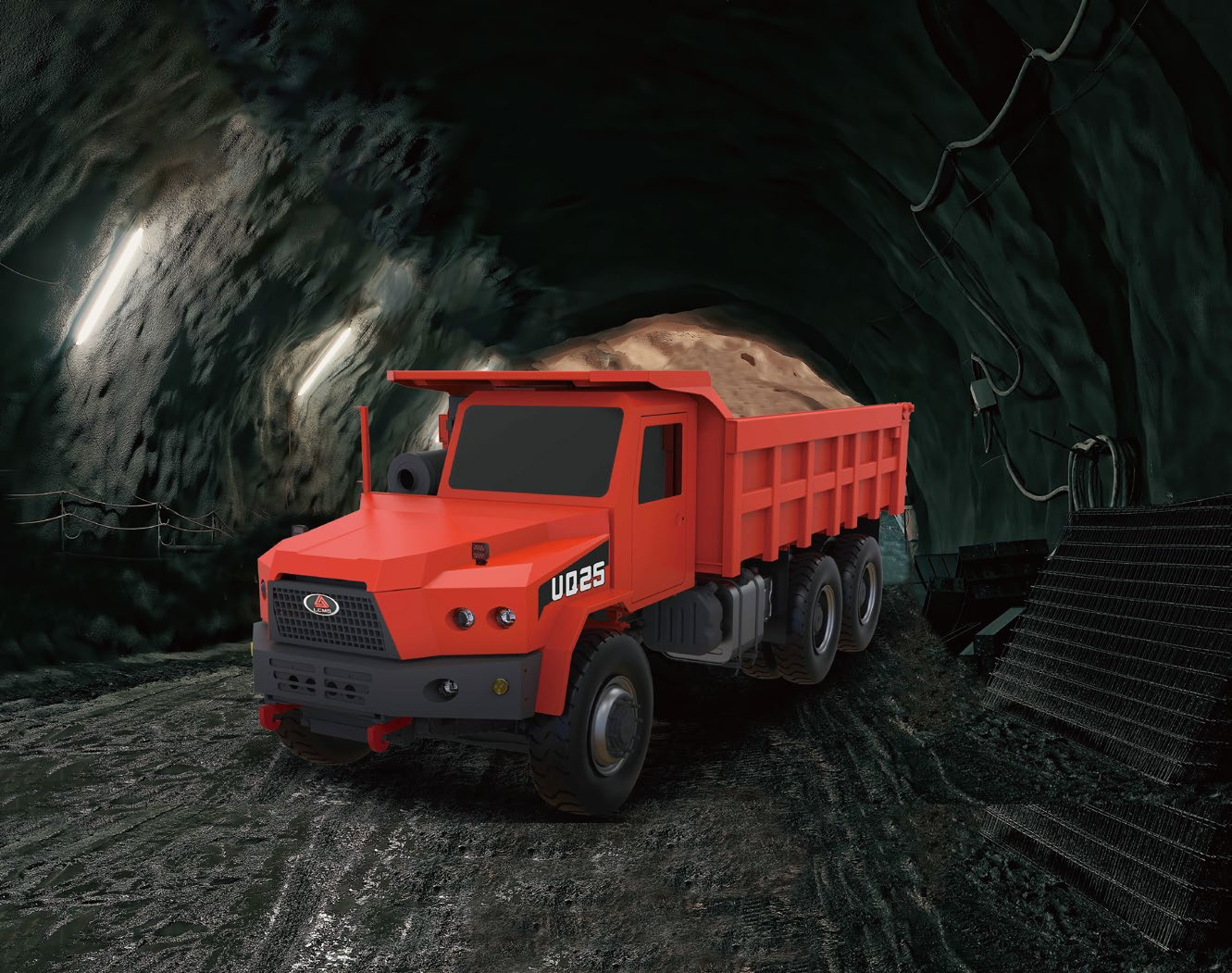

Undergroud Mining Truck

Advantage: Corrosion resistance, high temperature resistance, low noise, low pollution, small turning radius, low unloading height, flexible operation



Model Rated Power (hp) Payload (t) Curb Weight Total Weight (t) Tire Spec MaxSpeed Unladen/Laden (km/h)
UQ25 350 25 13.8 38.8 12.00R20 40/40
UT350 340 35 20 55 12.00R2 55/51

All specifications are approximate. Specifications are subject to change without notice.
