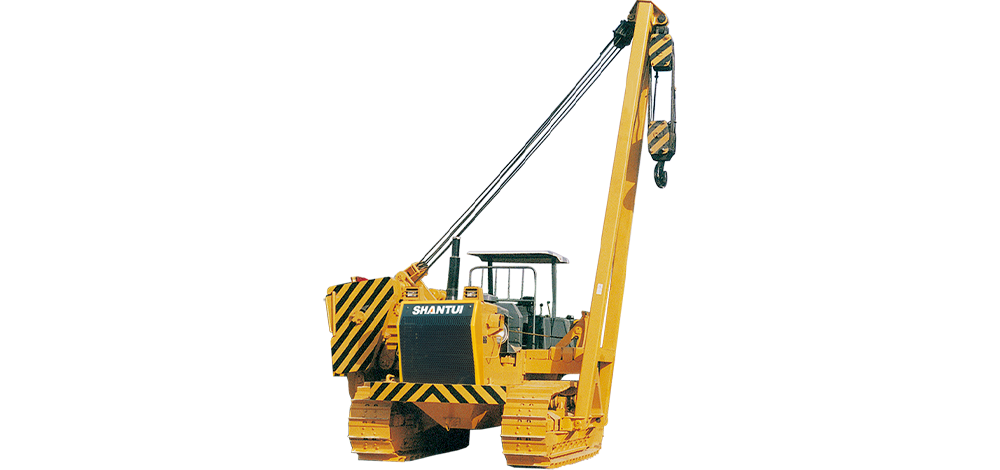

SHANTUI SP45Y

H.S.8429 5100 00

SP45Y - SHANTUI SP45Y - Pipelayer SP45Y

Model	SP45Y
Overall weight(kg)	34000
Rated power/rated speed(kW/rpm)	179/2000
Maximum lifting weight(kg)	45000
External dimensions(mm)	476028603300
Engine model	Cummins NT855-C280S10
Track center distance(mm)	2250
Track shoe width(mm)	610
Ground contact length(mm)	3050
Fuel tank capacity(L)	440
Working device	Suspension rod
Emissions (Indicated as per international standards)	EU stage I

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details
SHANTUI SP45Y Pipelayer
