SHANTUI SP70Y

H.S.8429 5100 00

SP70Y - SHANTUI SP70Y - Pipelayer SP70Y

Model	SP70Y
Overall weight(kg)	50000
Rated power/rated speed(kW/rpm)	257/2000
Maximum lifting weight(kg)	70000
External dimensions(mm)	5560×3140×3600
Engine model	Cummins QSNT-C345/NTA855-C360
Track center distance(mm)	2380
Track shoe width(mm)	760
Ground contact length(mm)	3620
Fuel tank capacity(L)	600
Working device	Suspension rod
Emissions (Indicated as per international standards)	EU stageⅢ/EU stage I

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details

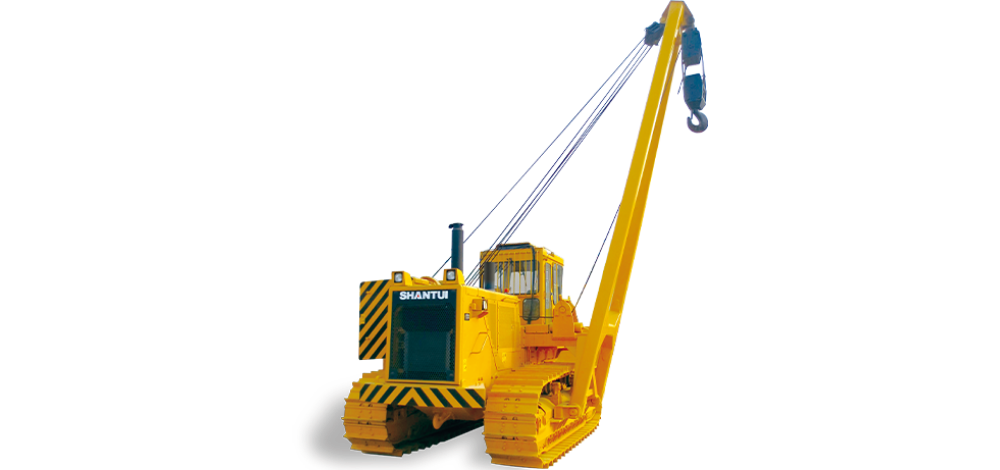

SHANTUI SP70Y Pipelayer
