SHANTUI SP90Y

H.S.8429 5100 00

SP90Y - SHANTUI SP90Y - Pipelayer SP90Y

Model	SP90Y
Overall weight(kg)	60000
Rated power/rated speed(kW/rpm)	257/2000
Maximum lifting weight(kg)	90000
External dimensions(mm)	5650×3350×3600
Engine model	Cummins QSNT-C345/NTA855-C360
Track center distance(mm)	2490
Track shoe width(mm)	860
Ground contact length(mm)	3620
Fuel tank capacity(L)	600
Working device	Suspension rod
Emissions (Indicated as per international standards)	EU stageⅢ/EU stage I

All specifications are approximate. Specifications are subject to change without notice.

Inquire by Email
For more details

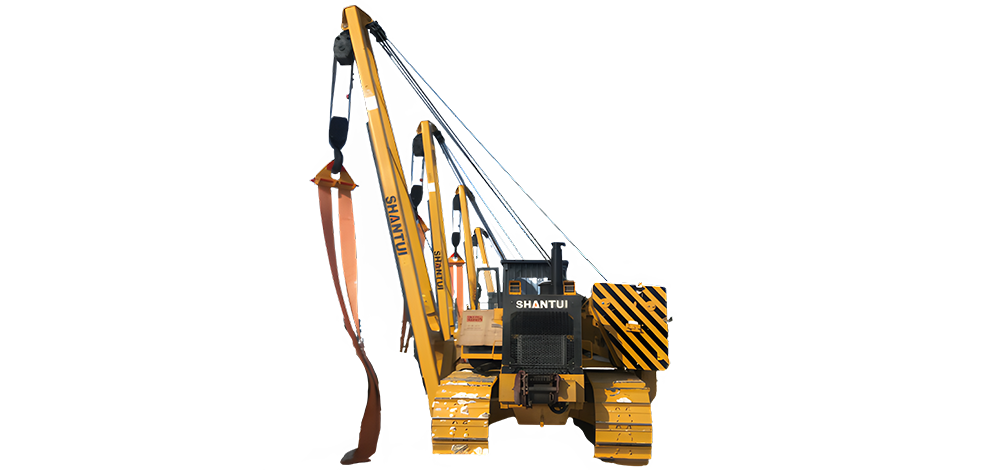

SHANTUI SP90Y Pipelayer
