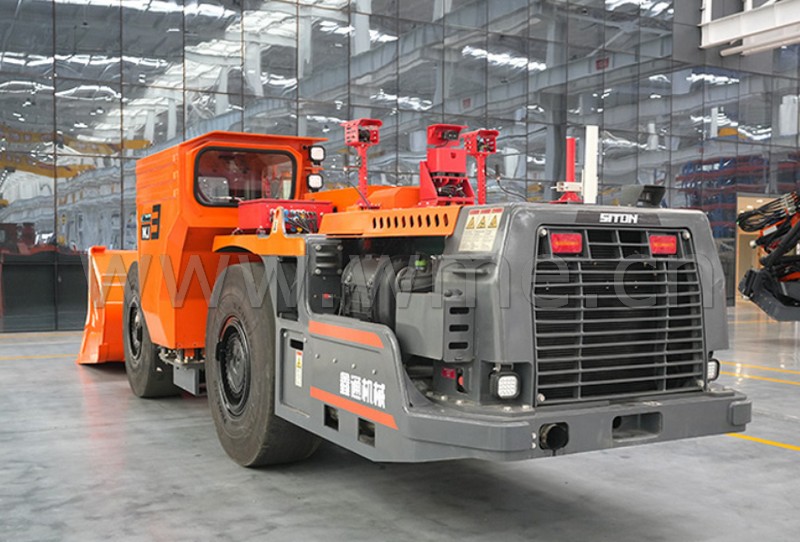

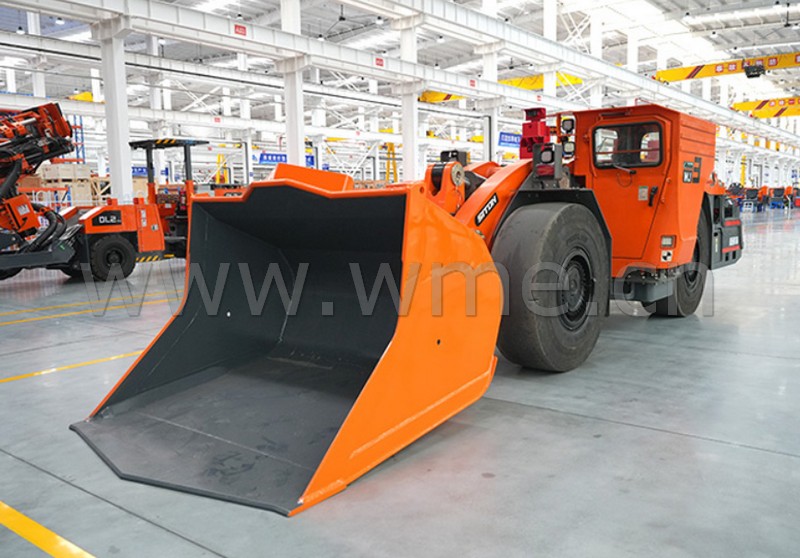

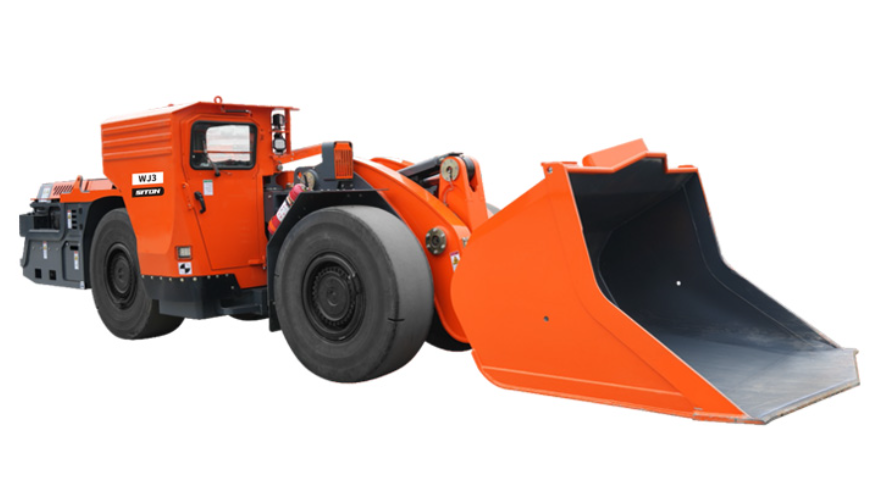

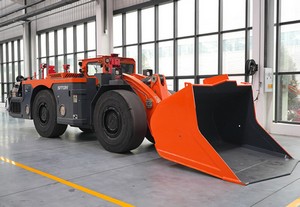

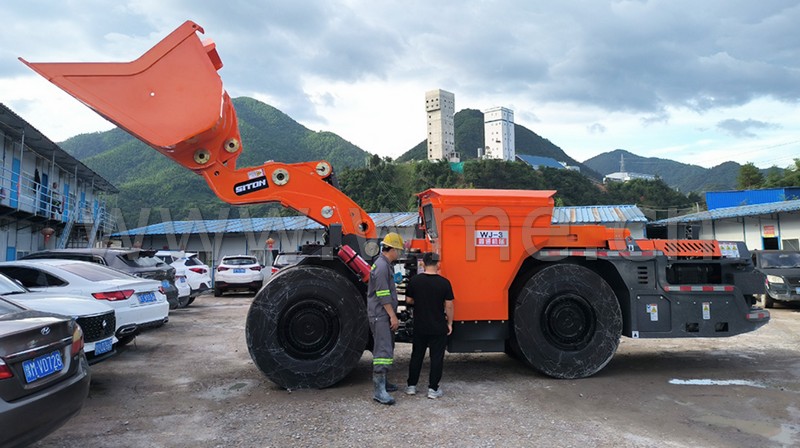

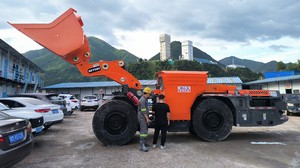

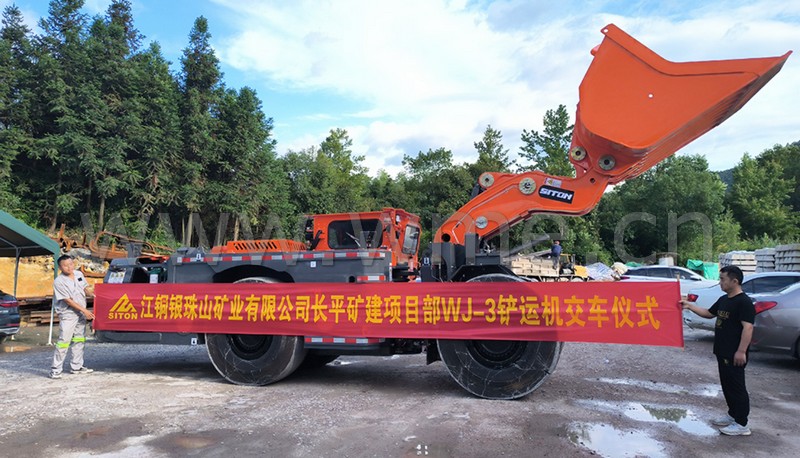

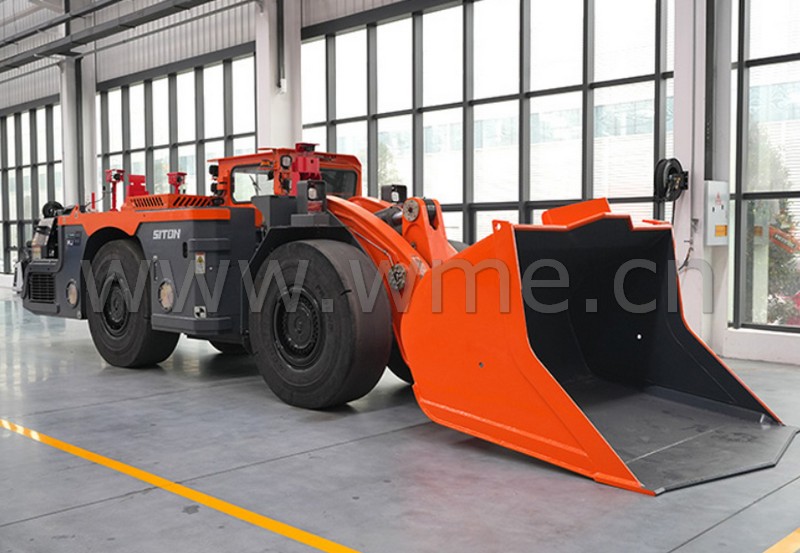

SITON WJ-3





WJ-3 - SITON WJ-3 - China SITON Mine Loading - Transporting Vehicle



Model WJ-3
Overall Dimensions 9100×2300×2350mm
Rated Load Capacity 7000kg
Maximum Digging Force 115kN
Maximum Tractive Force 165kN
Standard Bucket Capacity 3.5m³
Self - weight 19500kg
Diesel Engine VOLVO TAD850VE
Rated Power 160kW @ 2200rpm
Rated Torque 1060Nm @ 1000 - 1400rpm
Number of Cylinders 6 - cylinder
Displacement 7.7L
Fuel Consumption at 50% Load 20L/h
Standard Fuel Tank Capacity 200L



SITON Mine Loading and
Transporting Vehicle

WJ-3
WJ-4
WJ-5
WJ-6

UK-8
UK-10
UK-12
UK-20
UK-30
UK-45

ZWY-60/30L
ZWY-80/37L
ZWY-80/45L
ZWY-100/45L
ZWY-120/55L
ZWY-150/55L





SITON WJ-3 - China mining auxiliary vehicles
SITON WJ-3 		SITON WJ-3 - China mining auxiliary vehicles
SITON WJ-3 		SITON WJ-3 - China mining auxiliary vehicles
SITON WJ-3





SITON WJ-3 - China mining auxiliary vehicles
SITON WJ-3 		SITON WJ-3 - China mining auxiliary vehicles
SITON WJ-3





All specifications are approximate. Specifications are subject to change without notice.
