| Model |
QJS16CZK5 |
| Unit name |

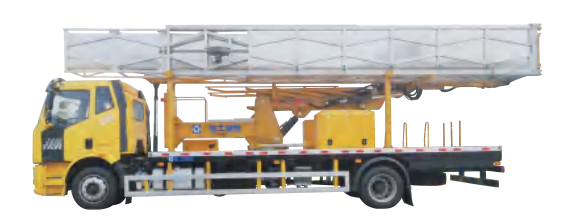

14/16 - meter Truss - type Bridge Inspection Vehicle |
| Unit announcement number |
XGS5180JQJZ6 |
| Overall dimensions(mm) |
11100 |
| Overall width of unit (mm) |
2550 |
| Overall height of unit (mm) |
3995 |
| Total weight of unit (kg) |
18000 |
| Max. horizontal working range (m) |
14/16 |
| Max. crossing height (m) |
3.5 |
| Max. overbridging of sidewalk (m) |
2.4 |
| Max. lowering depth (m) |
6.5 |
| Max. crossing box girder (m) |
5.3 |
| Working platform load (kg) |
600 |
| Working platform maximum load (Kg) |
300 |
| Overall dimensions of working platform (m) |
1.04 |
| Rotation range of 1st slewing organization (°) |
0 - 90 |
| Rotation range of 2nd slewing organization (°) |
0 - 180 |
| Walking speed (m/min) |
≥13 |
| Chassis model |
Sinotruk ZZ1187N501GF1 |
| Engine model |
MC07.27 - 60 (National VI) |
| Max. net power of engine (Ps (kW)) |
270Ps (199kW) |
