| Model |
QJS18FZK7 |
| Unit name |

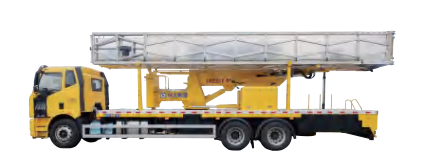

18 - meter Truss - type Bridge Inspection Vehicle |
| Unit announcement number |
XGS5251JQJZ6 |
| Overall dimensions(mm) |
12572 |
| Overall width of unit (mm) |
2550 |
| Overall height of unit (mm) |
3995 |
| Total weight of unit (kg) |
25000 |
| Max. horizontal working range (m) |
18 |
| Max. crossing height (m) |
3.6 |
| Max. overbridging of sidewalk (m) |
2.6 |
| Max. lowering depth (m) |
7.8 |
| Max. crossing box girder (m) |
6.6 |
| Working platform load (kg) |
800 |
| Working platform maximum load (Kg) |
400 |
| Overall dimensions of working platform (m) |
1.02 |
| Rotation range of 1st slewing organization (°) |
0 - 90 |
| Rotation range of 2nd slewing organization (°) |
0 - 180 |
| Walking speed (m/min) |
≥13 |
| Chassis model |
Sinotruk ZZ1257N464G1 (National VI) |
| Engine model |
MC07.31 - 60 |
| Max. net power of engine (Ps (kW)) |
310Ps (225kW) |
