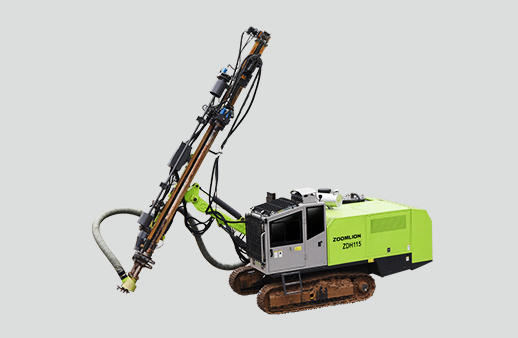

ZOOMLION ZDH115



ZDH115 - ZOOMLION ZDH115 - ZOOMLION ZDH115 Crawler Crane

Model ZDH115
Total Machine Weight 15000kg
Hole Diameter Range φ90-130mm
Rod Storage Capacity 7+1/6+1pcs
Drill Pipe Specification φ68×3000/φ76×4000mm
Engine Model YC6L310-T3
Rated Power 228/2200kW/rpm
Maximum Travel Speed 3km/h
Gradeability 30°
Crawler Frame Swing Angle ±10°
Ground Clearance 420mm
Max Working Torque 3000N.m
Rotation Speed 105rpm
Air Displacement 15m3/min
Max Working Pressure 17bar
Max Pull Force 20kN
Feed Stroke 3600/4500mm
Feed Compensation Length 1200mm



Zoomlion Dth Drill Rig

ZDH115
ZDH115A
ZDH138

All specifications are approximate. Specifications are subject to change without notice.
