ZOOMLION ZDH115A

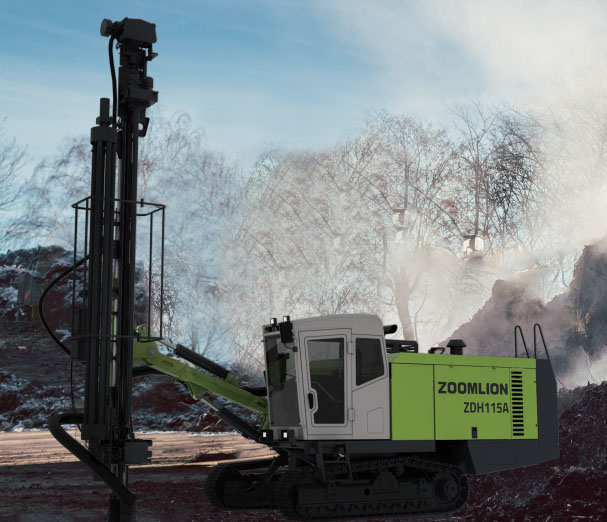

ZDH115A - ZOOMLION ZDH115A - ZOOMLION ZDH115A Crawler Crane

Model ZDH115A
Hole Diameter Range φ90-140mm
Rod Storage Capacity 6+1pcs
Drill Pipe Specification φ76×4000mm
Engine Model YC6L310-T300
Rated Power 228/kW
Maximum Travel Speed 3km/h
Gradeability 30°
Ground Clearance >=400mm
Max Working Torque 3000N.m
Max Working Pressure 17bar
Max Pull Force 31kN
Feed Stroke 4500mm
Feed Compensation 1200mm



Zoomlion Dth Drill Rig

ZDH115
ZDH115A
ZDH138

All specifications are approximate. Specifications are subject to change without notice.
