ZOOMLION ZDH138

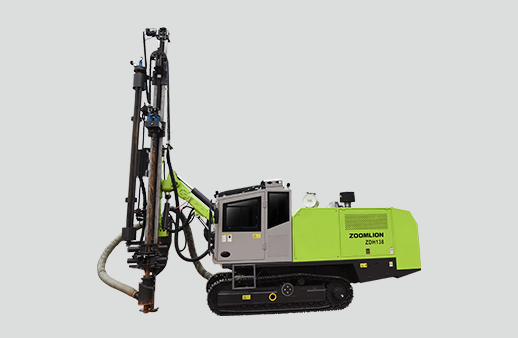

ZDH138 - ZOOMLION ZDH138 - ZOOMLION ZDH138 Crawler Crane

Model ZDH138
Total Machine Weight 16000kg
Hole Diameter Range φ115-138mm
Rod Storage Capacity 6+1pcs
Drill Pipe Specification φ68×3000/φ76×4000mm
Engine Model YC6MK360-T3
Rated Power 265/2000kW/rpm
Maximum Travel Speed 3km/h
Gradeability 25°
Crawler Frame Swing Angle ±10°
Ground Clearance 420mm
Max Working Torque 3000N.m
Rotation Speed 105rpm
Air Displacement 18m3/min
Max Working Pressure 17bar
Max Pull Force 20kN
Feed Stroke 4800mm
Feed Compensation Length 1200mm



Zoomlion Dth Drill Rig

ZDH115
ZDH138

All specifications are approximate. Specifications are subject to change without notice.
