Disc Harrow

H.S.8432 2100 00





* A disc harrow is a farm implement that is used to cultivate the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders. It consists of many iron or steel discs which have slight concavity and are arranged into two or four sections. When viewed from above, the four sections would appear to form an "X" which has been flattened to be wider than it is tall. The discs are also offset so that they are not parallel with the overall direction of the implement. This is so they slice the ground they cut over a little bit to optimize the result. The concavity of the discs as well as their being offset causes them to loosen and pickup the soil they cut.









1BZ series heavy-duty offset disc harrow

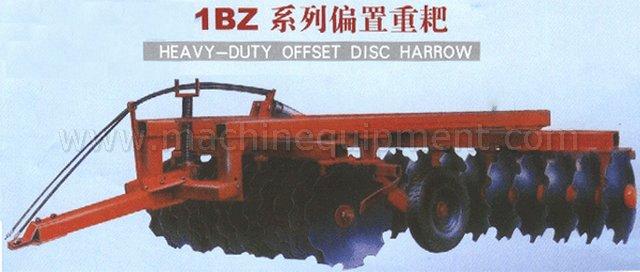

1BZ HEAVY-DUTY OFFSET DISC HARROW





1BZ series heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields. They can also be used as a plough for primary tillage in dry culdtivated fields.

1BZ series heavy-duty offset disc harrow are all fitted with hydraulic rubber wheel for transportation. It is easy to be transported and change direction on the edge of fields.



Model 1BZ-1.8 1BZ-2.0 1BZ-2.5 1BZ-3.0 1BZ-3.4
Dimension 4800*2000*1340mm 4820*2440*1340mm 5320*2880*1340mm 5320*3320*1340mm 5820*3760*1340mm
Approx.Weight 1100KGS 1300KGS 1430KGS 1550KGS 1700KGS
Working width 1.8m 2.0m 2.5m 3.0m 3.4m
Working depth 20cm 20cm 20cm 20cm 20cm
Blade spacing 230mm 230mm 230mm 230mm 230mm
Disc qty 16pcs 20pcs 24pcs 28pcs 32pcs
Disc diameter 660mm 660mm 660mm 660mm 660mm
Transport clearance >160mm >160mm >160mm >160mm >160mm
Productivity 1.1ha/h 1.3ha/h 1.4ha/h 1.7ha/h 1.9ha/h
Matched power 44~55KW 52.9~66.2KW 55~73.5KW 58.8~88KW 66.2~100KW
Linkage trailed trailed trailed trailed trailed

















PQZ-2.5 24 blades heavy-duty disc harrow

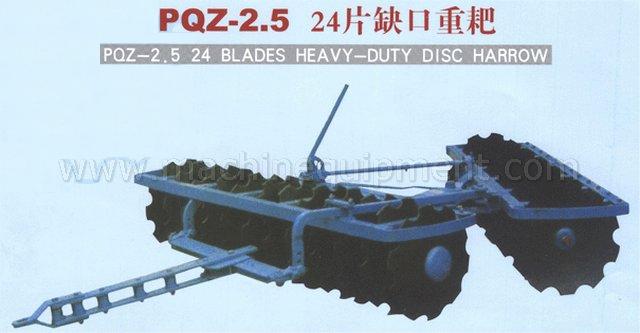

PQZ-2.5 24 BLADES HEAVY-DUTY DISC HARROW



















1BZ(BX) series semi-mounted heavy-duty offset disc harrow

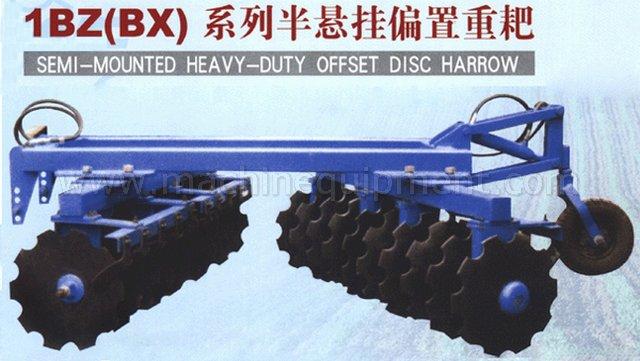

1BZ(BX) SEMI-MOUNTED HEAVY-DUTY OFFSET DISC HARROW





1BZ(BX) series semi-mounted heavy-duty offset disc harrow has been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields. It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.

1BZ(BX) series semi-mounted heavy-duty offset disc harrow may also be used as plough for primary tillage in cultivated fields. Maximum harrowing depth on uncultivated land can reach 18cm. The surface of the field after harrowing is level and crushing and clearing ability of the harrow is satisfactory. Easy to hook up, simple to adjust, bidirectional steering, high maneuverability, satble driving and good passability.



Model 1BZ(BX)-1.8 1BZ(BX)-2.0 1BZ(BX)-2.5 1BZ(BX)-3.0
Dimension 4500*2080*1300mm 4820*2300*1300mm 4820*2880*1300mm 5320*3430*1300mm
Approx.Weight 980KGS 1000KGS 1200KGS 1300KGS
Working width 1.8m 2.0m 2.5m 3.0m
Working depth 20cm 20cm 20cm 20cm
Blade spacing 230mm 230mm 230mm 230mm
Disc qty 18pcs 20pcs 24pcs 28pcs
Disc diameter 660mm 660mm 660mm 660mm
Transport clearance >160mm >160mm >160mm >160mm
Productivity 1.2ha/h 1.3ha/h 1.4ha/h 1.7ha/h
Matched power 44~55KW 52.9~66.2KW 55~73.5KW 58.8~88KW
Linkage semi-mounted semi-mounted semi-mounted semi-mounted

















1BJ series wing-folded medium disc harrow

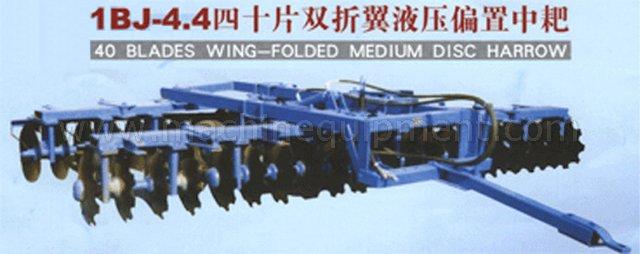

1BJ-4.4  40 BLADES WING-FOLDED MEDIUM DISC HARROW





1BJ series wing-folded medium disc harrow are suitable for crushing colds on sticky heavy clay soil land after ploughing. They can be used instead of plough on soft and loose land. Their main features are wide space operation, narrow space transportation, convenient folded wings, reliable structure with specially-used rolling bearing, easy maintenance, high productivity.



Model 1BJ-4.4 1BJ-5.3
Dimension 5320*4800*1130mm 5720*5720*1130mm
Working width 4.4m 5.3m
Working depth 14cm 14cm
Disc diameter 560mm 560mm
Disc qty 40pcs 48pcs
Weight 1750KGS 2200KGS
Matched power 55~73.5KW 66~88KW
Productivity 2.7ha/hr. 3.2ha/hr.
Blade spacing 230mm 230mm
Linkage Trailed Trailed









1BJX series mounted medium disc harrow

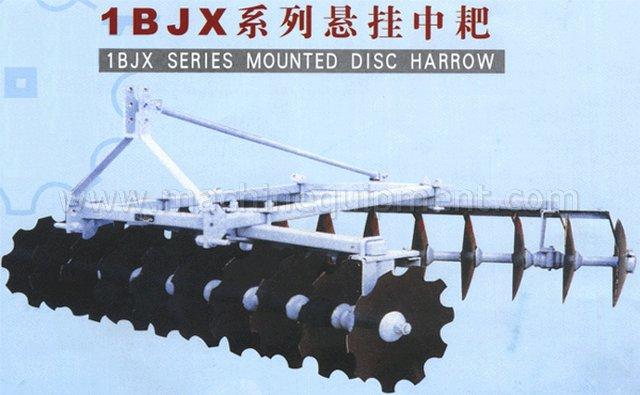

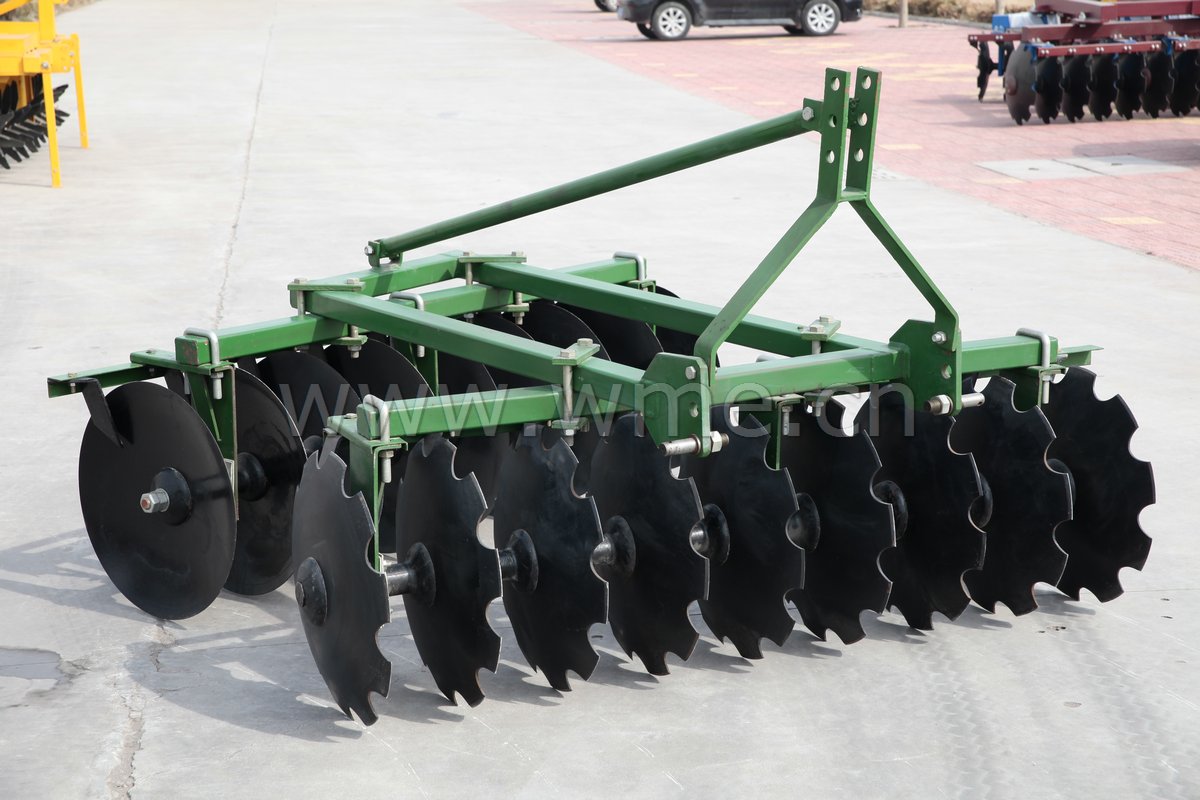

1BJX SERIES MOUNTED DISC HARROW



1BJX series mounted medium disc harrow are suitable for cleaning away stubble of plants before ploughing, or crushing soil after ploughing on dry cultivated land and levelling land before seeding, they can be used instead of plough on light soil land. The front gang is assembled with scalloped disc, the rea with plain disc.



Model 1BJX-1.7 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width 1.7m 2.0m 2.2m 2.4m 2.5m
Working depth 14~18cm 14~18cm 14~18cm 14~18cm 14~18cm
Angle of approach 11° 14° 17° 20° 23° 14° 17° 20° 23° 26°
Disc diameter 560mm 560mm 560mm 560mm 560mm
Blade spacing 230mm 230mm 230mm 230mm 230mm
Disc qty 16pcs 18pcs 20pcs 22pcs 24pcs
Productivity 1.3ha/hr 1.5ha/hr 1.6ha/hr 1.8ha/hr 1.9ha/hr
Dimension 1960*1880*1317mm 1980*2240*1317mm 1980*2470*1317mm 2780*2570*1340mm 2970*2680*1460mm
Weight 400KGS 434KGS 463KGS 604KGS 700KGS
Linkage 3 point mounted 3 point mounted 3 point mounted 3 point mounted 3 point mounted
Matched power 25.7~33KW 37~44KW 37~47.8KW 47.8~58.8KW 55~60KW

















1BQX series mounted light-duty disc harrow

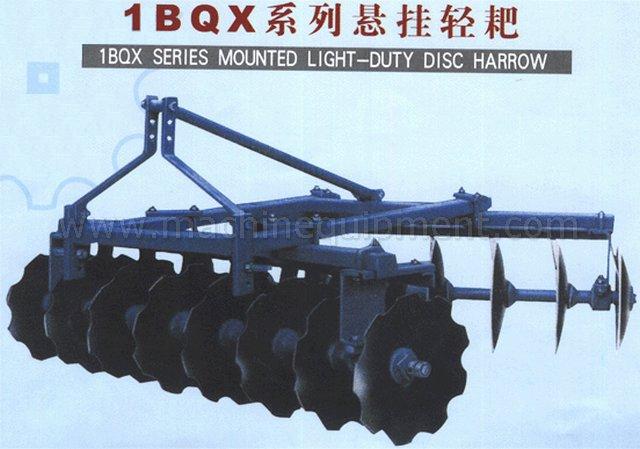

1BQX SERIES MOUNTED LIGHT-DUTY DISC HARROW



1BQX series mounted light-duty disc harrow are suitable for pulverized loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can mix up soil and fertilizer and clear away the stump of plants on light soil and prepair seed bed for planting.



Model 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-1.9 1BQX-2.3
Working width 1.1m 1.3m 1.5m 1.7m 1.9m 2.3m
Working depth 10cm 10cm 10~14cm 10~14cm 10~14cm 10~14cm
Disc qty 12pcs 14pcs 16pcs 18pcs 20pcs 24pcs
Disc diameter 460mm 460mm 460mm 460mm 460mm 460mm
Weight 200KGS 220KGS 240KGS 260KGS 300KGS 500KGS
Linkage 3 point mounted 3 point mounted 3 point mounted 3 point mounted 3 point mounted 3 point mounted
Matched power 8.8~10.3KW 8.8~13.3KW 17.4~22KW 17.4~25.7KW 20.5~29.4KW 36.7~48.4KW

















1BQ series light-duty offset disc harrow

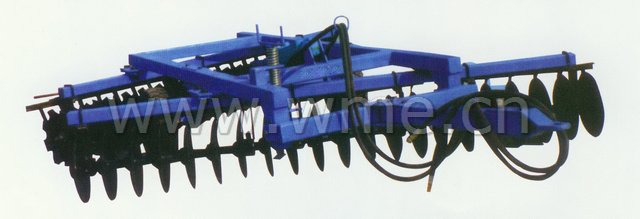

1BQ series light-duty offset disc harrow



1BQ series light-duty offset disc harrow are suitable for pulverizing and loosening clods after ploughing and for planning the land before sowing on cultivated land. They can mix up soil and fertilizer, and clear away the stump of plants.



Model 1BQ-3.4 1BQ-5.0
Working width 3.4m 5.0m
Working depth 10~14cm 10~14cm
Angle of approach 14° 17° 20° 23° 14° 17° 20° 23°
Disc diameter 460mm 460mm
Blade spacing 170mm 170mm
Disc qty 42pcs 60pcs
Productivity 1.72ha/hr 2.5ha/hr
Dimension 5360*3600*1050mm 5520*5200*1050mm
Linkage Trailed Trailed
Transport Clearance ≥160mm ≥160mm
Matched power 59.6~74.57KW 66~88KW
Weight 1100KGS 1520KGS

















1LZ series once-over tillage machine

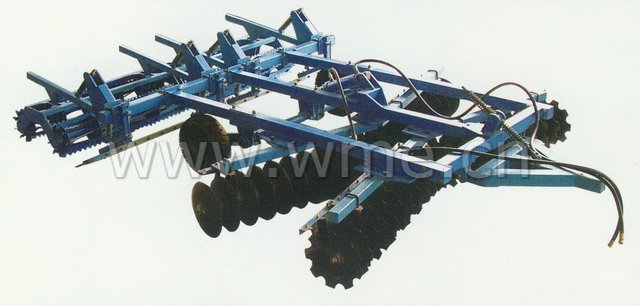

1LZ series  once-over tillage machine



The once-over tillage machine can once accomplish turning up, the rotary tillage, stubble ploughing, ridging school assignment. They can improve the efficiency, reduce the cost. After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.



Model 1LZ-3.6 1LZ-4.2 1LZ-5.4 1LZ-7.2
Working width 3.6m 4.2m 5.4m 7.2m
Working depth 14cm 14cm 14cm 14cm
Disc diameter 460mm (510mm) 460mm (510mm) 460mm (510mm) 460mm (510mm)
Blade spacing 170mm 170mm 170mm 170mm
Harrow Group Angle 3° 6° 9° 11° 13° 3° 6° 9° 11° 13° 3° 6° 9° 11° 13° 3° 6° 9° 11° 13°
Operating Speed 7~9km/hr 7~9km/hr 7~9km/hr 7~9km/hr
Productivity 2.28ha/hr 2.66ha/hr 3.33ha/hr 4.44ha/hr
Transport Clearance ≥280mm ≥280mm ≥280mm ≥280mm
Matched power >65HP >80HP >100HP >120HP
Dimension 6600*3800*1000mm 6600*4400*1000mm 6600*5600*1000mm 7000*7500*1000mm

All specifications are approximate. Specifications are subject to change without notice.
