Disc Plough

H.S.8432 1000 00





There are two kinds of disc plough: one-way disc plough and reversible disc plough.







one-way disc plough

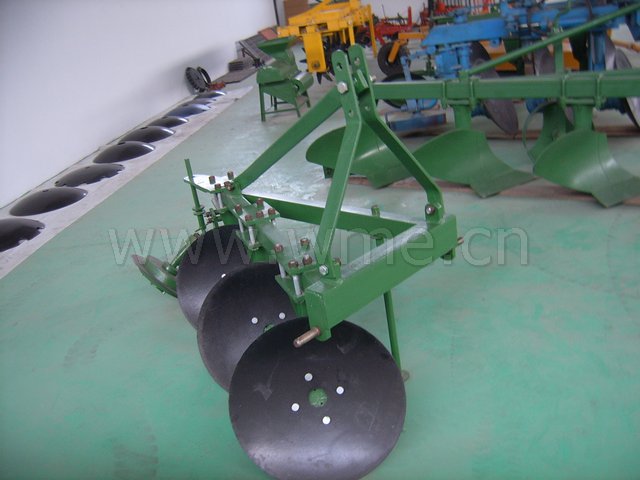

Disc Plough 1LY-320.jpg (47KB)

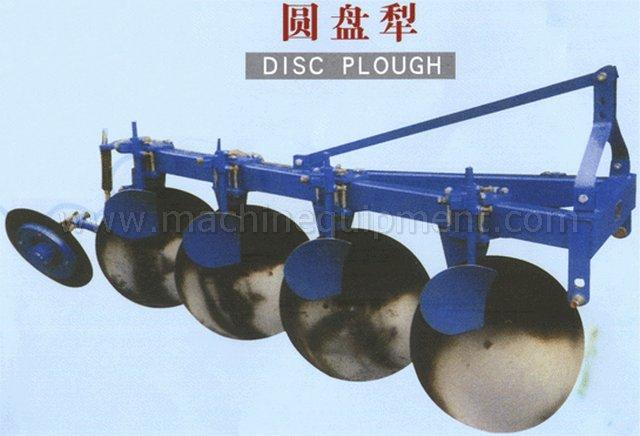

Disc Plough 1LY-425.jpg (41KB)



The disc plough products are mainly used for tillage on dry cultivated or fallow land, especially



Model 1LY-315 1LY-320 1LY-325 1LY-425 1LY-525 1LY-530
Working width 0.45m 0.6m 0.75m 1.0m 1.25m 1.5m
Working depth 18cm 20cm 25cm 25cm 25cm 30cm
Disc qty 3 3 3 4 5 5
Disc diameter 450mm 510mm 660mm 660mm 660mm 710mm
Weight 160KGS 180KGS 465KGS 520KGS 580KGS 600KGS
Linkage 3 point mounted 3 point mounted 3 point mounted 3 point mounted 3 point mounted 3 point mounted
Matched power 10.3~13.3KW 18.3KW 36.7~40.4KW 47.7~58.8KW 58.8~73.5KW 66~88KW



















reversible disc plough

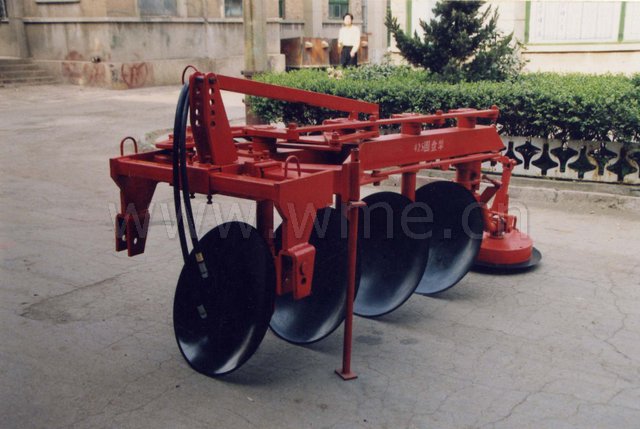

Reversible disc plough 1LY(SX)-425.jpg (72KB)



Reversible disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have fuction of ordinary disc plough, but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.



Model 1LY(SX)-325 1LY(SX)-425 1LY(SX)-525 1LY(SX)-625
Working width 0.75m 1m 1.25m 1.5m
Working depth 25cm 25cm 25cm 30cm
Disc qty 3 4 5 6
Disc diameter 660mm 660mm 660mm 660mm
Weight 560KGS 660KGS 760KGS 880KGS
Linkage 3 point mounted 3 point mounted 3 point mounted 3 point mounted
Matched power 47.7KW 58.8KW 73.5KW 88KW







All specifications are approximate. Specifications are subject to change without notice.
