SITON Underground Mining Equipment

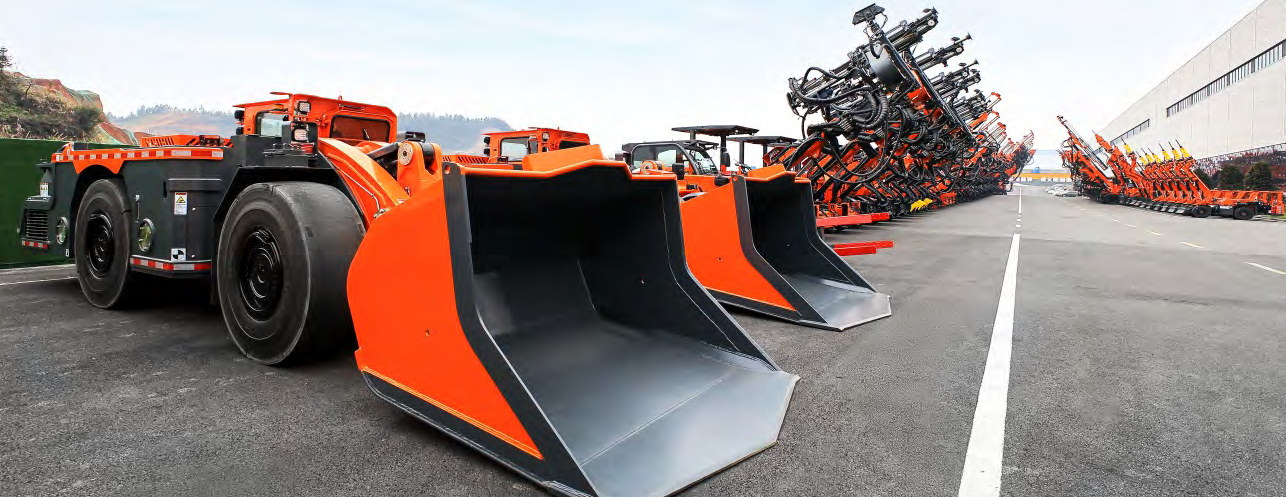

SITON China factory




We can supply hydraulic tunneling drill rigs, hydraulic rock bolt drill rigs, hydraulic mining drill rigs, mine haul trucks, underground mining trucks, prying trolleys, wet - spraying trolleys, excavation loaders, and multi - functional auxiliary mine vehicles, and has passed the national mine safety standard certification.




SITON Mining Auxiliary Vehicles

SITON Prying Trolley

SITON Mining Crushing Jumbo

SITON Mining Concrete Spraying Truck

SITON Mining Concrete Mixing and Transporting Truck

SITON Oil Tanker Truck

SITON Explosive Transport Truck

SITON Material Transport/Lifting Truck

SITON Trackless Personnel Carrier

SITON Scissor Lift Platform Truck

SITON Dual - Lifting Lift Platform Truck

SITON Boom - type Lift Platform Truck

SITON Underground Maintenance Truck

SITON Emulsion Explosive Charging Jumbo

SITON Mining Drill Rig

SITON Mining Drill Jumbo

SITON Rock Bolt Drill Jumbo

SITON Mine Loading - Transporting Vehicle

SITON Underground Scooptram

SITON Underground Ore Hauler

SITON Backhoe Loader

↑Back to top

SITON Mining Auxiliary Vehicles

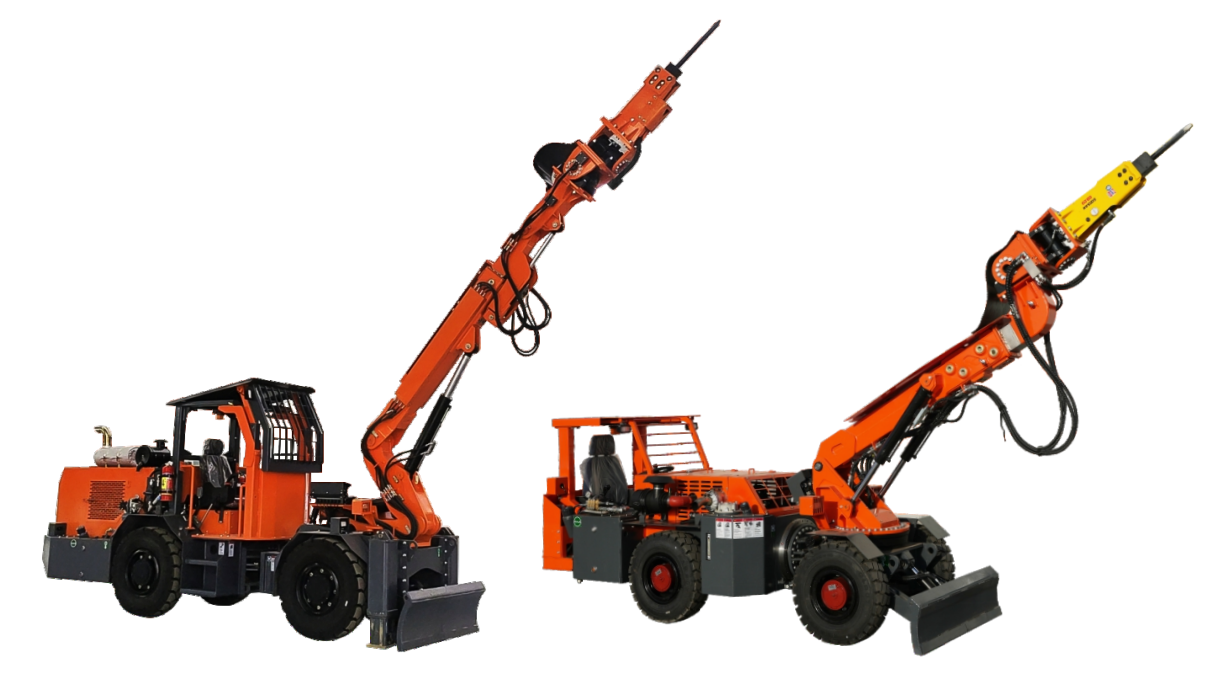

SITON Prying Trolley

Model Overall Dimensions(mm) Overall Weight(kg) Impact Energy(J) Drill Rod Diameter(mm)
QM1 7760×1720×2390 10500 362 Φ53
QM2 5500×1500×1850 5600 125 Φ45
QM2C 5800×1600×1850 5800 125 Φ45
QM3 8130×1850×2620 12400 362 Φ53



↑Back to top

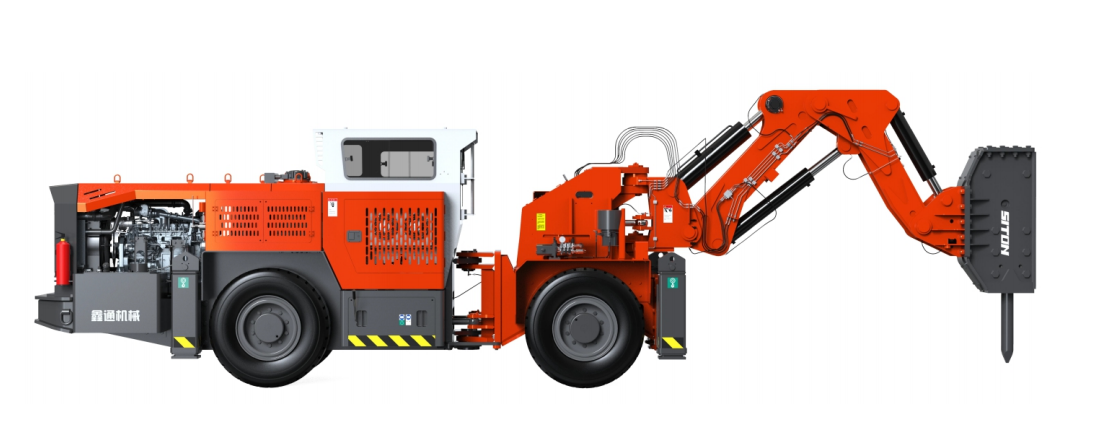

SITON Mining Crushing Jumbo

Model Weight Impact Energy(J) Pick Diameter Length Width
UPT-96/2500 1517kg 2500J 120mm 2100mm 600mm



↑Back to top

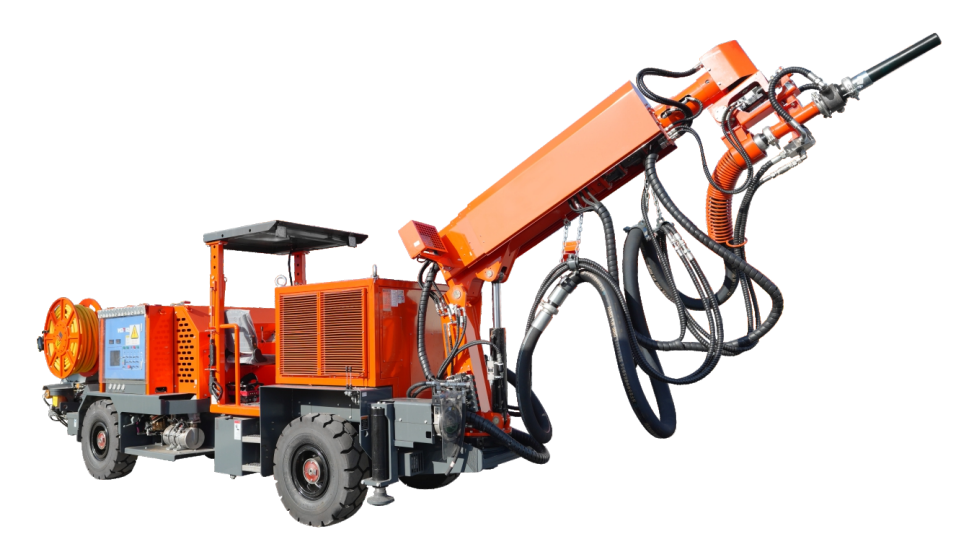

SITON Mining Concrete Spraying Truck

Model Length×Width×Height (mm) Dead Weight (KG) Rated Power of Motor (kw) Rated Power of Diesel Engine (kw)
HP4 10419×1750×2355 12800 45 (Plateau) 59
HP7 8980×1600×2120 7500 - 8000 30 35.9



↑Back to top

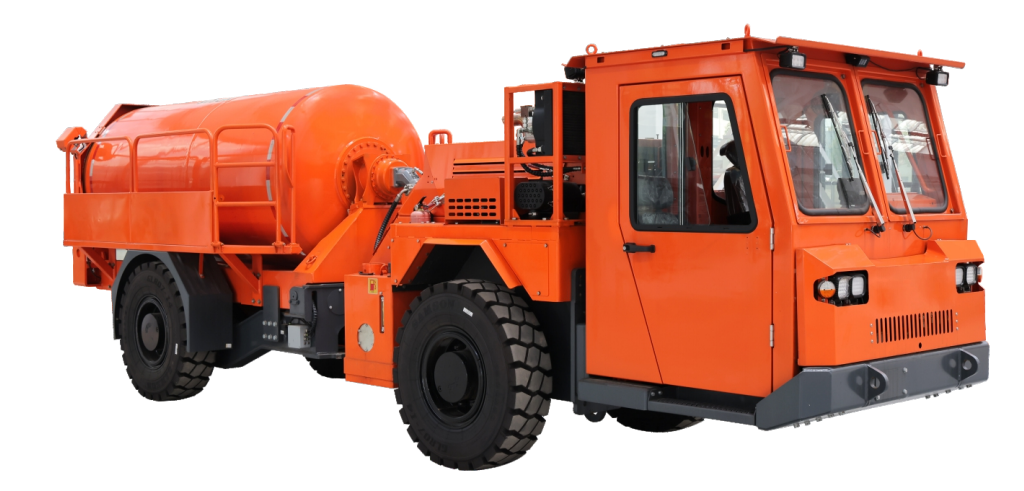

SITON Mining Concrete Mixing and Transporting Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
KJCJ-4 10000 12000 22000 15 25



↑Back to top

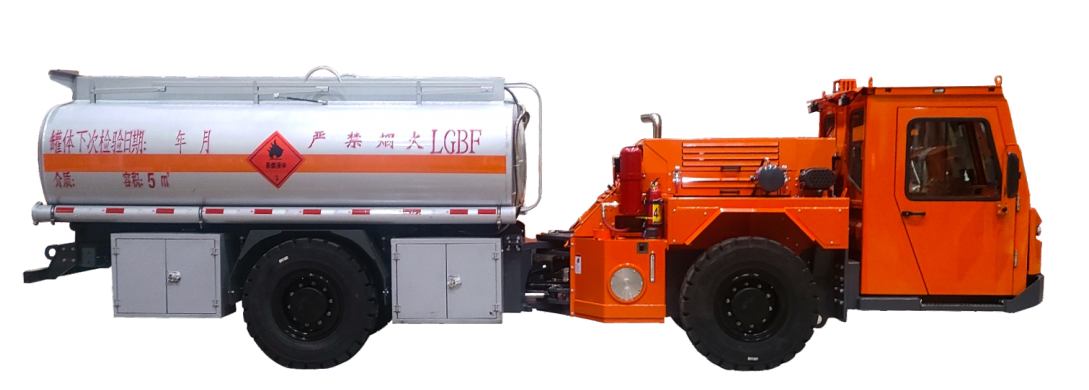

SITON Oil Tanker Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
CY-3500 4000 12000 15500 15 25
CY-5000 5000 12000 17000 15 25



↑Back to top

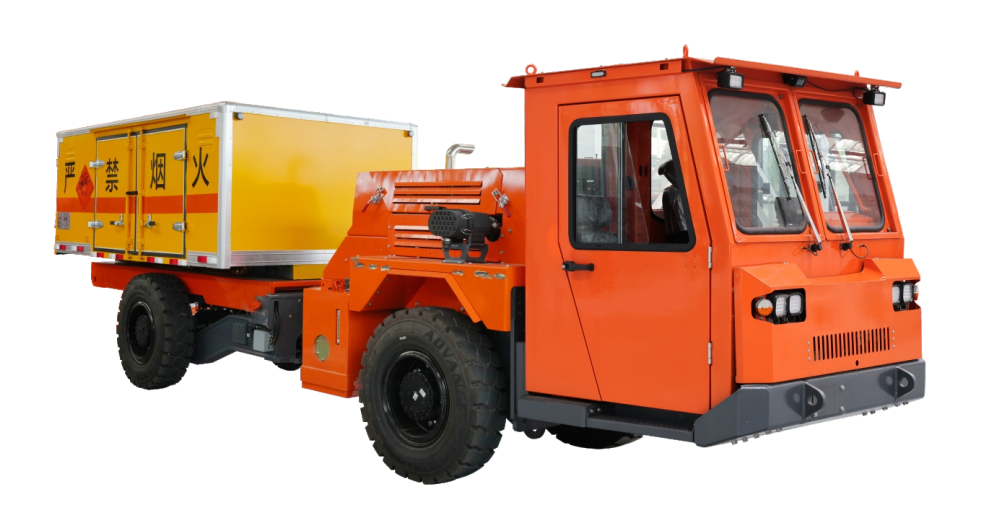

SITON Explosive Transport Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
FCB-3 3000 9000 12000 15 25
FCB-5 5000 11500 16500 15 25



↑Back to top

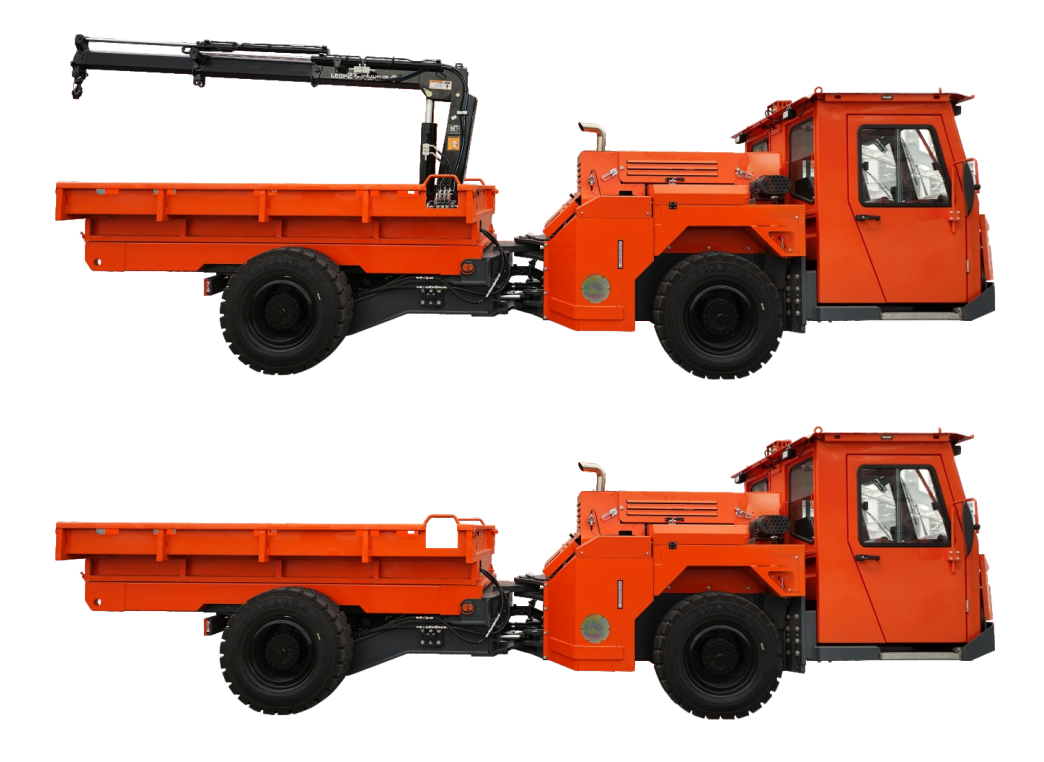

SITON Material Transport/Lifting Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
FQ-2A 5000 10000 15000 15 25
FQ-2B 5000 10000 15000 15 25
FL-5A 5000 10000 15000 15 25
FL-5B 5000 10000 15000 15 25



↑Back to top

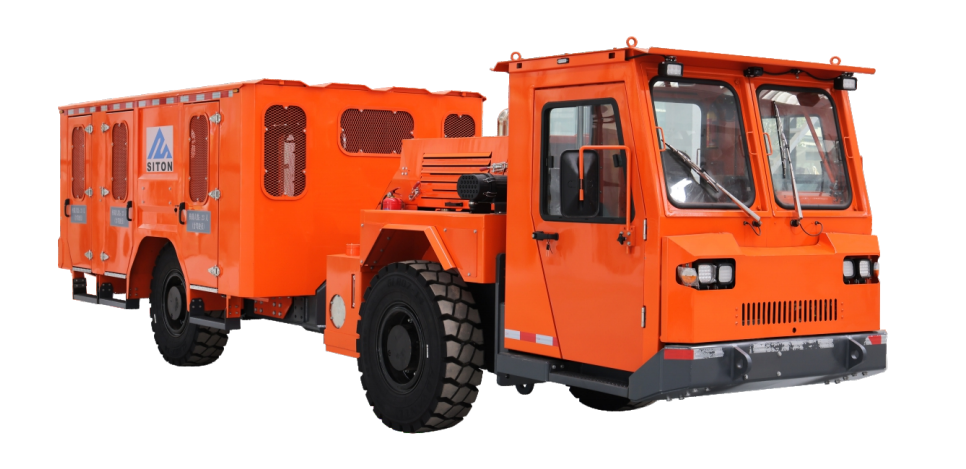

SITON Trackless Personnel Carrier

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
RU-23 4100 13000 17100 15 25



↑Back to top

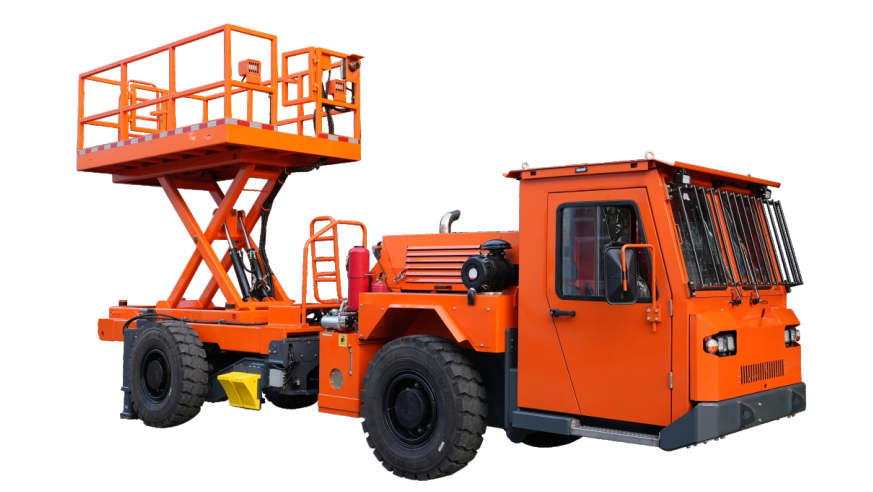

SITON Scissor Lift Platform Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
UC-1.5A 1500 10500 12000 15 25
UC-1.5B 1500 13500 15000 15 25



↑Back to top

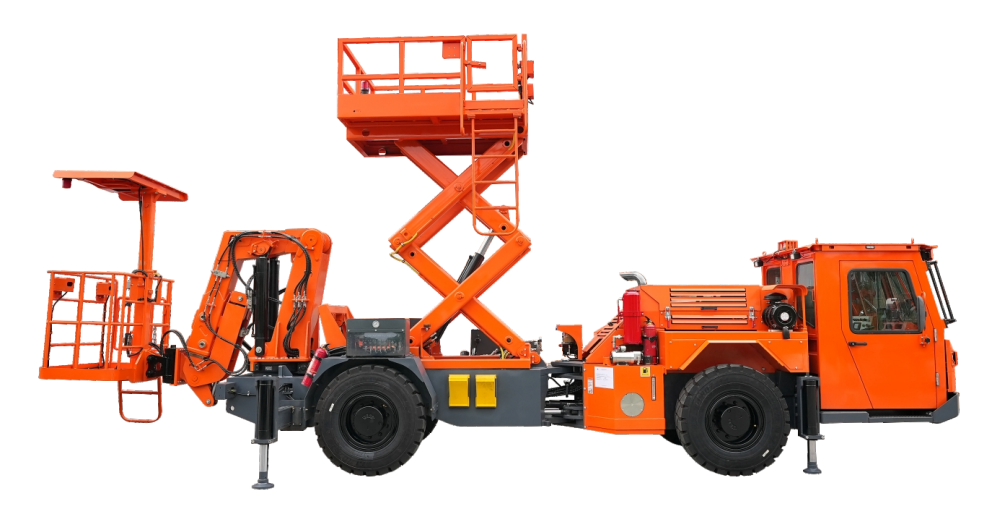

SITON Dual - Lifting Lift Platform Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
UC-2 500/2000 15500 18000 14 25



↑Back to top

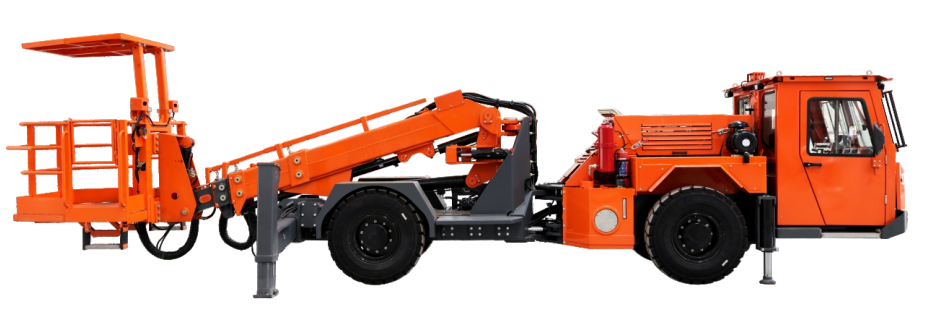

SITON Boom - type Lift Platform Truck

Model Load (KG) Dead Weight (KG) Gross Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
UCB-0.5 500 14500 15000 15 25
UCB-0.5A 500/2000 14500 17000 14 25



↑Back to top

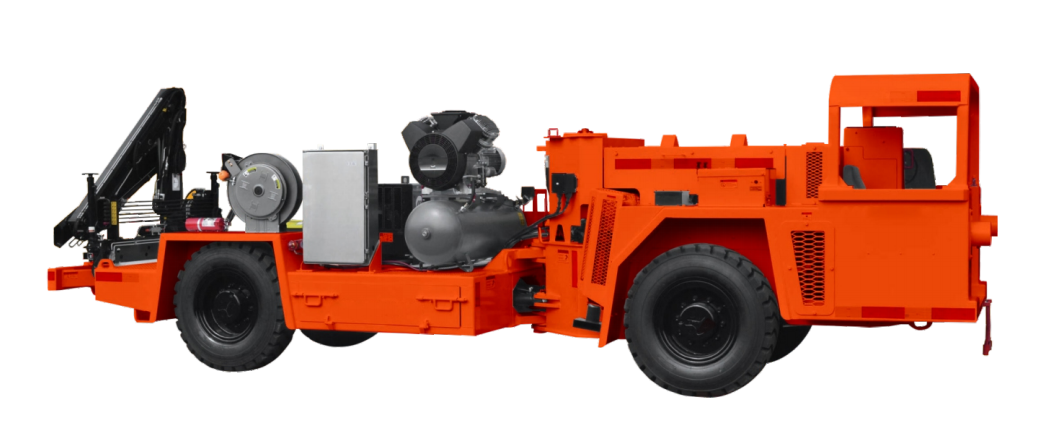

SITON Underground Maintenance Truck

Model Load (KG) Dead Weight (KG) Maximum Climbing Gradient (°) Maximum Speed (km/h)
UX-6A 6000 10000 15 25



↑Back to top

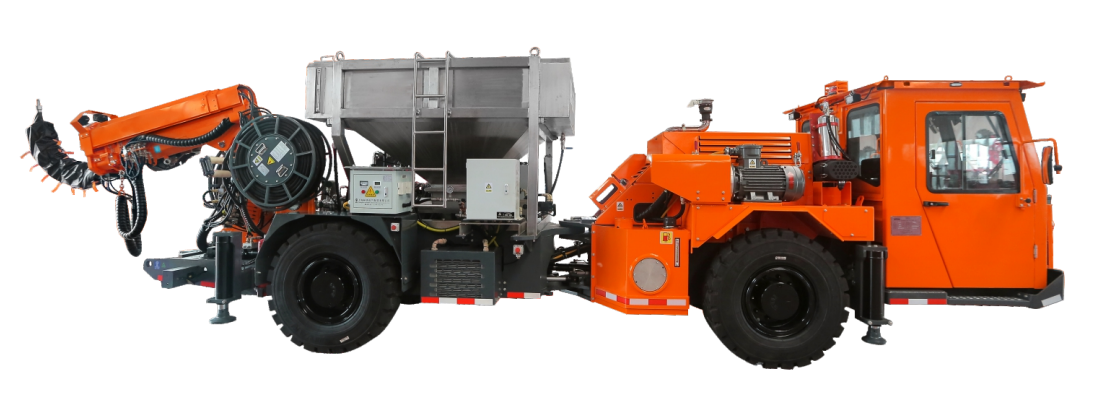

SITON Emulsion Explosive Charging Jumbo

Model Charging Speed (kg/min) Pipe - feeding Speed (mm/s) Maximum Pipe - feeding Depth (m) Medicine Return Rate (%)
BCJR-2000 40 - 80 40 - 80 50 ≤1



↑Back to top

SITON Mining Drill Rig

SITON Tunneling Jumbo

Model Length×Width×Height (mm) Ground Clearance (mm) Total Weight (Kg) Turning Radius (mm) Travel Speed (Km/h)
DD1 9664×1250×2542/1842 290 8600 Inner 2809/Outer 4500 8.5
DD2 10375×1600×2080/2780 275 11500 2400/5200 10
DD2-N 9860×1390×1880/2580 250 8600 2400/4800 10
DD4 11934×2080×2294/2994 300 15400 Inner 3600/Outer 5900 13.5
DD4-2b 12700×2000×2600/3300 335 23000 Inner 3380/Outer 6000 16
DT1-14 9865×1250×1845/2437 200 10300 Inner 3000/Outer 5600 2.1/1.1
DD4-i 12480×2220×3230 300 22300 Inner 3330/Outer 7210 14
DD3-i 11360×2050×2825 290 13000 Inner 3100/Outer 6250 14
DD2-i 10667×1600×2080/2780 265 11500 Inner 2500/Outer 5200 6
DW2-50 11965×1980×2960/2260   20000 3400/6200



↑Back to top

SITON Mining Drill Jumbo

Model Length×Width×Height (mm) Ground Clearance (mm) Total Weight (Kg) Turning Radius (mm) Travel Speed (Km/h)
DL2 7006/7783×1600×2080/2780 265 11500 2805/4841 9.5
DL2-hs 8430×1600×2913 238 13500 3341/5811 7
DL2-Nb 8195×1400×1880/2580 240 9000 2463/5072 8
DL3-b 8538×2050×2825 280 15600 3315/6106 14
DL4 8584×2389×3129 300 18200 3656/6250 13.5
DL-mini 4284×1454×2209 235



↑Back to top

SITON Rock Bolt Drill Jumbo

Model Length×Width×Height (mm) Ground Clearance (mm) Total Weight (Kg) Turning Radius (mm) Travel Speed (Km/h)
DS2 9397×1600×2080/2780 265 12500 2500/2780 9
DS3 10309×2050×2110/2810 301 13500 3121/5872 14
MS4 9815×2080×2725 280 17730 3530/6226 20
KQG1-150 4292×1672×2639 240 7000 ≤2260 1



↑Back to top

SITON Mine Loading - Transporting Vehicle

SITON Underground Scooptram

Model Overall Dimensions (mm) Rated Load Capacity (kg) Standard Bucket Capacity (m³) Self - weight
WJ-3 9100×2300×2350 7000kg 3.5 19.5t
WJ-4 10277×2550×2380 10000kg 4 28.5t
WJ-5 10277×2550×2380 10000kg 5 28.5t
WJ-6 10655×2800×2526 14000kg 6.3 38t



↑Back to top

SITON Underground Ore Hauler

Model Overall Dimensions (mm) Rated Weight Maximum Torque Compartment Volume (m³)
UK-8 6540×1600×2000 27.5T   4
UK-10 7510×1980×2270 25T   5
UK-12 8250×1980×2270 17.5T   6
UK-20 9098×2280×2447     10
UK-30 10535×2946×2679 30T 2175N.m/1200r/min 15
UK-45 10800×3100×2850 45T 2897N.m/1260r/min 21



↑Back to top

SITON Backhoe Loader

Model Overall Dimensions (mm) Adaptable Tunnel Section (m) Overall Weight (kg) Motor Power (KW) Loading Capacity (m³/h)
ZWY-60/30L 6750×1600×1650 2.2×2.2 7800 30 60
ZWY-80/37L 6950×1682×1750 2.4×2.4 8300 37 80
ZWY-80/45L 7718×1910×1990 2.4×2.4 11860 45 80
ZWY-100/45L 8100×1910×2100 2.5×2.5 12200 45 100
ZWY-120/55L 9200×1900×2350 3.0×3.0 13600 55 120
ZWY-150/55L 9500×2360×2450 3.2×3.2 15300 55 150



↑Back to top

All specifications are approximate. Specifications are subject to change without notice.
