| Model |

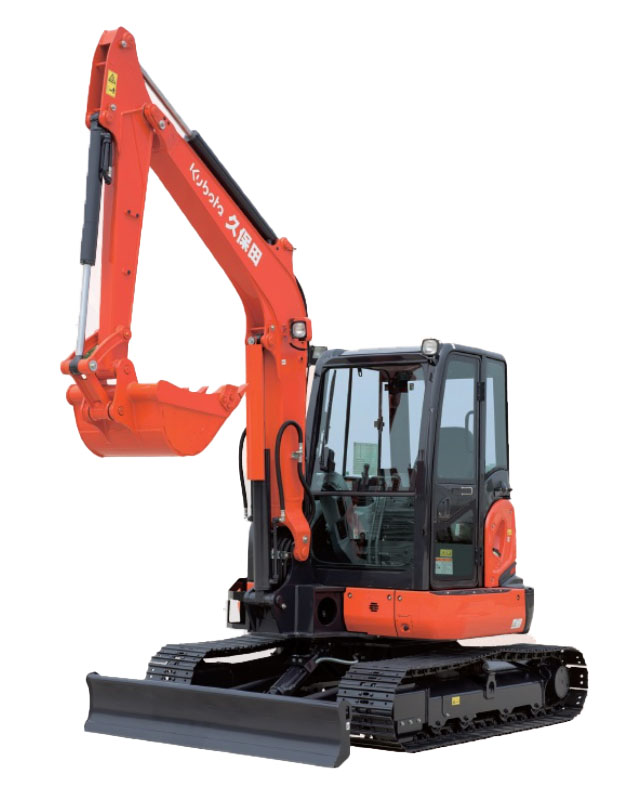

KX155 |
| Bucket capacity |
0.16m3 |
| Standard bucket width: with or without edge teeth |
730/680mm |
| Operating weight |
5190kg |
| Overall length |
5510mm |
| Full height |
2540mm |
| Full width |
1960mm |
| Minimum ground clearance |
320mm |
| Engine Model |
V2403-E3 |
| Total displacement |
2343mm |
| Rated output power *based on ISO9249 |
40.7PS(29.9kW) / 2,250rpm |
| Maximum excavation height |
5560mm |
| Maximum discharge height |
3855mm |
| Maximum excavation depth |
3580mm |
| Maximum vertical digging depth |
2990mm |
| Maximum digging radius |
6045mm |
| Arm Offset Range: (Left/Right) |
/ |
| Minimum Front Turning Radius (when swinging) |
2370mm |
| Minimum rear turning radius |
1060mm |
| Maximum Digging Force (Bucket) |
36.5(3,720) |
| Track type |
Iron tracks |
| Track width |
400mm |
| Tracks are full-length |
2500mm |
| Wheel spacing |
1990mm |
| Track center distance |
1560mm |
| Travel speed (low/high) |
2.5/4.3km/h |
| Climbing ability |
30° |
| Rotational Speed (rpm) |
9.3 |
| Bulldozer Board (Wide) |
1960mm |
| Bulldozer Board (High) |
360mm |
| Lifting distance (GL up/down) |
450/375mm |
| Types of hydraulic pumps |
Variable pumps *2 + gear pumps *2 |
| Types of slewing motors |
Cycloidal rotor motor |
| Type of walking motor |
2-speed plunger hydraulic motor |
| Fuel tank capacity |
100L |
