| Model |

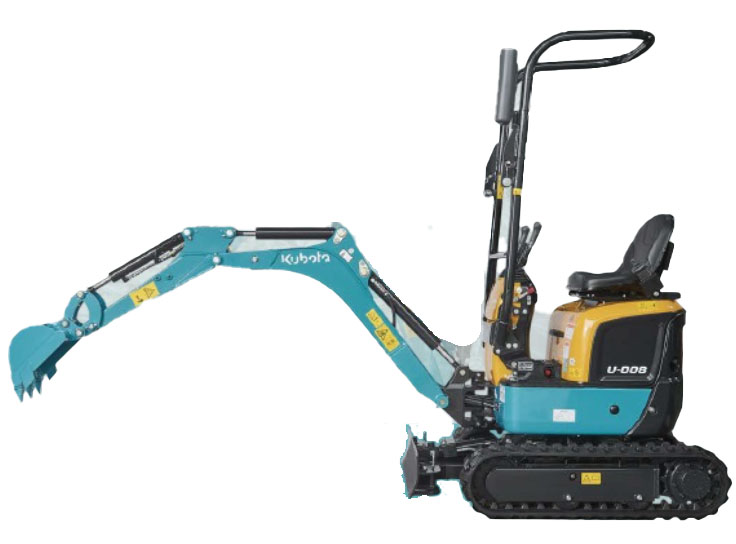

U008 |
| Retractable tracks |
Fixed tracks |
| Bucket capacity |
0.13/0.019m3 |
| Standard bucket width: with or without edge teeth |
368/350mm |
| Operating weight |
1095kg |
975kg |
| Overall length |
2780mm |
| Full height |
2260mm |
| Full width |
700/860mm |
820mm |
| Minimum ground clearance |
150mm |
160mm |
| Engine Model |
D722-E4 |
| Total displacement |
0.719L |
| Rated output power *based on ISO9249 |
10.2PS(7.5kW)/2050 |
| Maximum excavation height |
2775mm |
| Maximum discharge height |
1945mm |
| Maximum excavation depth |
1600mm |
| Maximum vertical digging depth |
1265mm |
| Maximum digging radius |
3120mm |
| Arm Offset Range: (Left/Right) |
435/355mm |
| Minimum Front Turning Radius (when swinging) |
1250(1065)mm |
| Minimum rear turning radius |
510mm |
| Maximum Digging Force (Bucket) |
9.8(1000) |
| Track type |
Rubber tracks |
| Track width |
180mm |
| Tracks are full-length |
1230mm |
| Track center distance |
520/680mm |
640mm |
| Travel speed (low/high) |
2.0/4.0km/h |
2.0km/h |
| Climbing ability |
30° |
| Rotational Speed (rpm) |
8.3 |
| Bulldozer Board (Wide) |
700/860mm |
820mm |
| Bulldozer Board (High) |
200mm |
| Lifting distance (GL up/down) |
200/180mm |
| Types of hydraulic pumps |
Gear pump ✖2 |
| Fuel tank capacity |
12L |
