| Model |

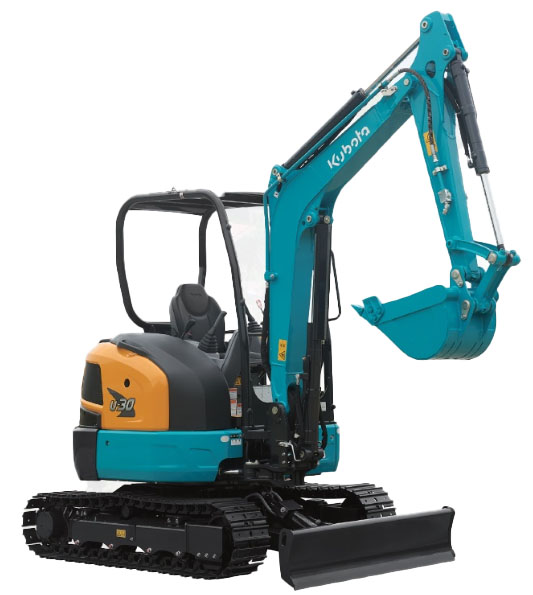

U30 |
U30 (cab specification) |
| Bucket capacity |
0.08m3 |
0.08m3 |
| Standard bucket width: with or without edge teeth |
520/470mm |
520/470mm |
| Operating weight |
3648kg |
3815kg |
| Overall length |
4573mm |
4573mm |
| Full height |
2482mm |
2476mm |
| Full width |
1550mm |
1550mm |
| Minimum ground clearance |
287mm |
287mm |
| Engine Model |
D1703-E3 |
D1703-E3 |
| Total displacement |
1674mm |
1674mm |
| Rated output power *based on ISO9249 |
25.1PS(18.5kW) / 2,200rpm |
25.1PS(18.5kW) / 2,200rpm |
| Maximum excavation height |
4558mm |
4232mm |
| Maximum discharge height |
3141mm |
2861mm |
| Maximum excavation depth |
2825mm |
2825mm |
| Maximum vertical digging depth |
1988mm |
1988mm |
| Maximum digging radius |
4951mm |
4951mm |
| Arm Offset Range: (Left/Right) |
630/640mm |
630/640mm |
| Minimum Front Turning Radius (when swinging) |
2164(1730)mm |
2,338(1,875)mm |
| Minimum rear turning radius |
900mm |
900mm |
| Maximum Digging Force (Bucket) |
29.5(3,000) |
29.5(3,000) |
| Track type |
Iron tracks |
Iron tracks |
| Track width |
300mm |
300mm |
| Tracks are full-length |
2081mm |
2081mm |
| Wheel spacing |
1620mm |
1620mm |
| Track center distance |
1250mm |
1250mm |
| Travel speed (low/high) |
3.0/4.6km/h |
3.0/4.6km/h |
| Climbing ability |
30° |
30° |
| Rotational Speed (rpm) |
9.0 |
9.0 |
| Bulldozer Board (Wide) |
1550mm |
1550mm |
| Bulldozer Board (High) |
341mm |
341mm |
| Lifting distance (GL up/down) |
366/375mm |
366/375mm |
| Types of hydraulic pumps |
Variable pumps *2 + gear pumps *2 |
Variable pumps *2 + gear pumps *2 |
| Types of slewing motors |
Cycloidal rotor motor |
Cycloidal rotor motor |
| Type of walking motor |
2-speed plunger hydraulic motor |
2-speed plunger hydraulic motor |
| Fuel tank capacity |
45L |
45L |
