| Model |

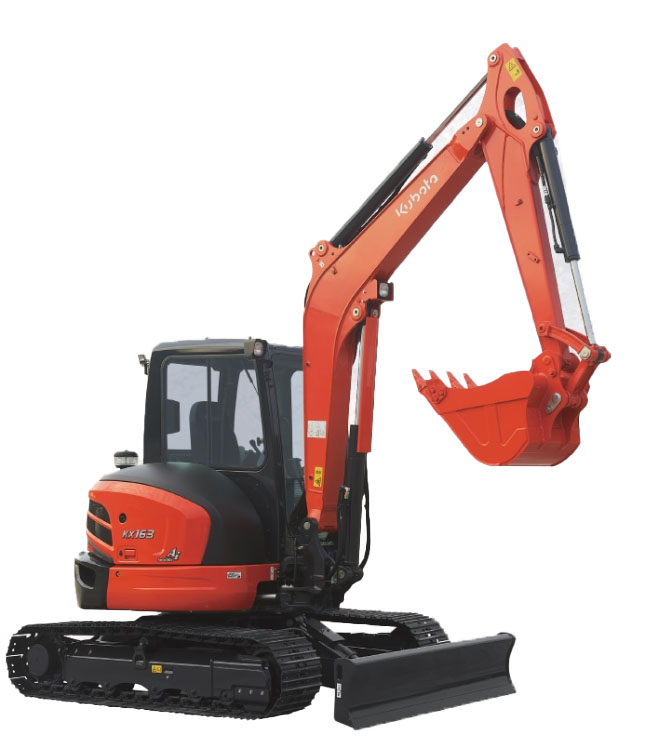

KX163 |
| Bucket capacity |
0.19m3 |
| Standard bucket width: with or without edge teeth |
680/630mm |
| Operating weight |
5600kg |
| Overall length |
5500mm |
| Full height |
2550mm |
| Full width |
1960mm |
| Minimum ground clearance |
310mm |
| Engine Model |
V2607-E3 |
| Total displacement |
2615mm |
| Rated output power *based on ISO9249 |
48.3PS(35.5kW) / 2,200rpm |
| Maximum excavation height |
5685mm |
| Maximum discharge height |
3950mm |
| Maximum excavation depth |
3690mm |
| Maximum vertical digging depth |
2685mm |
| Maximum digging radius |
6140mm |
| Arm Offset Range: (Left/Right) |
625/815 |
| Minimum Front Turning Radius (when swinging) |
2,460(2,015)mm |
| Minimum rear turning radius |
1045mm |
| Maximum Digging Force (Bucket) |
40.1(4,090) |
| Track type |
Iron tracks |
| Track width |
400mm |
| Tracks are full-length |
2500mm |
| Wheel spacing |
1990mm |
| Track center distance |
1560mm |
| Travel speed (low/high) |
2.7/4.6km/h |
| Climbing ability |
30° |
| Rotational Speed (rpm) |
9.3 |
| Bulldozer Board (Wide) |
1960mm |
| Bulldozer Board (High) |
410mm |
| Lifting distance (GL up/down) |
440/405mm |
| Types of hydraulic pumps |
Variable pumps *2 + gear pumps *2 |
| Types of slewing motors |
Cycloidal rotor motor |
| Type of walking motor |
2-speed plunger hydraulic motor |
| Fuel tank capacity |
68L |
