| Model |

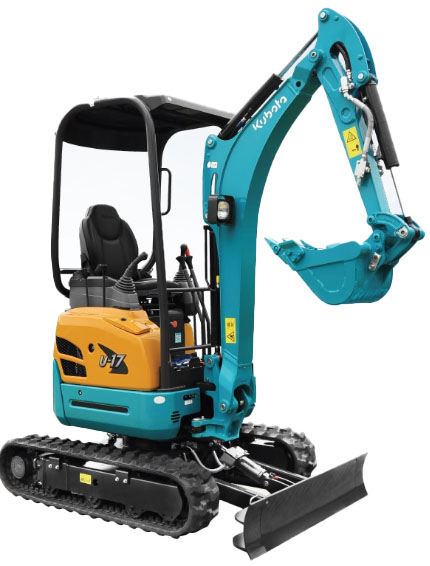

U17 |
| Bucket capacity |
0.035m3 |
| Standard bucket width: with or without edge teeth |
450/400mm |
| Operating weight |
1735/1805kg |
| Overall length |
3545mm |
| Full height |
2340mm |
| Full width |
900/1240mm |
| Minimum ground clearance |
150mm |
| Engine Model |
D902-E4 |
| Total displacement |
989mm |
| Rated output power *based on ISO9249 |
16.5PS(12.1kW)/2,400rpm |
| Maximum excavation height |
3540mm |
| Maximum discharge height |
2440mm |
| Maximum excavation depth |
2310mm |
| Maximum vertical digging depth |
1910mm |
| Maximum digging radius |
3900mm |
| Arm Offset Range: (Left/Right) |
385/510mm |
| Minimum Front Turning Radius (when swinging) |
1440(1210)mm |
| Minimum rear turning radius |
620mm |
| Maximum Digging Force (Bucket) |
15.2(1,550) |
| Track type |
Rubber/iron tracks |
| Track width |
230mm |
| Tracks are full-length |
1585mm |
| Wheel spacing |
1230mm |
| Track center distance |
760/1010mm |
| Travel speed (low/high) |
1.9/3.9km/h |
| Climbing ability |
30° |
| Rotational Speed (rpm) |
9.5 |
| Bulldozer Board (Wide) |
990/1240mm |
| Bulldozer Board (High) |
265mm |
| Lifting distance (GL up/down) |
280/190mm |
| Types of hydraulic pumps |
Variable pumps *2 + gear pumps *2 |
| Types of slewing motors |
Cycloidal rotor motor |
| Type of walking motor |
2-speed plunger hydraulic motor |
| Fuel tank capacity |
19L |
