Reaper-binder

H.S.8433 5990 90



Reaper-binder



* Reaper-binder can reap crop and bind it simultaneously. The reaper-binder is a farm implement that improved upon the reaper. In addition to cut the small-grain crop, the reaper-binder would also tie the stems into small bundles, or sheaves. These sheaves were then 'shocked' into conical stooks, resembling small tipis, to allow the grain to dry for several days before being threshed.

Our reaper-binder 4K-50 fit for crops higher than 60cm, and the reaper-binder 4K-50 can bind better for crops with height above 70cm. The reaper-binder binding diameter can be adjusted.

The reaper-binder with powerful gasoline engine is easy to starting, and with low noise, and reliable for easy working.

The reaper-binder with steer control handlebar, which can be freely adjusted to up, down, left, or right. Our reaper-binder have 16 shift for being adjusted to left and right. The reaper-binder handlebar can be 360° rotating.

During working in sloping fields or height limited garden, there are 5 shift for the our reaper-binder to be adjusted to fit for different farmer's height.

Our reaper-binder rope is specially produced for its strict tension and breaking force requirement. If you do not use our original rope, it may be easy to be broken or no binding, and even damage the reaper-binder. So our original rope is absolutely necessary for good binding performance.

The reaper-binder thread can be easily crushed in thresher, and no wrapping to hurt the thresher.

Our reaper-binder is very economical, efficient, practical, light weight, flexible easy operation.

Straw bundles can be recycled for many use: straw board, straw briquet, straw for mushroom planting, straw rope, straw bag, straw mat, straw curtain for greenhouse, straw shoes, straw sunbonnet, straw broom, food box, ...

As to productivity, we are reserved in our data, considering some customers may not be familiar with the operation.





It is a new revolution ! The more recycled, the more environmental and economical !

For farmers, what they need, are not only very good quality, but also very good price and service. So our reaper-binder is more suitable for small individual farmer. We will try the best to make you satisfied.

Drop your reaping hook, and pick up our reaper-binder for faster and more economical reaping and binding.



Model Engine Reap
Width
Bind
Diameter
Bind
Height
For
Crops
Height
Productivity Machine
Weight
Dimension
L * W * H
Note Photo Video
4K-150 8.5kw 150cm     ≥60cm 4000M2/H 650KGS 3550*1950*1330mm for 4 rows. Reaper-binder 4K-150 Reaper-binder 4K-150
4K-90 7.5hp 90cm             for 3 rows. Reaper-binder 4K-90

4K-50 Mitsubishi 6hp
gasoline engine
50cm 10~15cm 30cm ≥60cm 2000M2/H 260KGS 2100*800*1000mm

for 2 rows. with CE certification

Reaper-binder 4K-50.jpg (51KB) Reaper-binder 4K-50
4K-50 Robin 7.5hp
gasoline engine
50cm 10~15cm 30cm ≥60cm 2000M2/H 260KGS 2100*800*1000mm for 2 rows. with CE certification Reaper-binder 4K-50WithRobinEngine.jpg (120KB) Reaper-binder 4K-50
4K-50 7hp diesel engine 50cm 10~15cm 30cm ≥60cm 2000M2/H 260KGS 2100*800*1000mm

for 2 rows. with CE certification

Reaper-binder 4K-50.jpg (51KB) Reaper-binder 4K-50

4K-50 7hp diesel engine 50cm 10~15cm 30cm ≥60cm 2000M2/H 260KGS 2100*800*1000mm

for 2 rows. with CE certification

Reaper-binder 4K-50.jpg (51KB) Reaper-binder 4K-50

All specifications are approximate. Specifications are subject to change without notice.

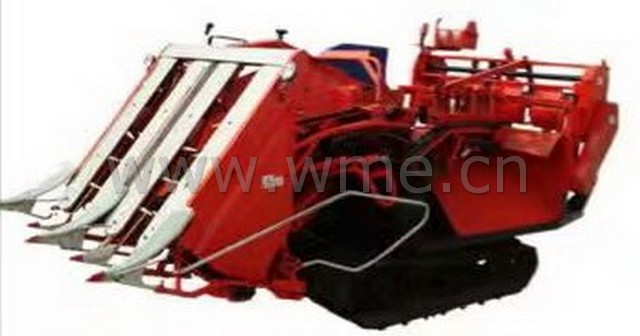

Reaper-binder 4K-150
reaper-binder 4K-150

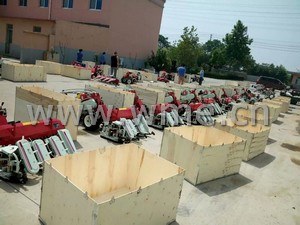

Reaper-binder 4K-90
reaper-binder 4K-90

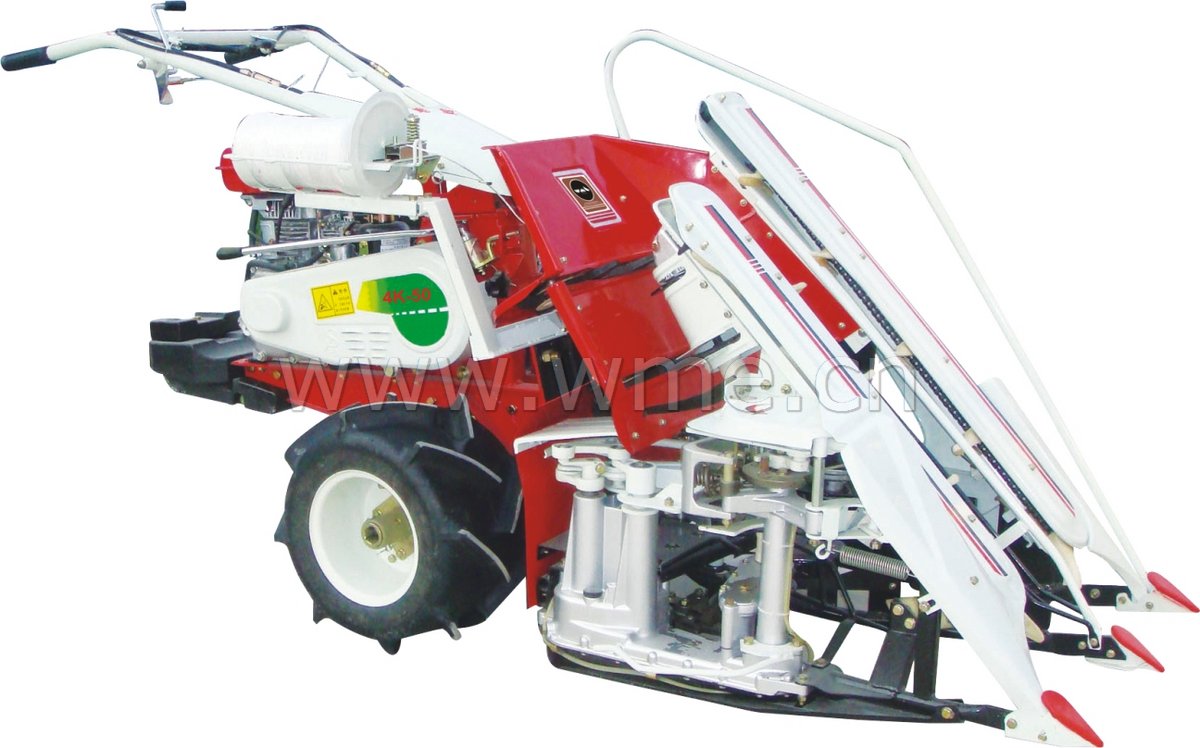

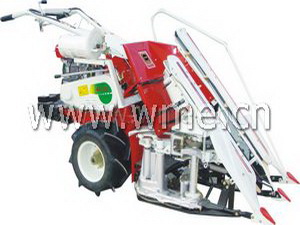

Reaper-binder 4K-50
reaper-binder 4K-50

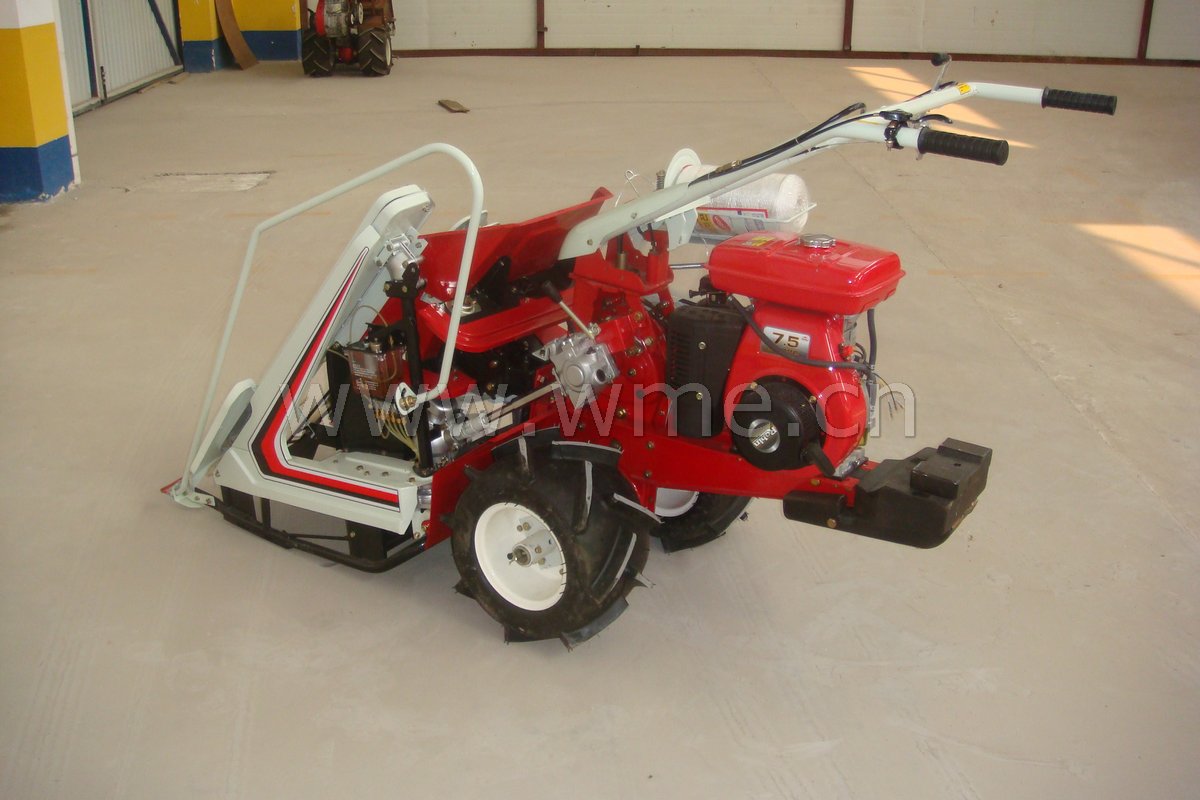

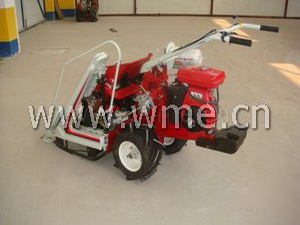

Reaper-binder 4K-50 With Robin Engine
reaper-binder 4K-50 with Robin engine

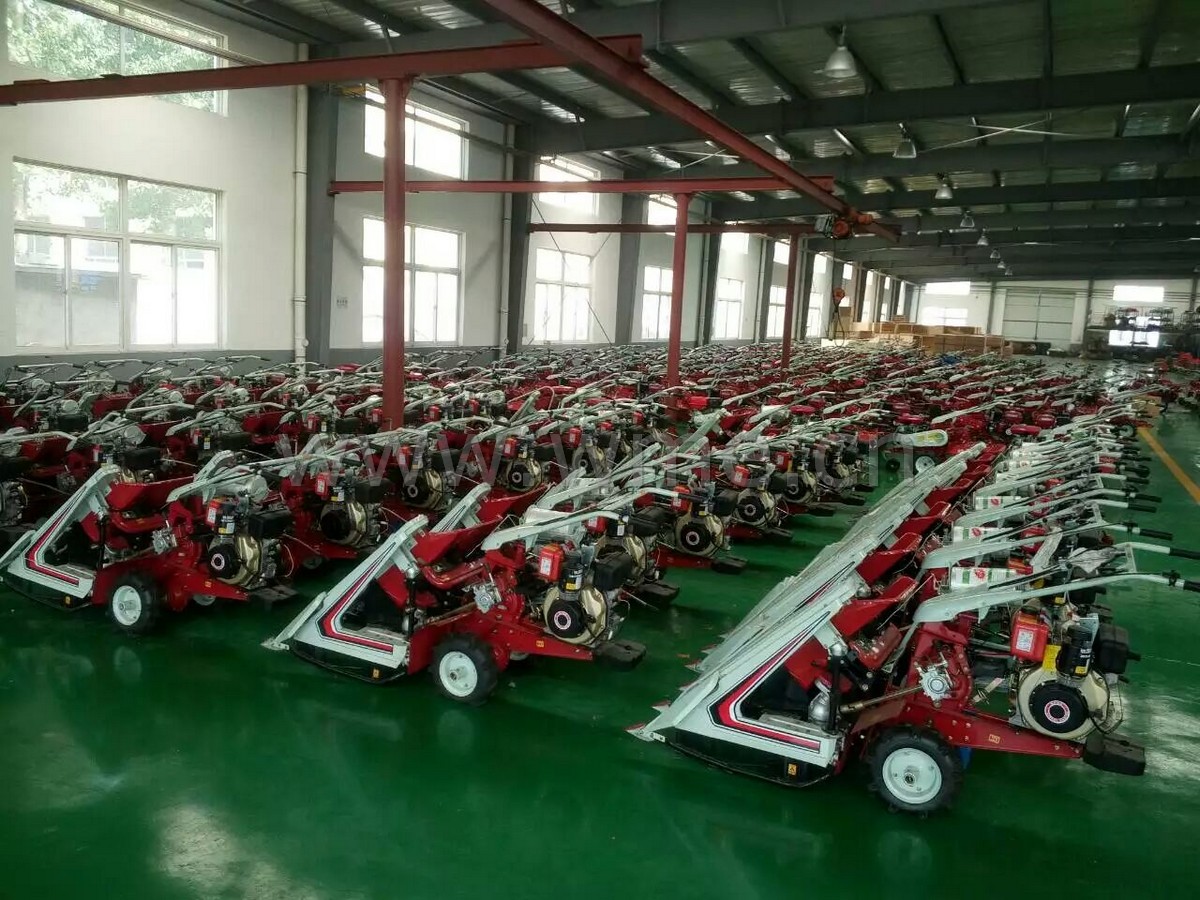

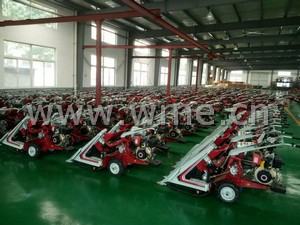

Reaper-binder 4K-50 in warehouse
reaper-binder 4K-50 in warehouse

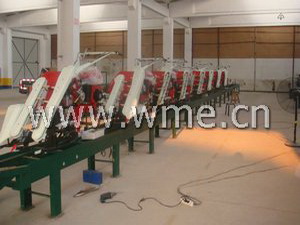

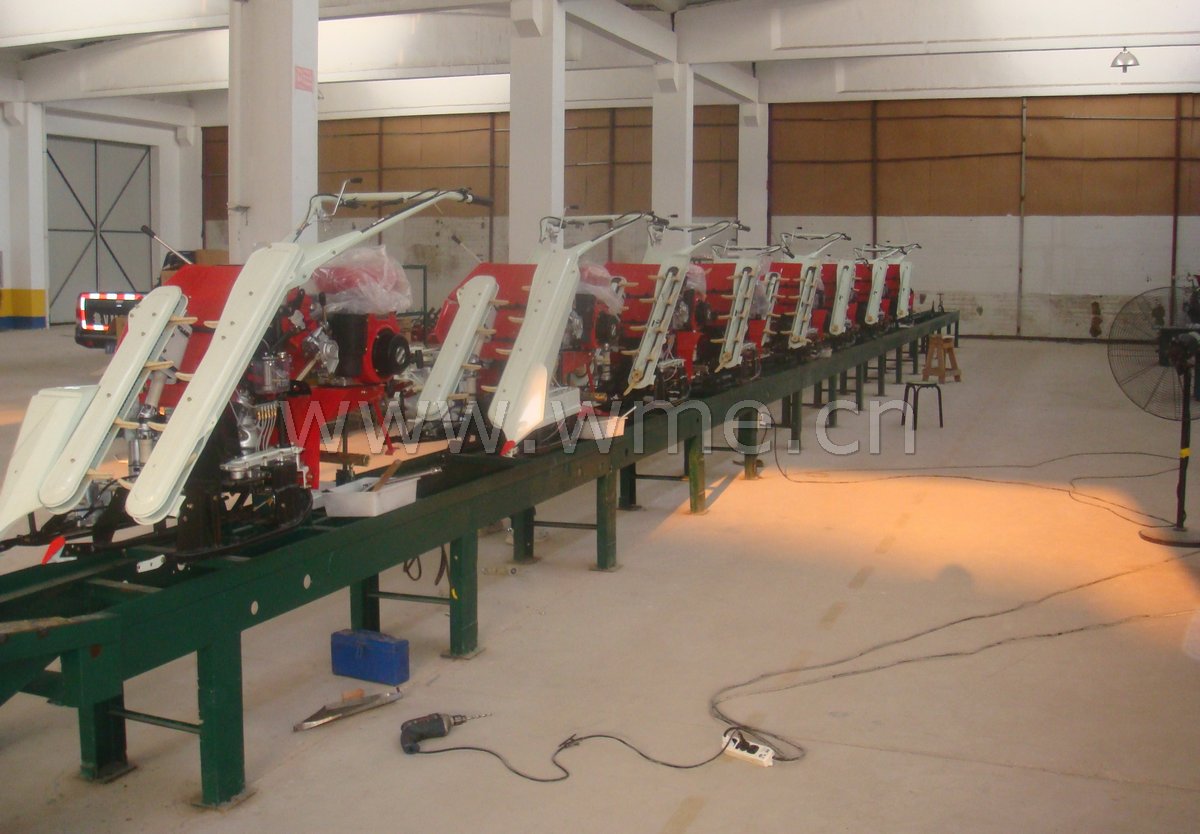

Reaper-binder Production Line
reaper-binder production line

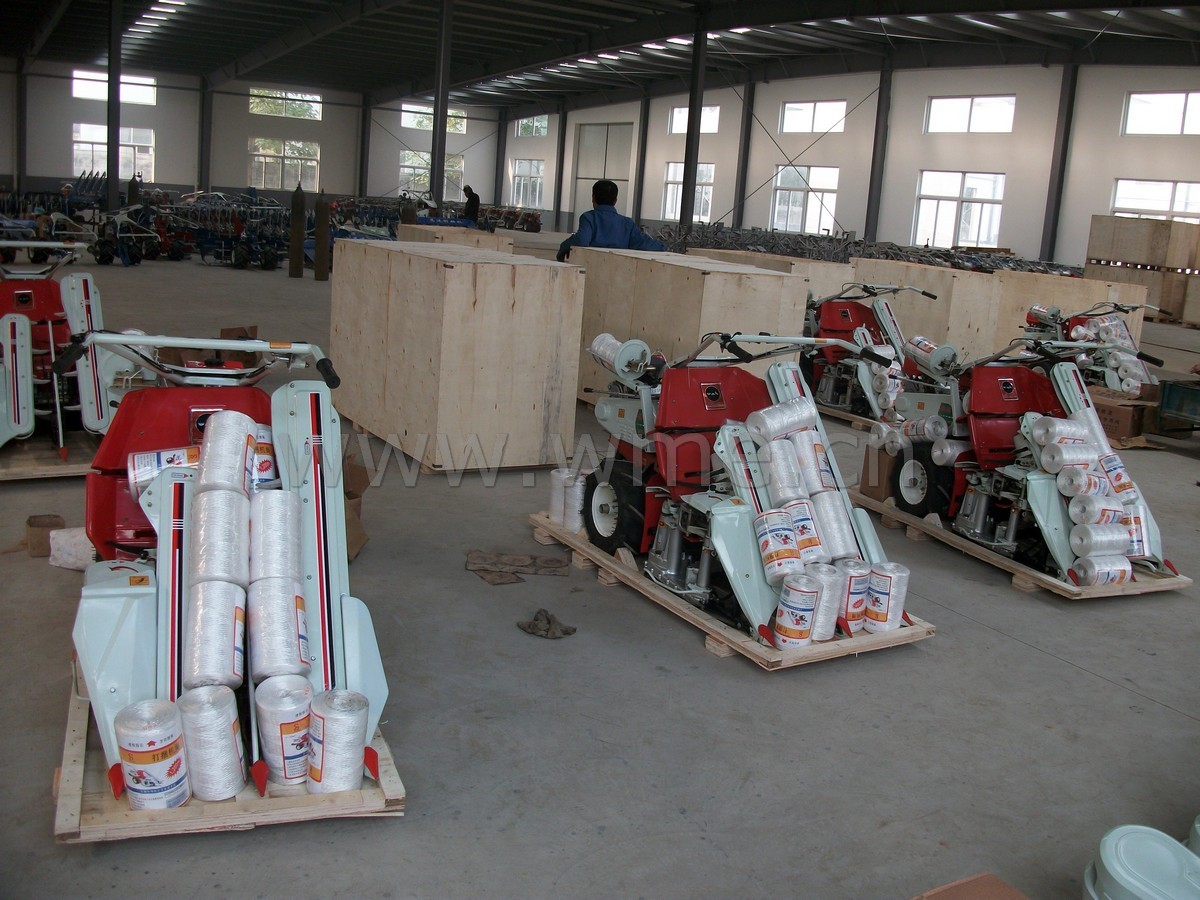

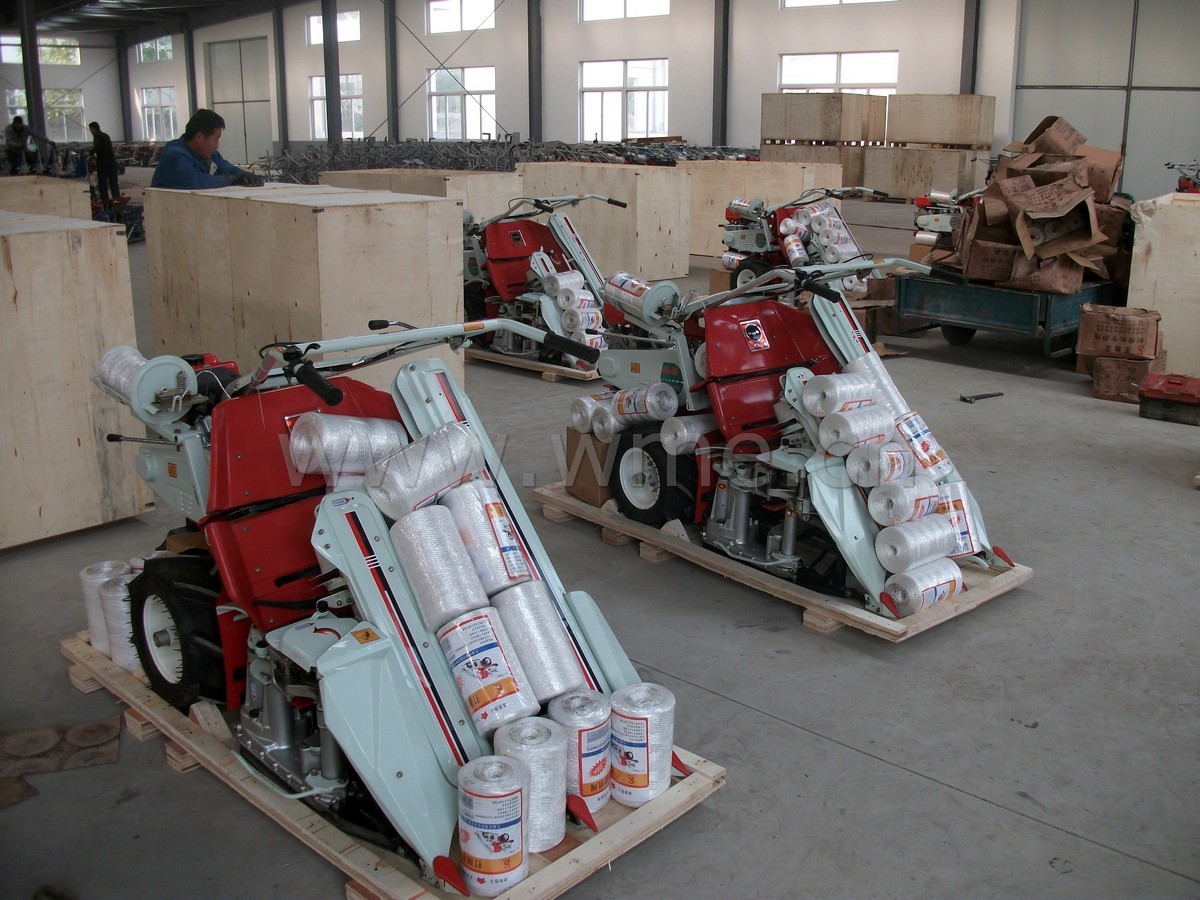

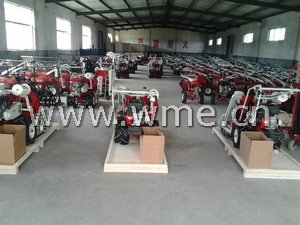

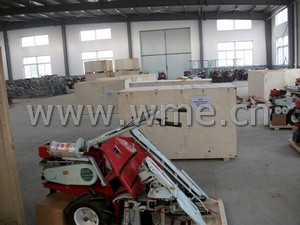

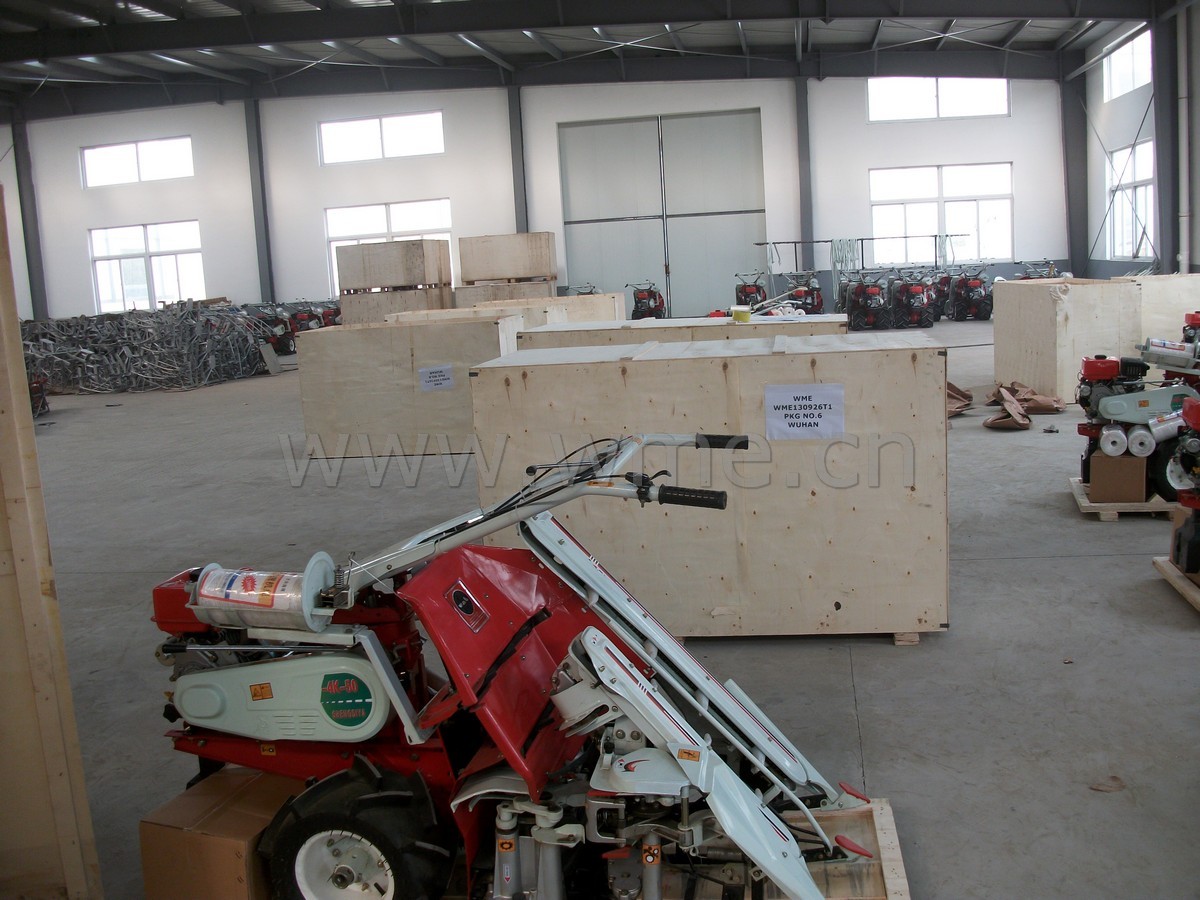

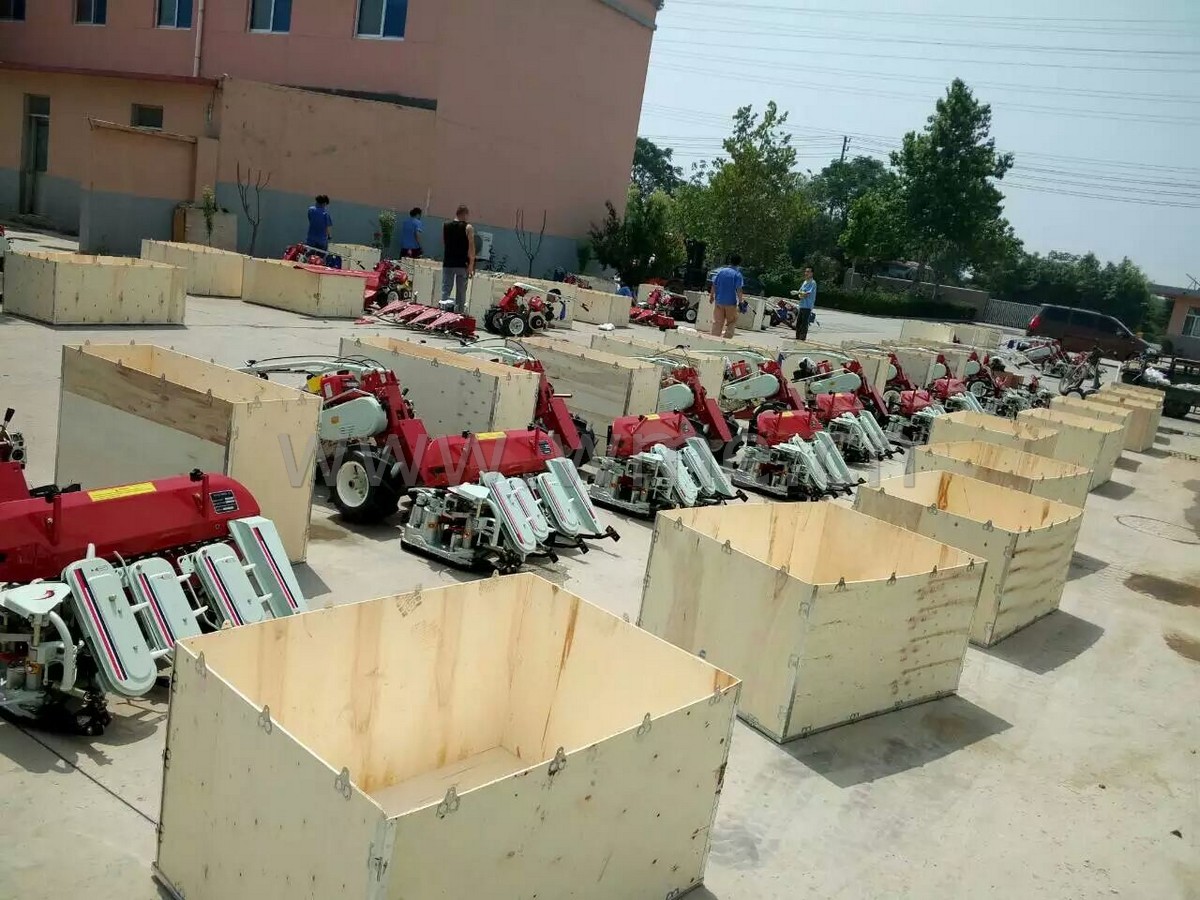

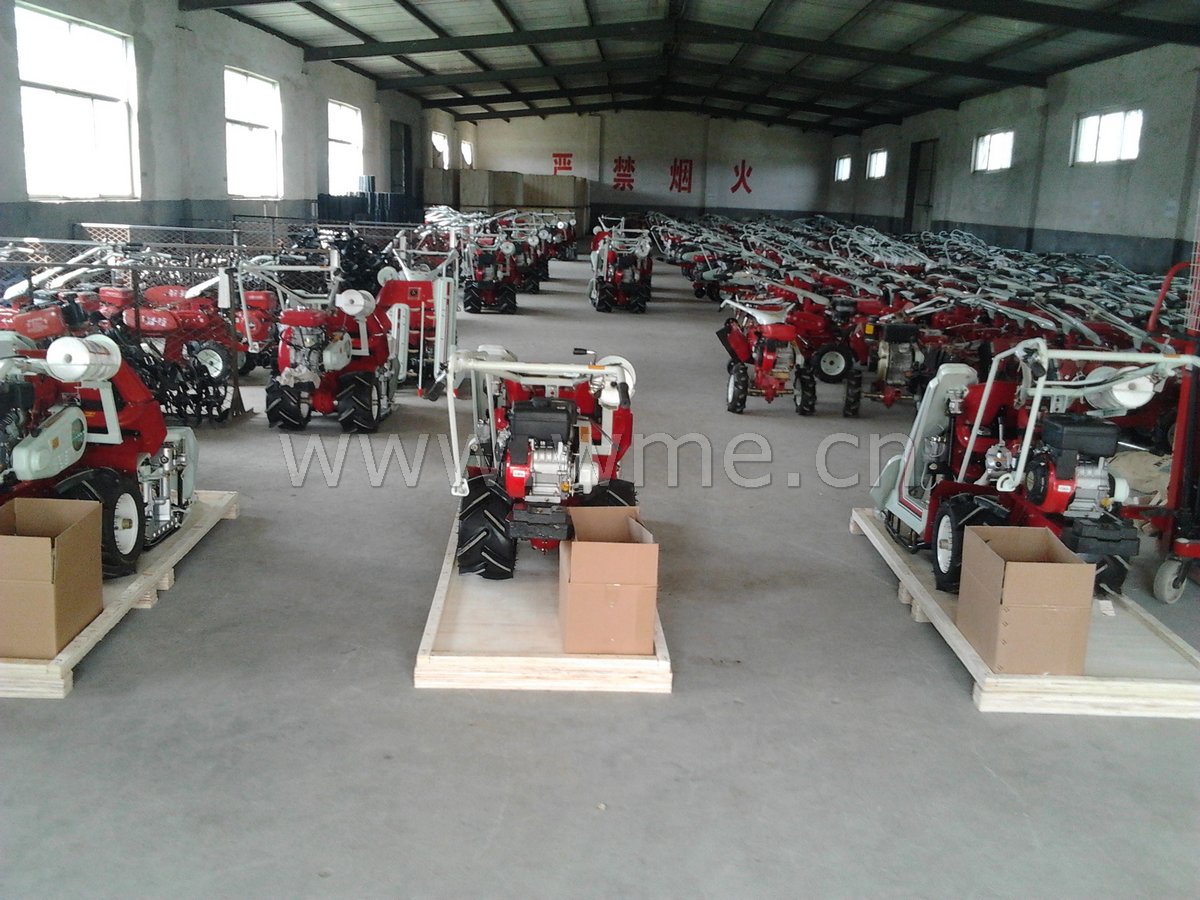

Reaper-binder warehouse
reaper-binder warehouse

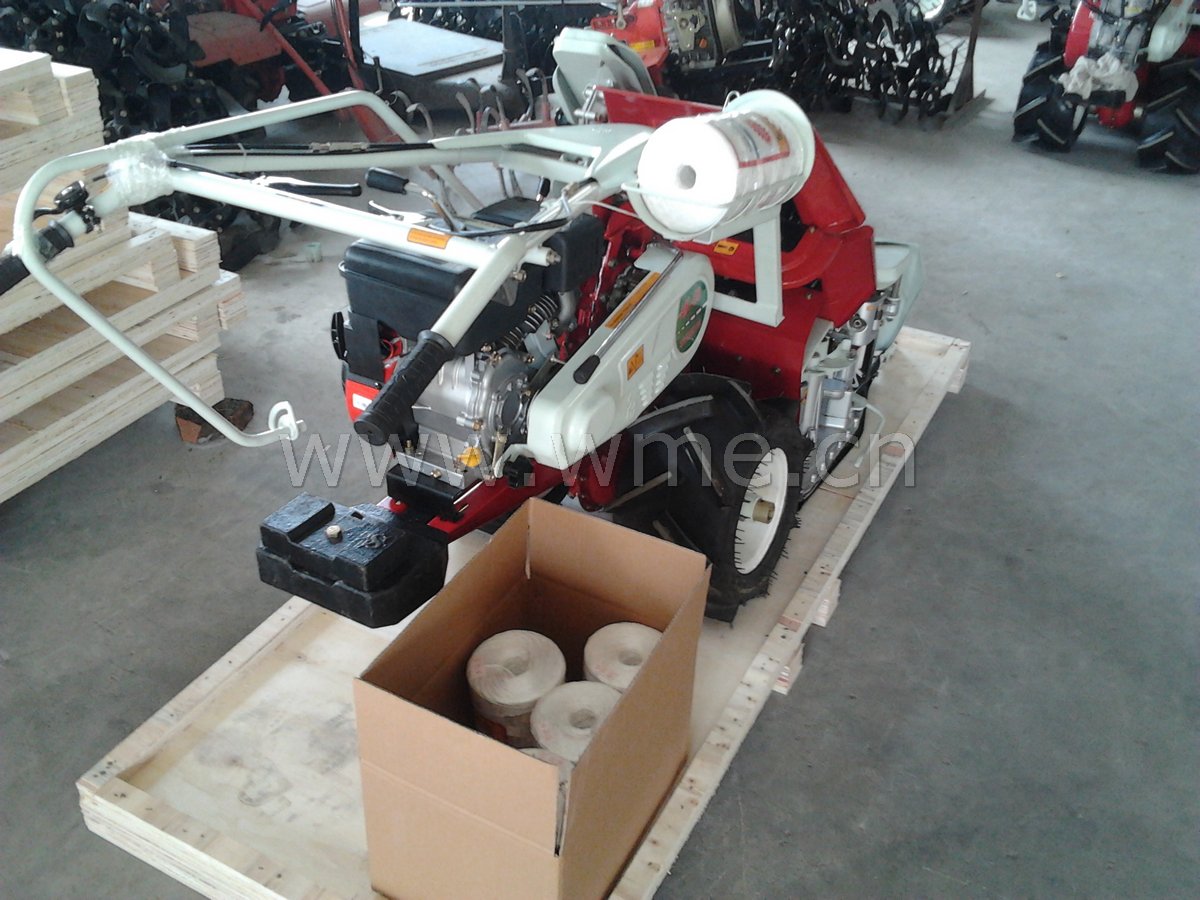

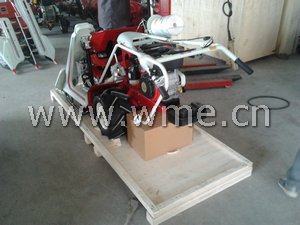

Reaper-binder inside the carton
reaper-binder inside the carton





Reaper-binder warehouse
reaper-binder warehouse
Reaper-binder warehouse
reaper-binder warehouse
Reaper-binder warehouse
reaper-binder warehouse

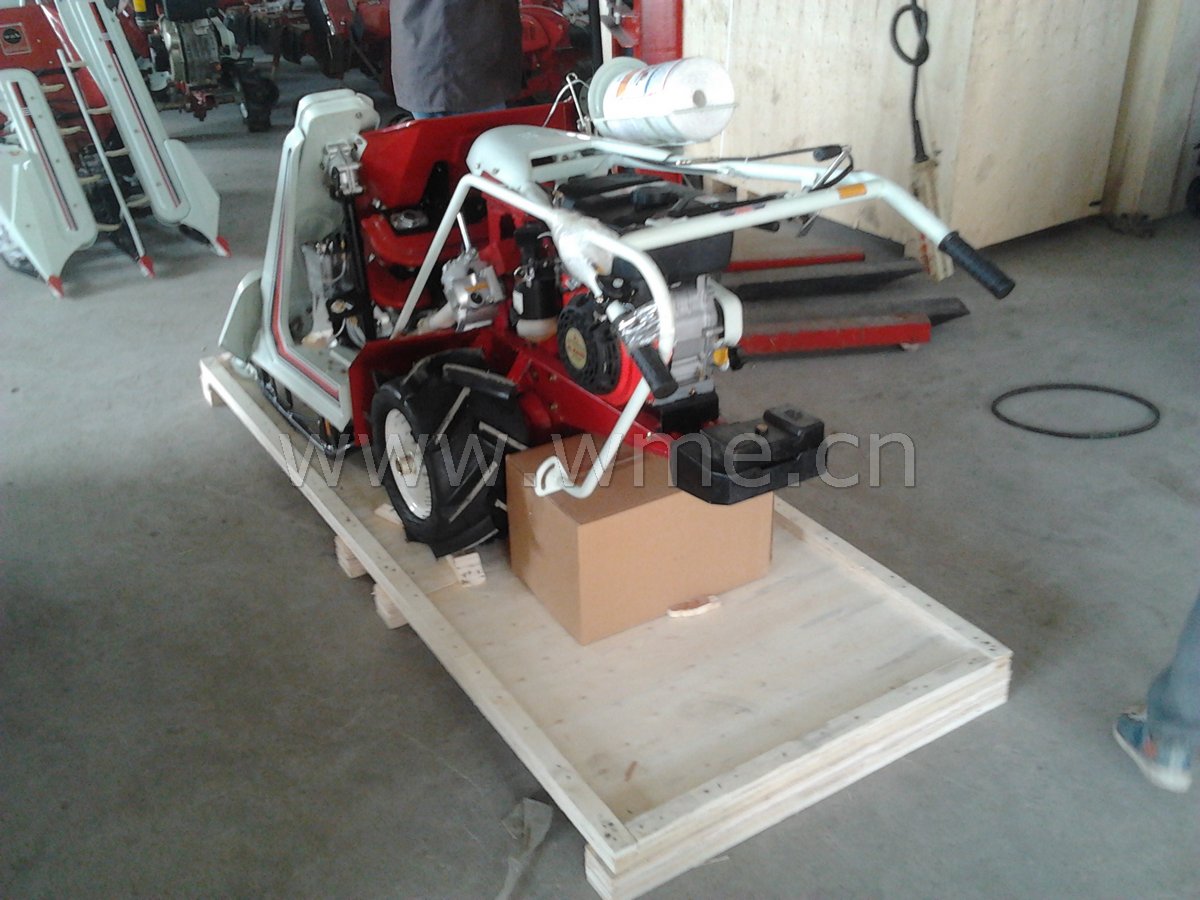

Reaper-binder inside the carton
reaper-binder inside the carton

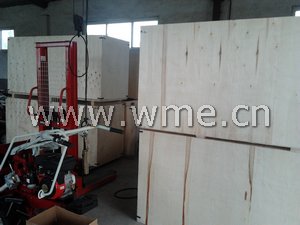

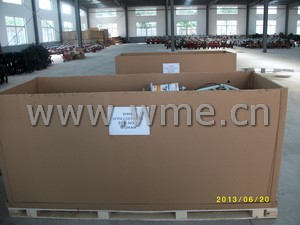

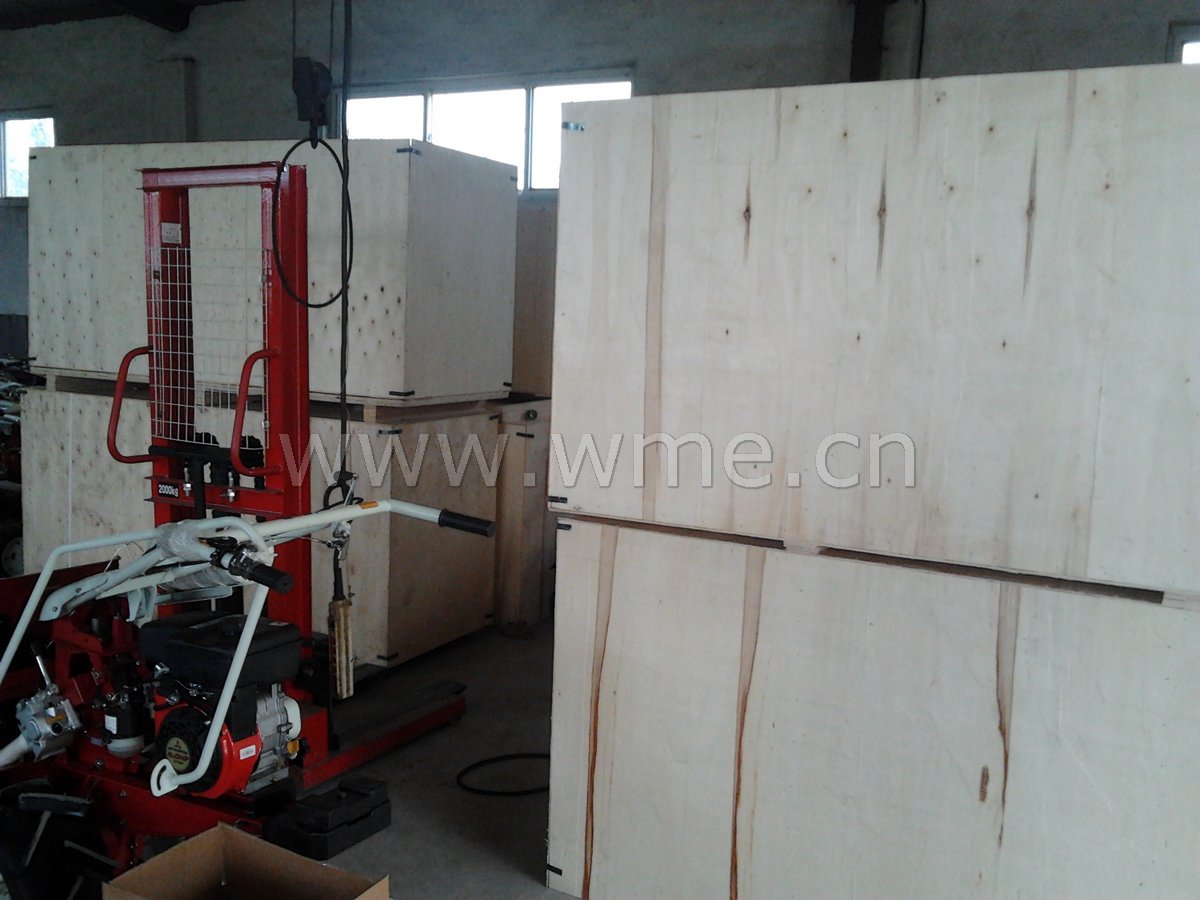

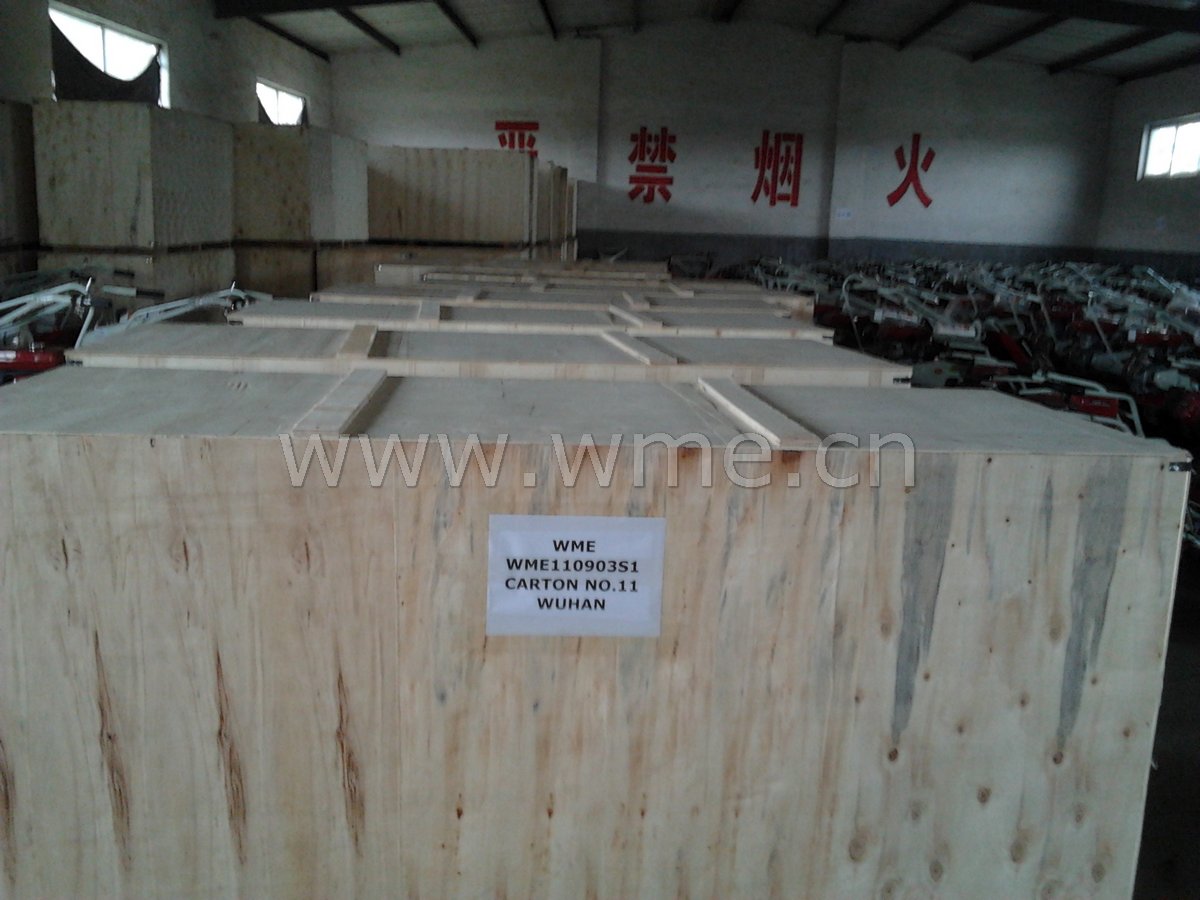

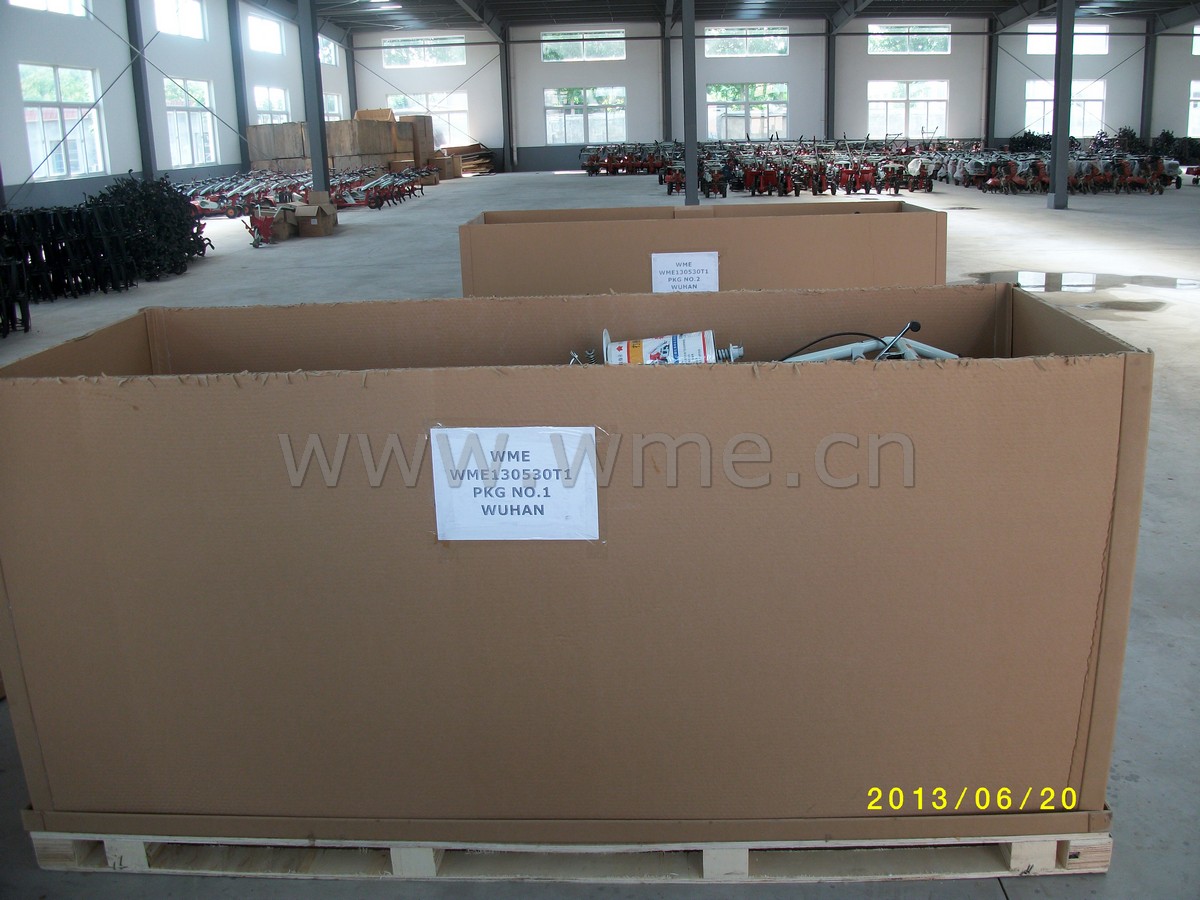

Reaper-binder carton
reaper-binder carton
Reaper-binder carton
reaper-binder carton

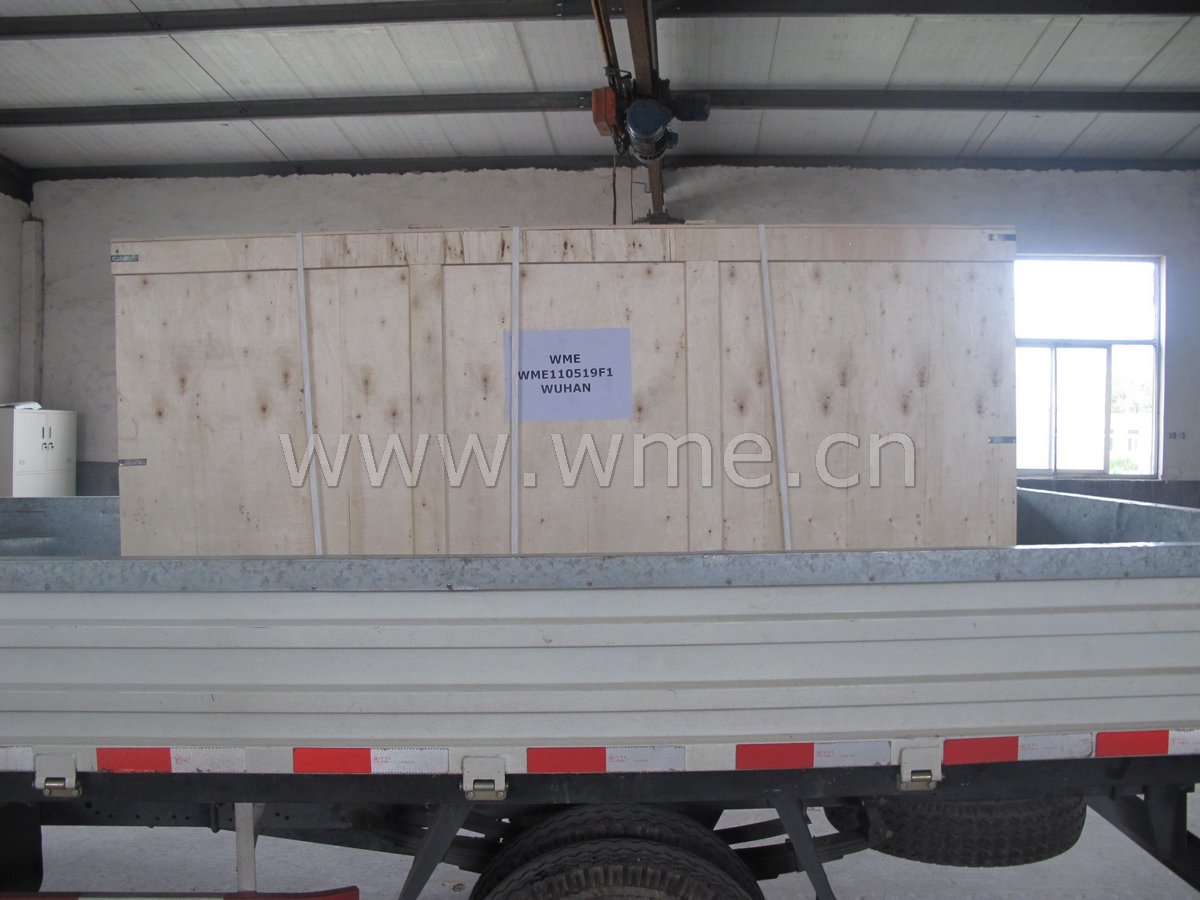

Reaper-binder shipment
reaper-binder shipment

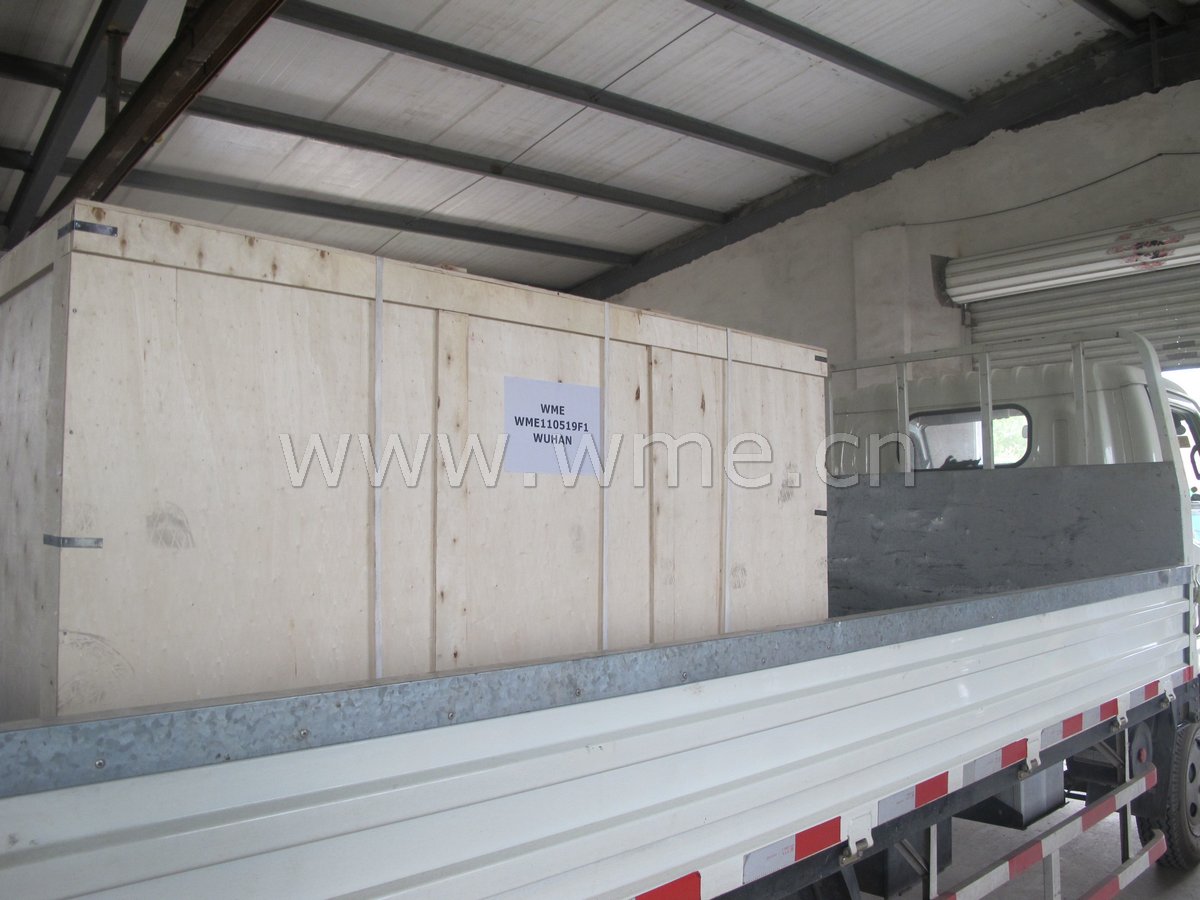

Reaper-binder shipment
reaper-binder shipment
Reaper-binder carton
reaper-binder carton

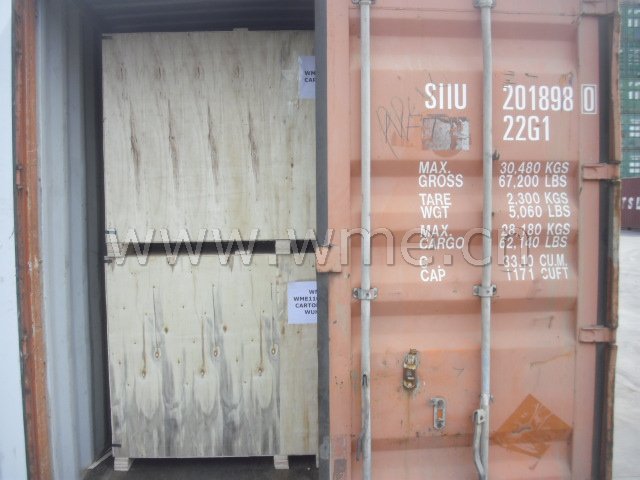

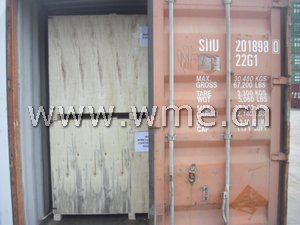

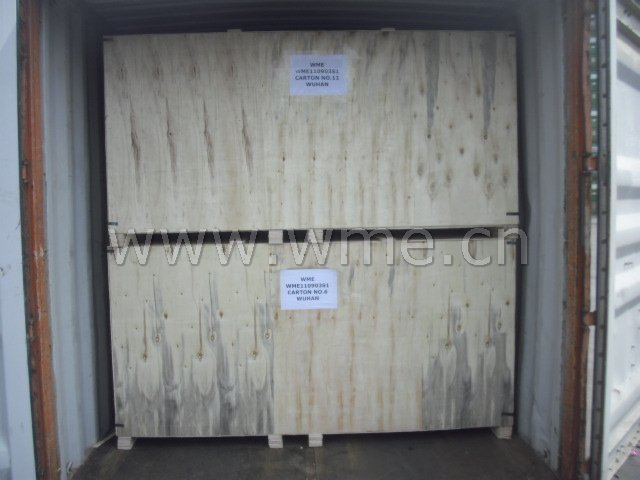

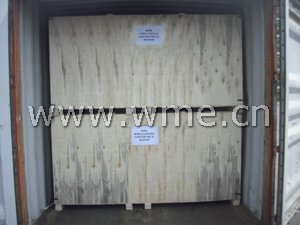

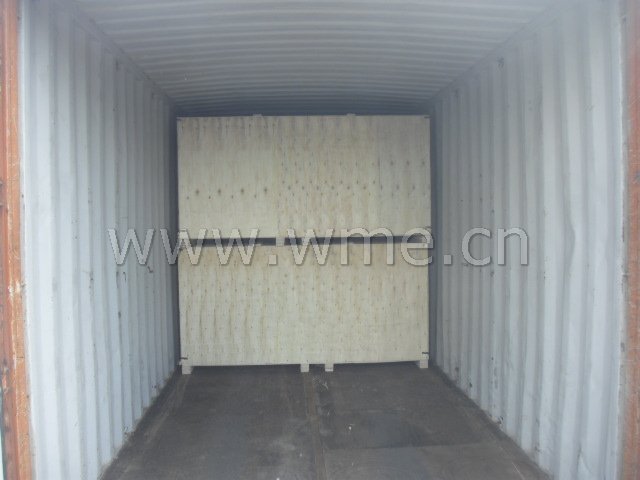

Reaper-binder container shipment
reaper-binder container shipment
Reaper-binder container shipment
reaper-binder container shipment
Reaper-binder container shipment
reaper-binder container shipment

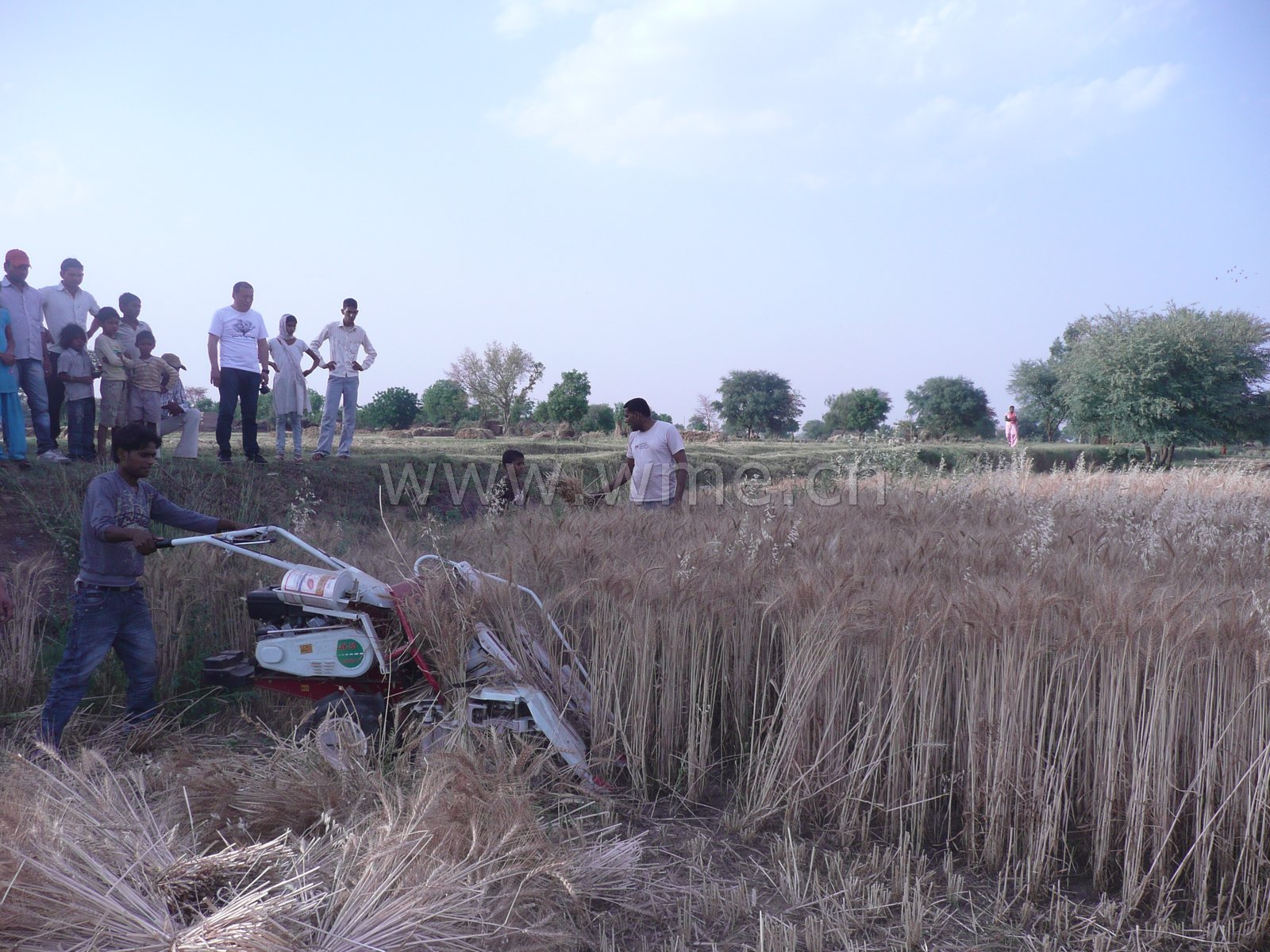

Reaper-binder 4K-50 operator no.1
reaper-binder 4K-50 operator no.1

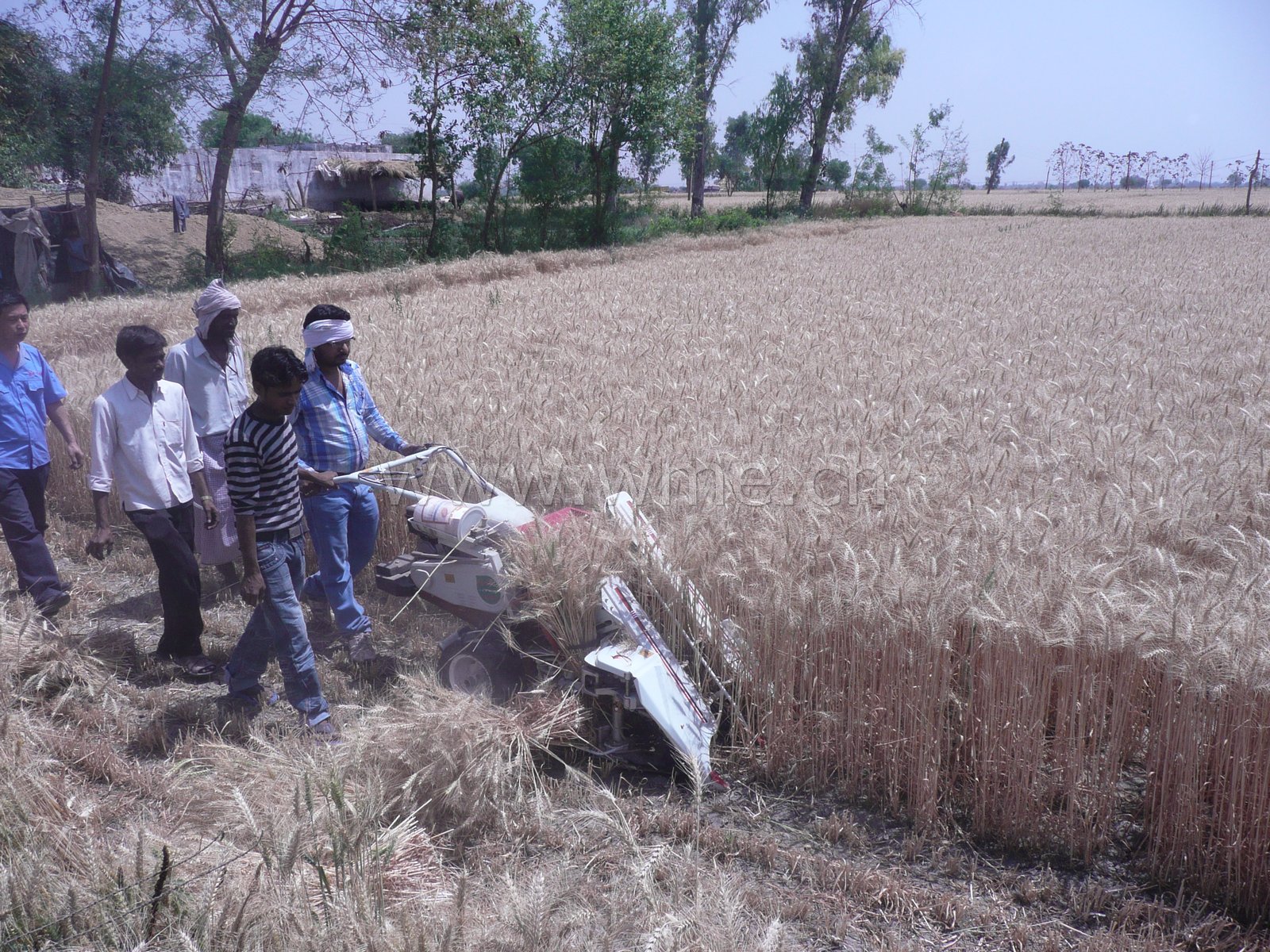

Reaper-binder 4K-50 operator no.2
reaper-binder 4K-50 operator no.2

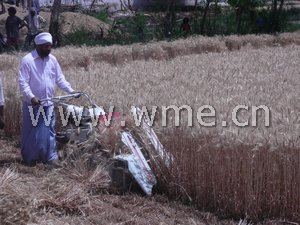

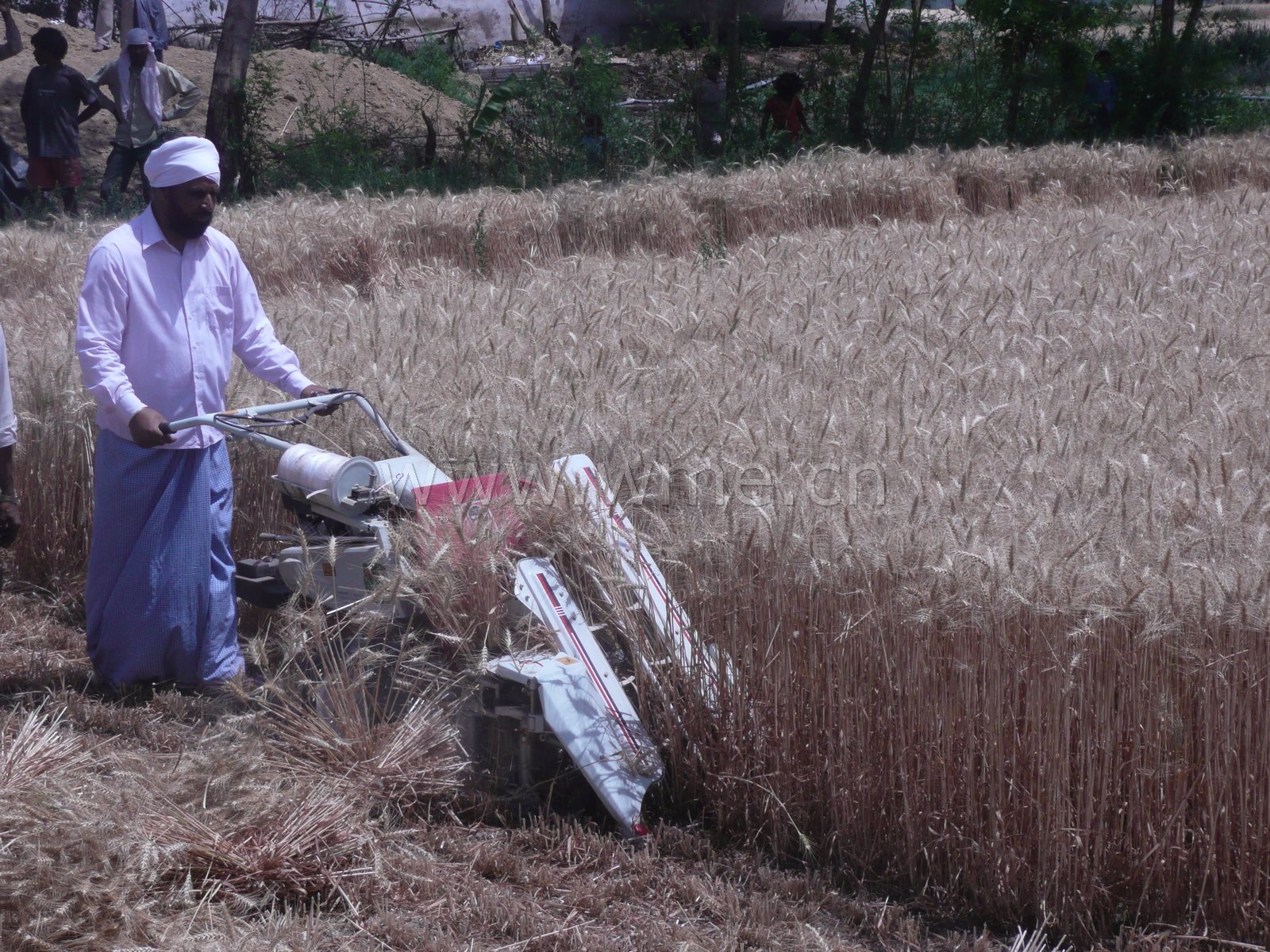

Reaper-binder 4K-50 operator no.3
reaper-binder 4K-50 operator no.3

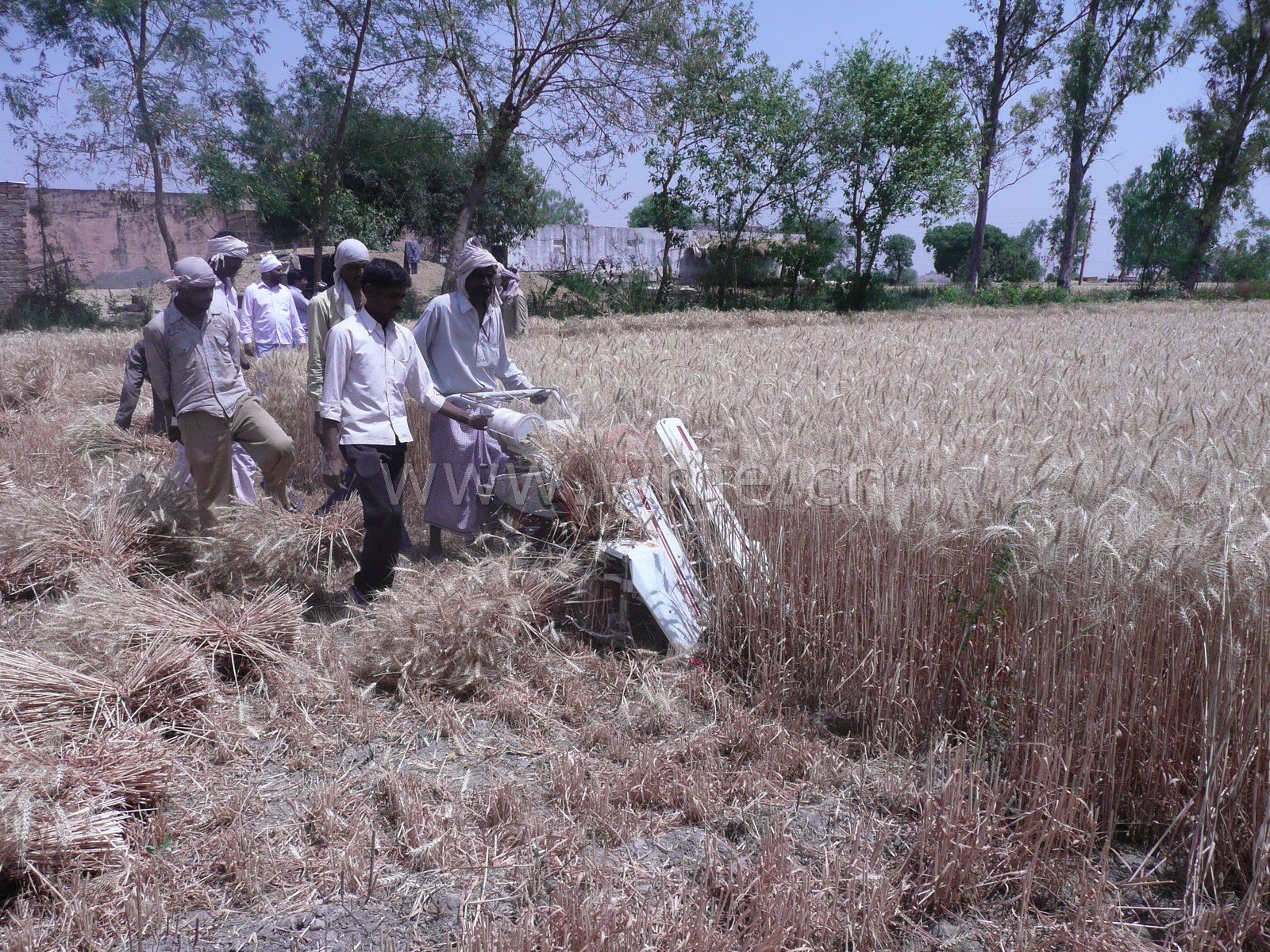

Reaper-binder 4K-50 operator no.4
reaper-binder 4K-50 operator no.4

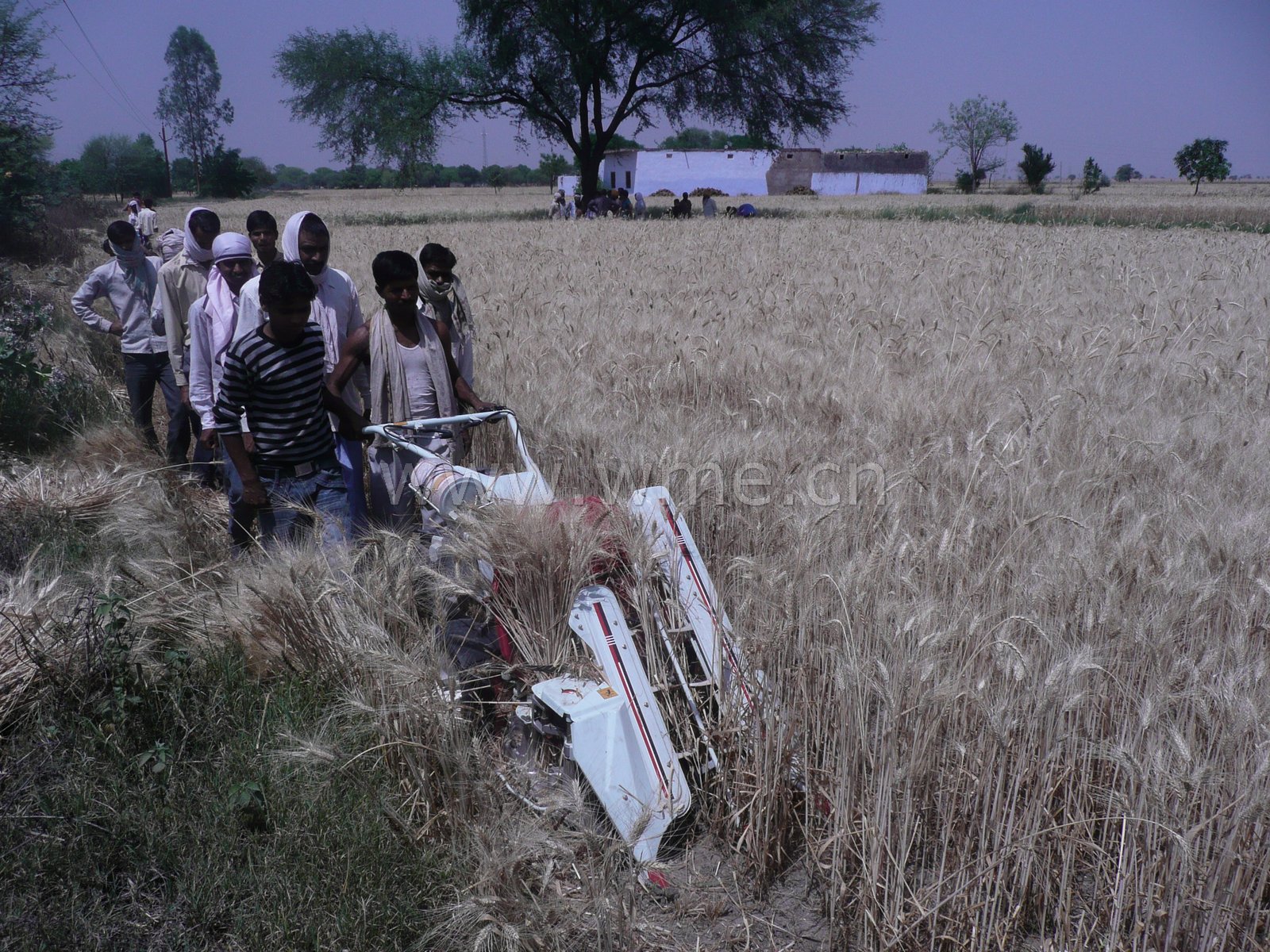

Reaper-binder 4K-50 operator no.5
reaper-binder 4K-50 operator no.5

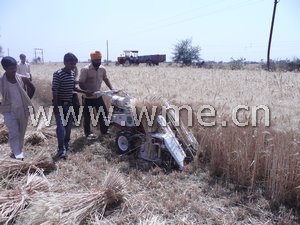

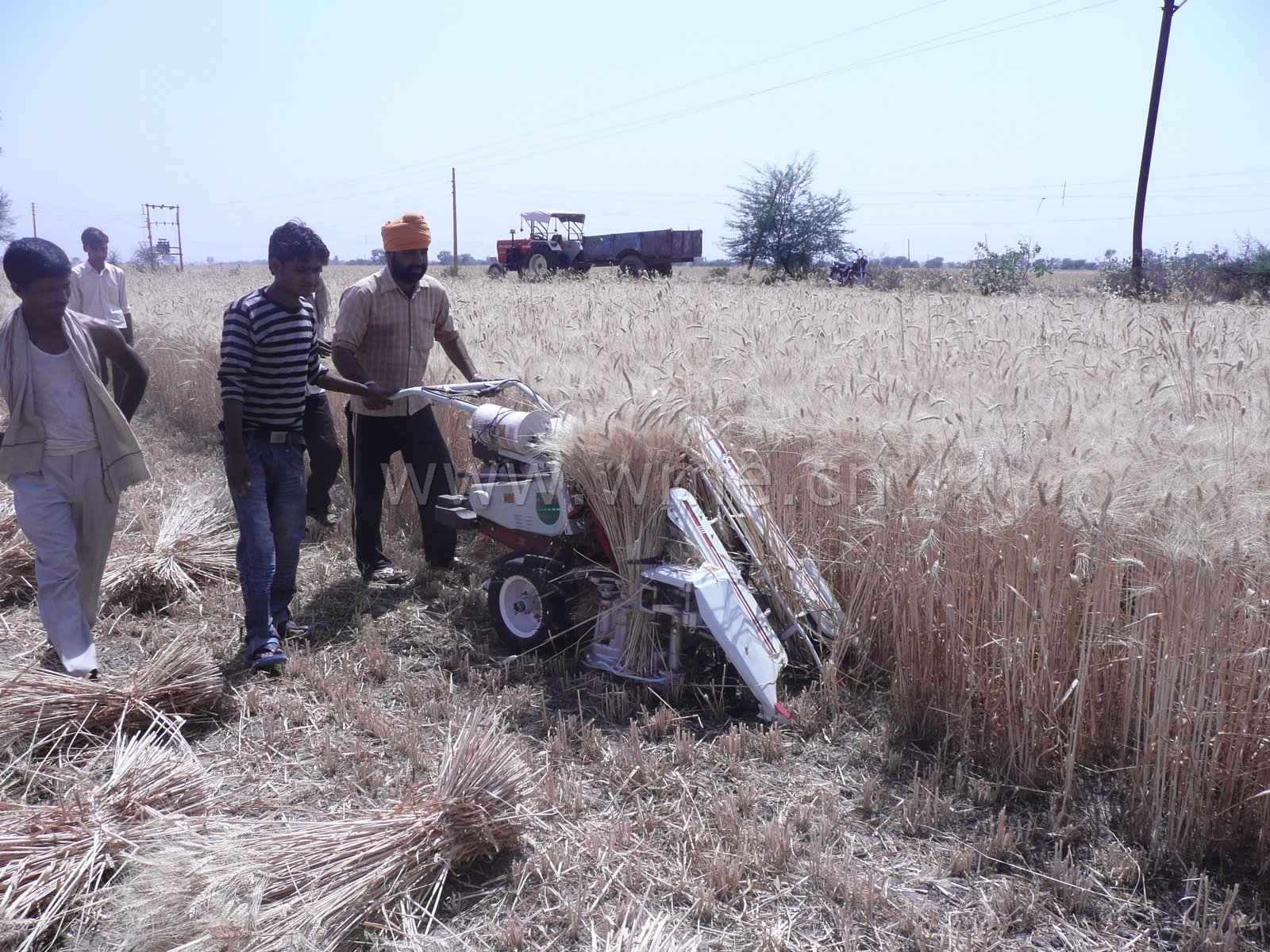

Reaper-binder 4K-50 operator no.6
reaper-binder 4K-50 operator no.6

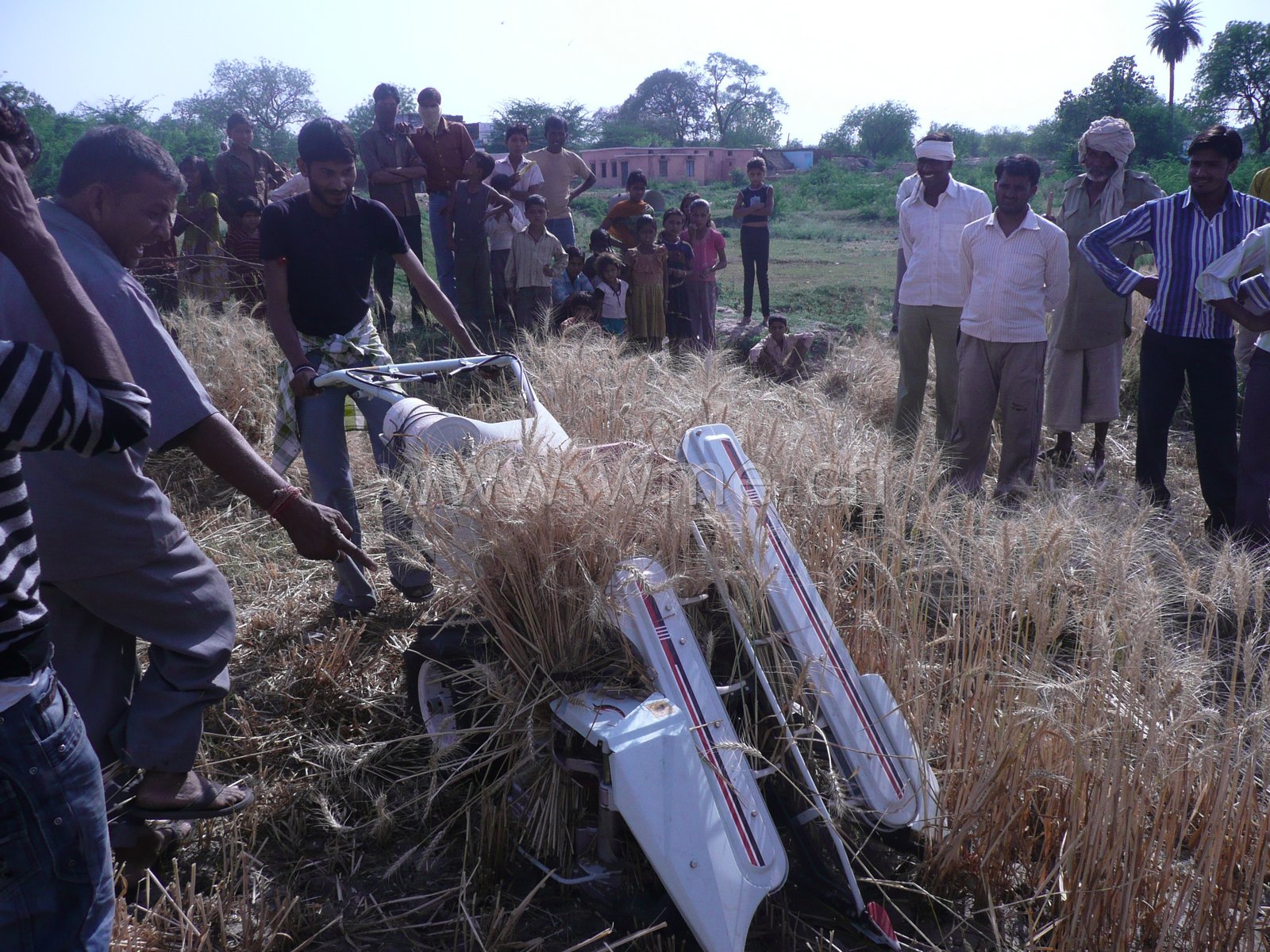

Reaper-binder 4K-50 operator no.7
reaper-binder 4K-50 operator no.7

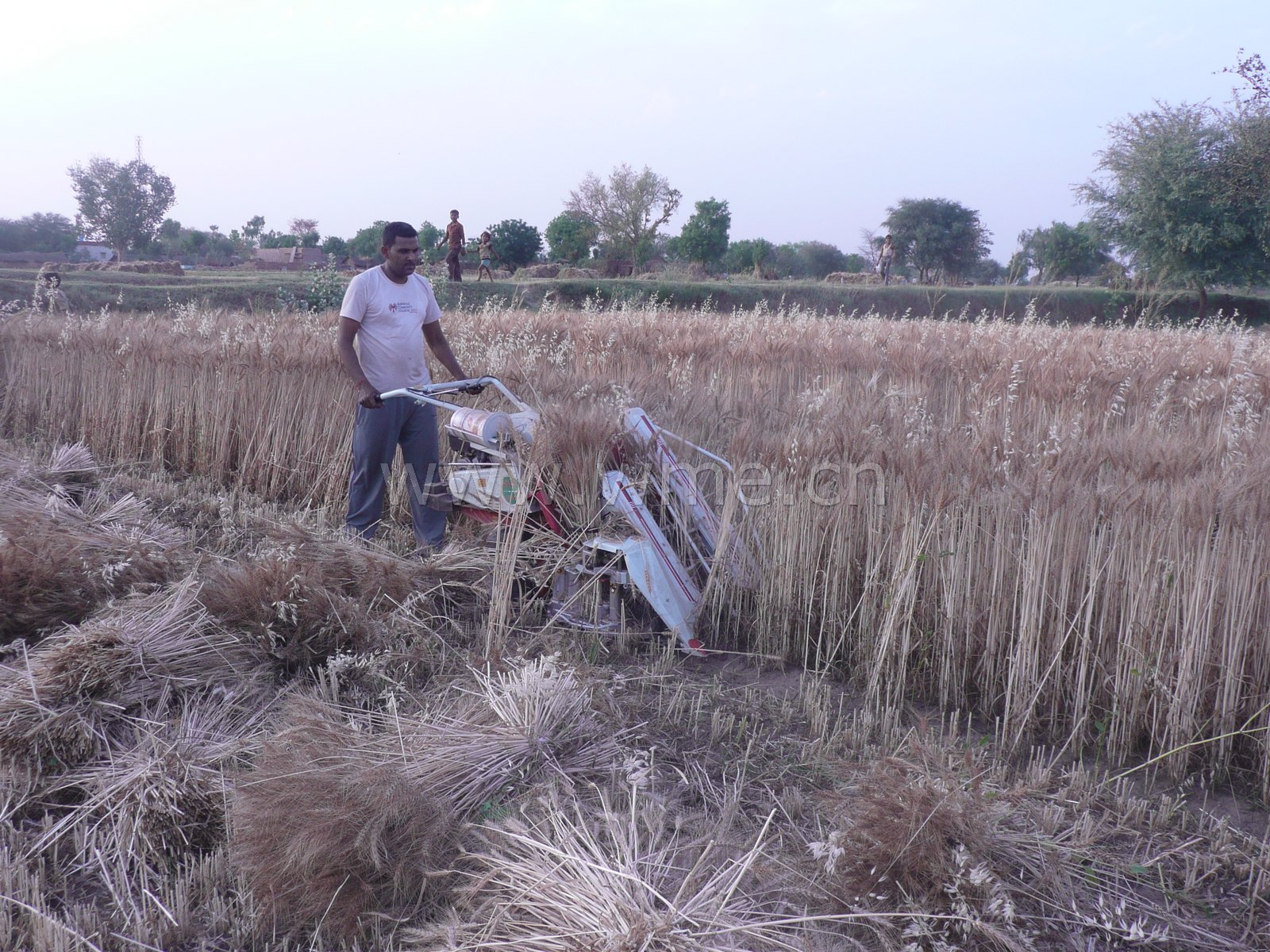

Reaper-binder 4K-50 operator no.8
reaper-binder 4K-50 operator no.8

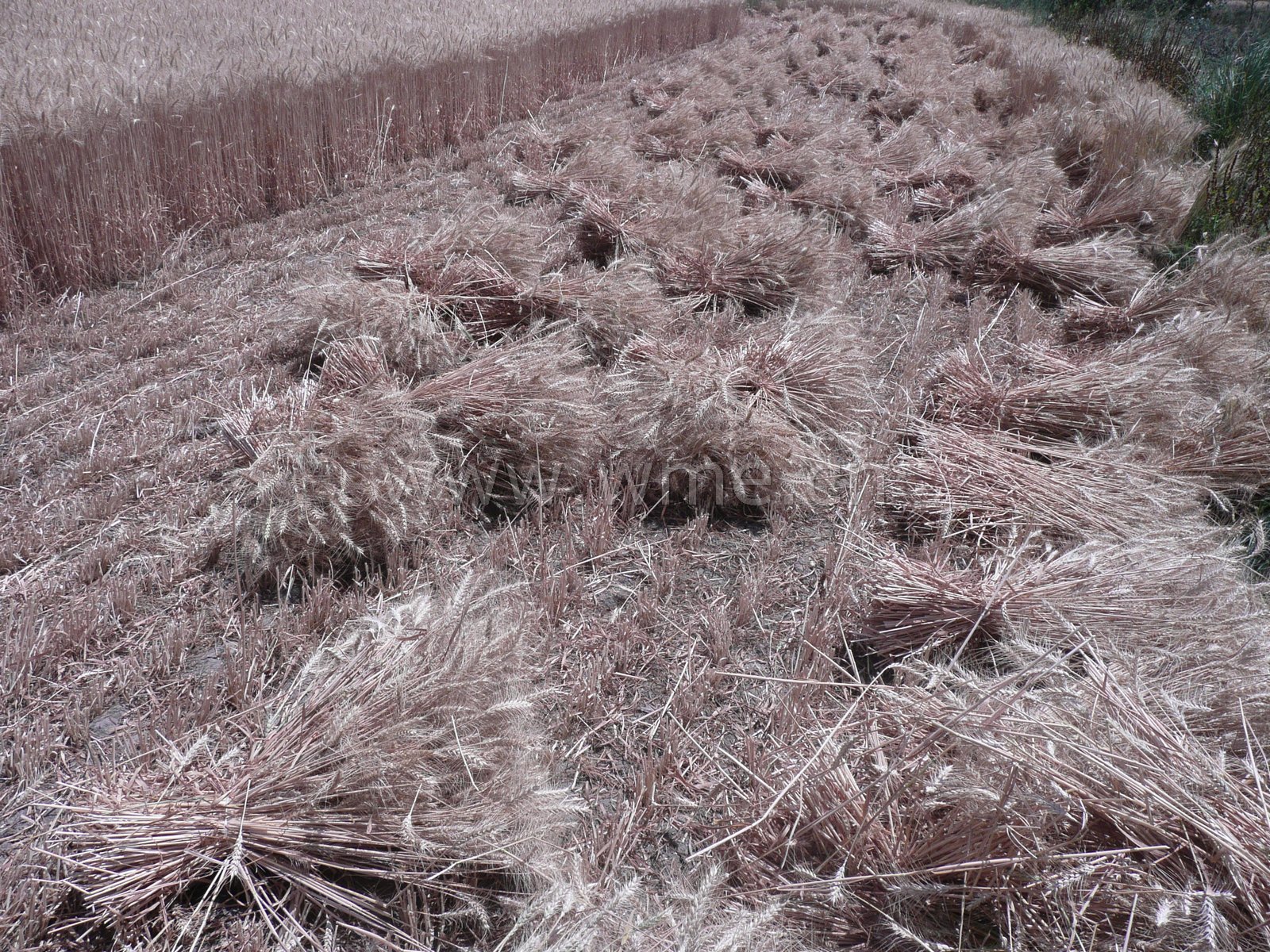

Reaper-binder 4K-50 harvesting result
reaper-binder 4K-50 harvesting result





Reaper-binder 4K-50 harvesting result
reaper-binder 4K-50 harvesting result
Reaper-binder 4K-50 harvesting result
reaper-binder 4K-50 harvesting result
Reaper-binder 4K-50 harvesting result
reaper-binder 4K-50 harvesting result

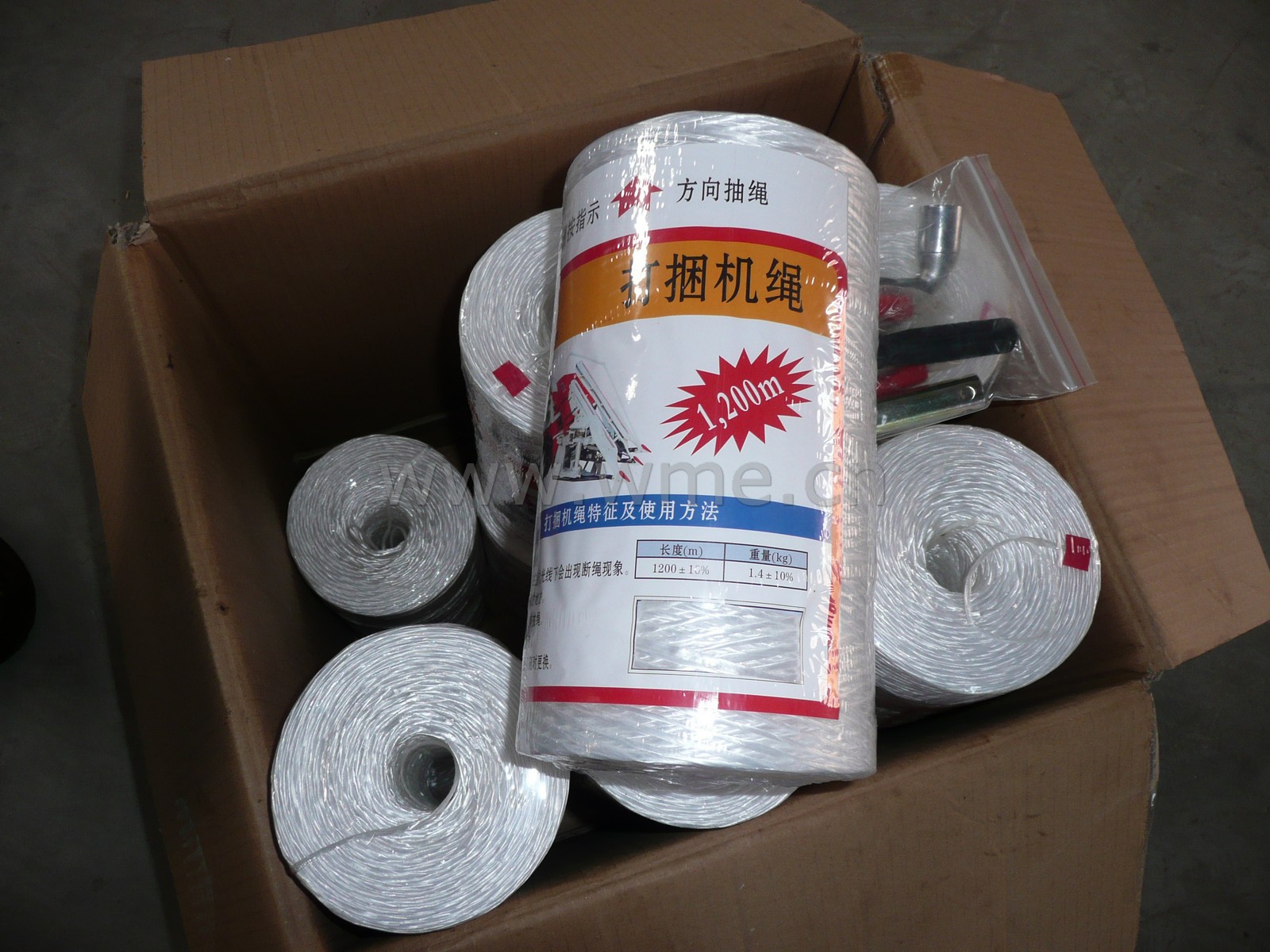

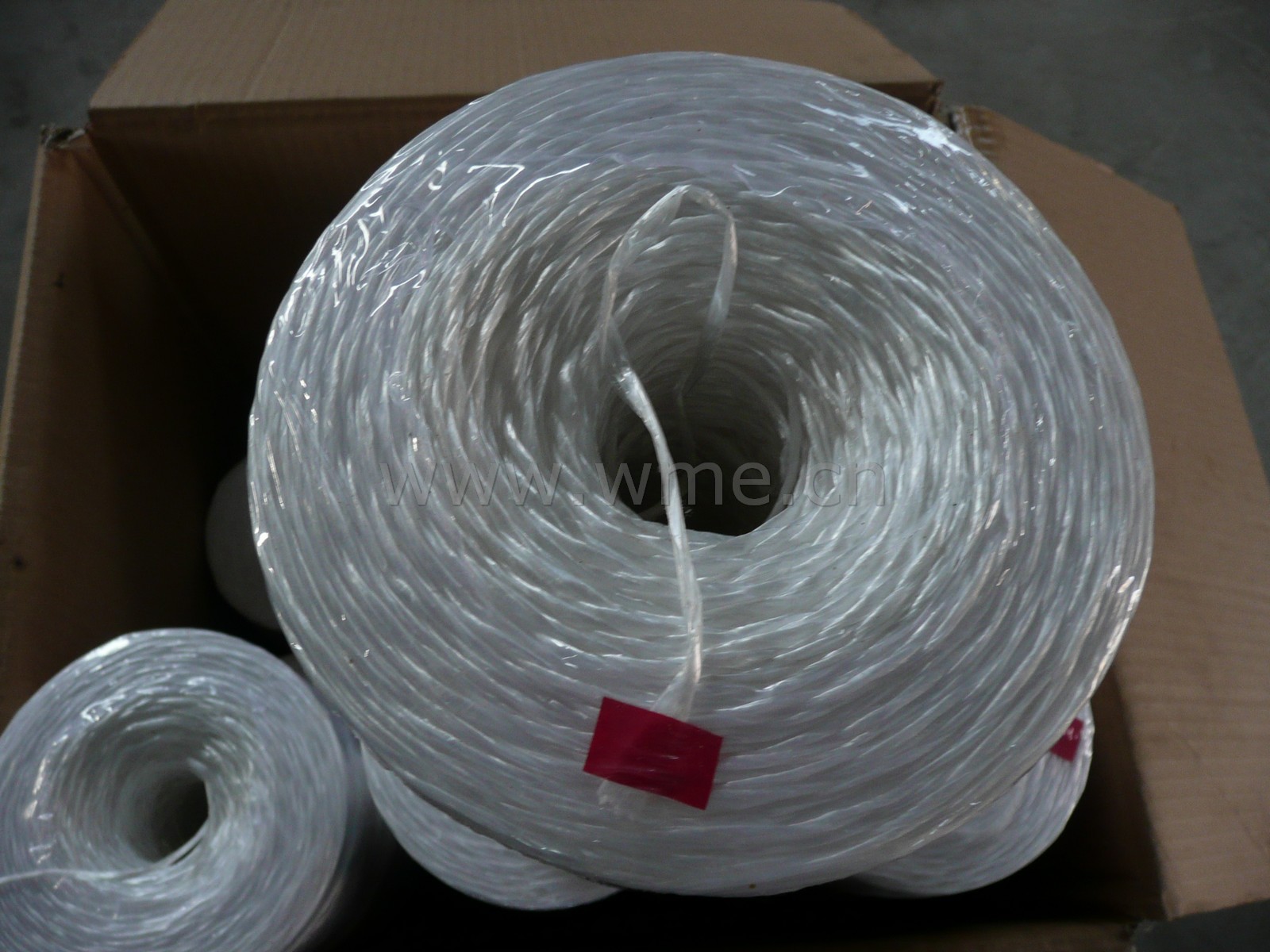

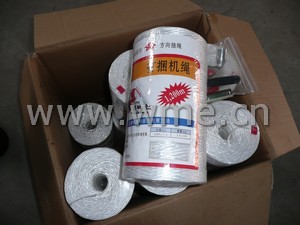

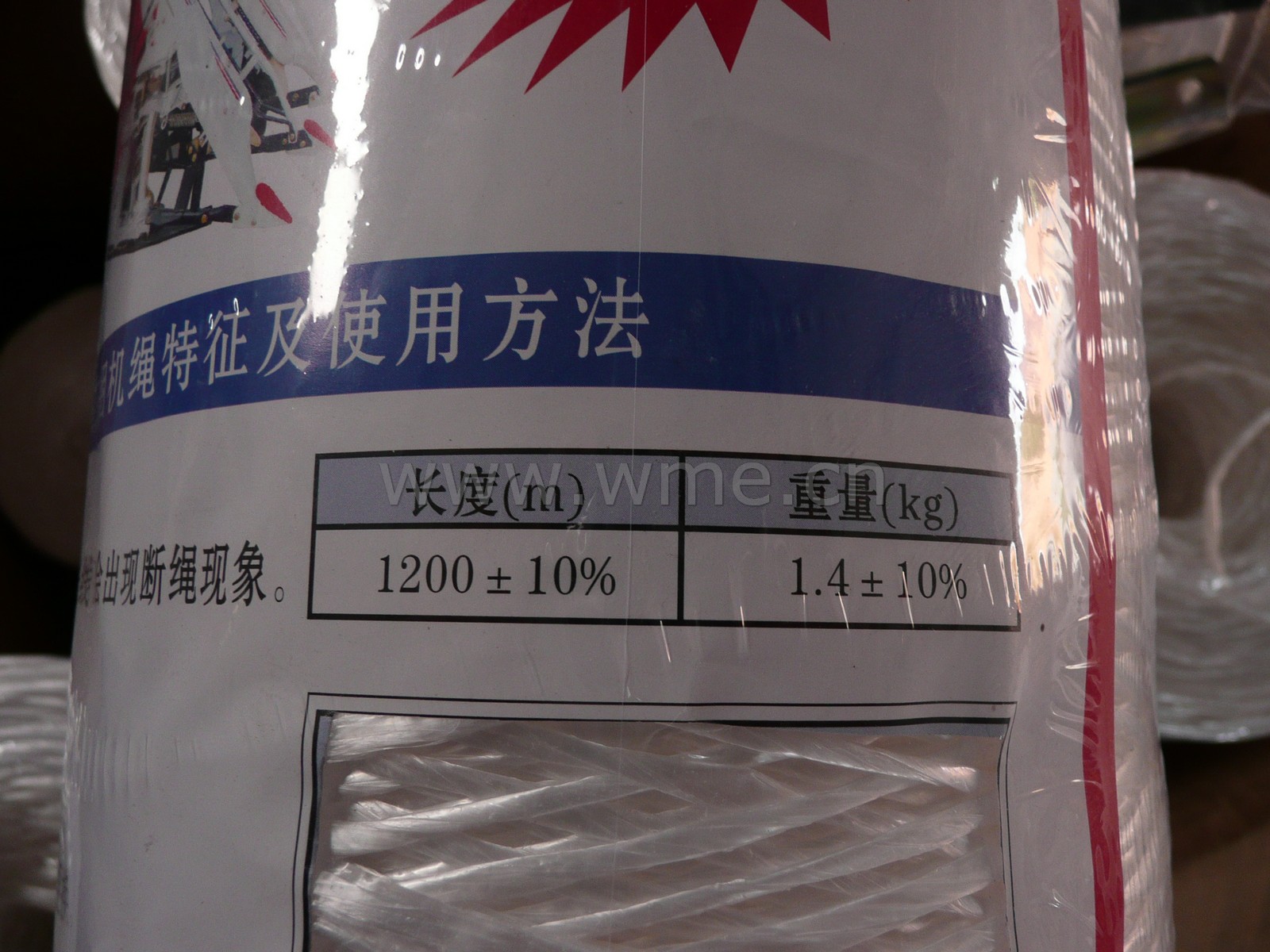

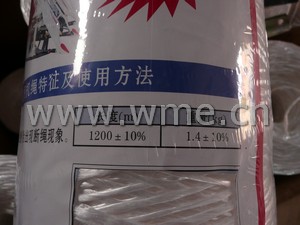

Reaper-binder 4K-50 rope
reaper-binder 4K-50 rope
Reaper-binder 4K-50 rope
reaper-binder 4K-50 rope
Reaper-binder 4K-50 rope
reaper-binder 4K-50 rope

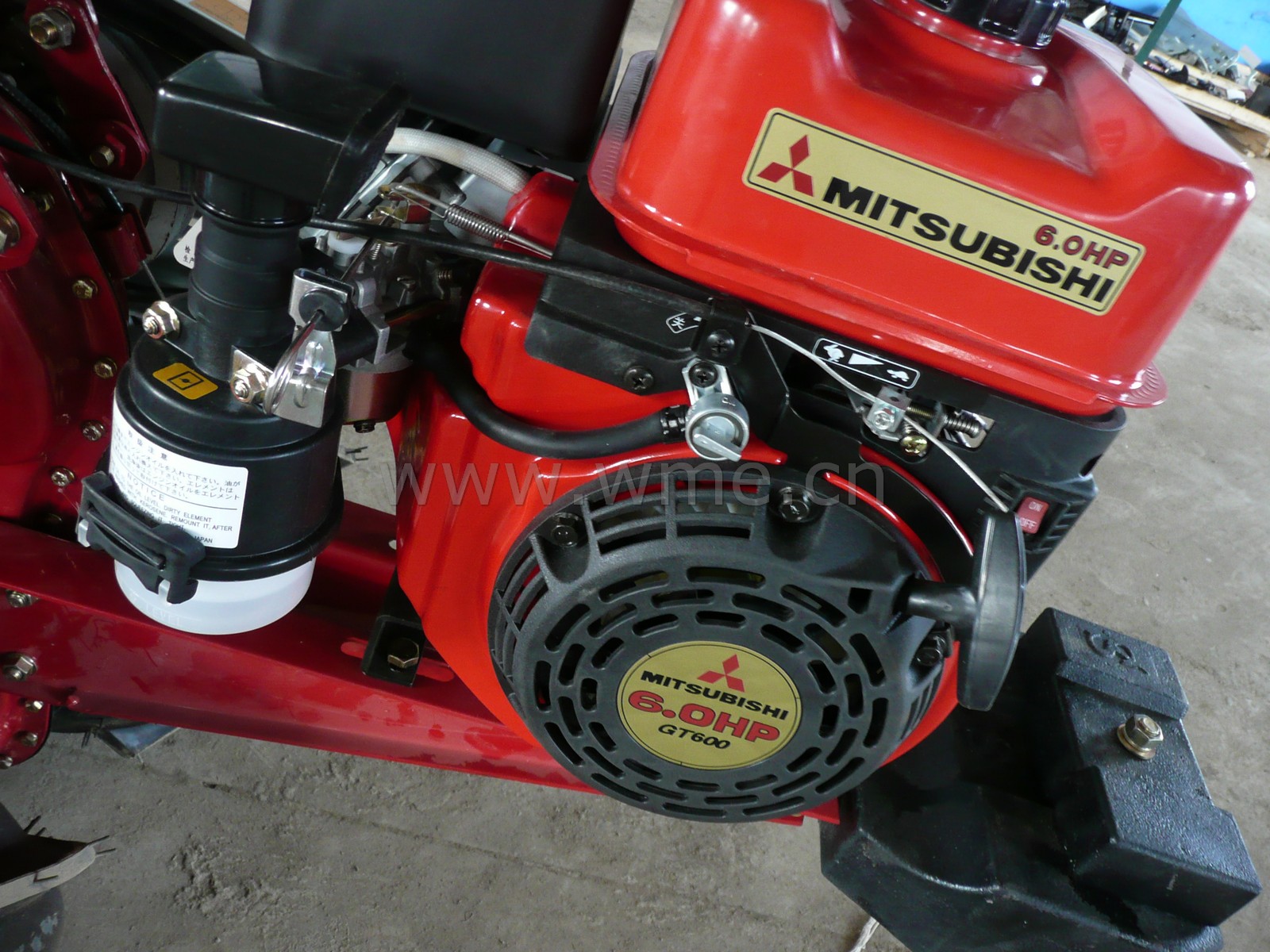

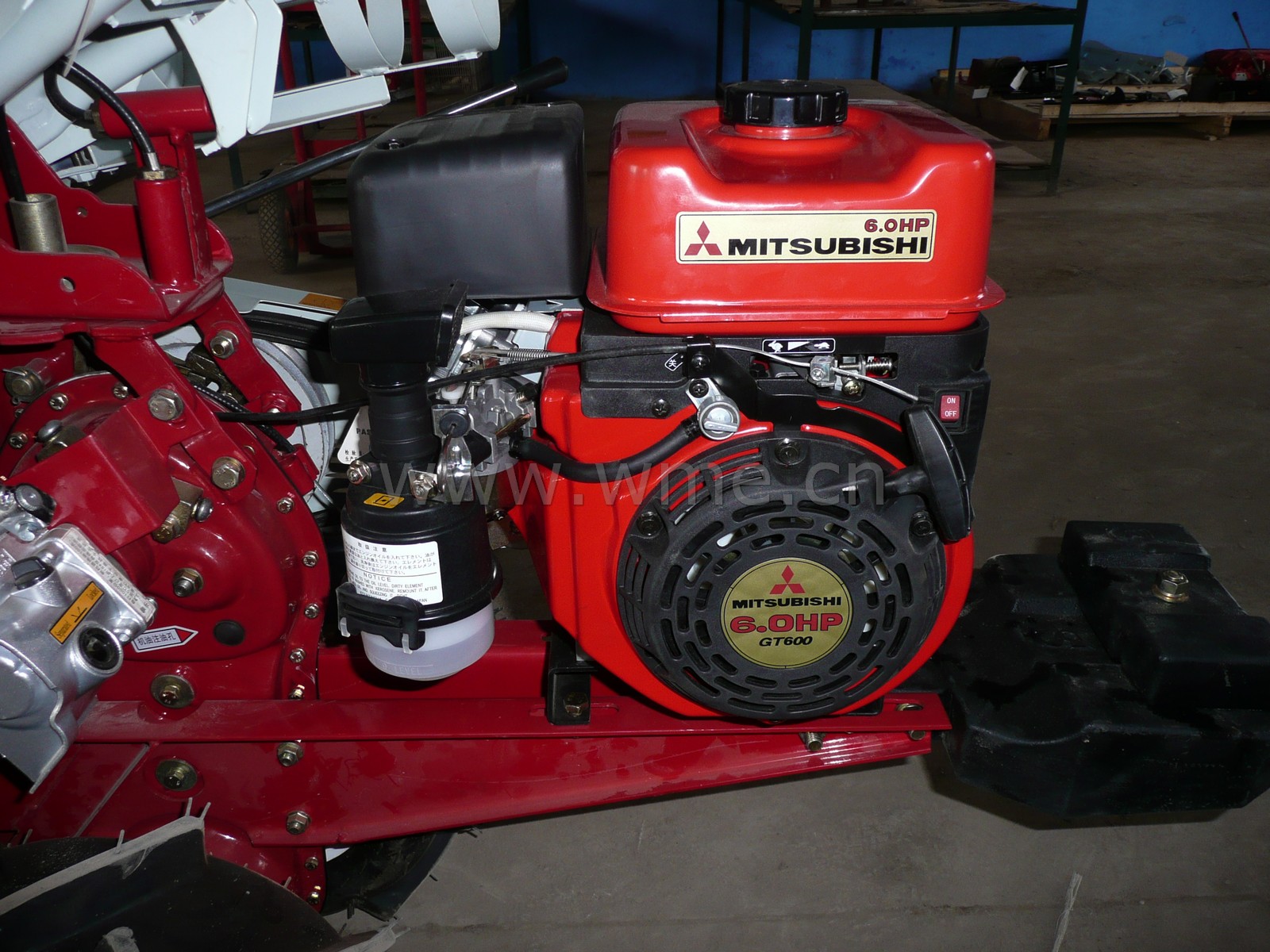

Reaper-binder 4K-50 engine
reaper-binder 4K-50 Mitsubishi engine
Reaper-binder 4K-50 engine
reaper-binder 4K-50 Mitsubishi engine
