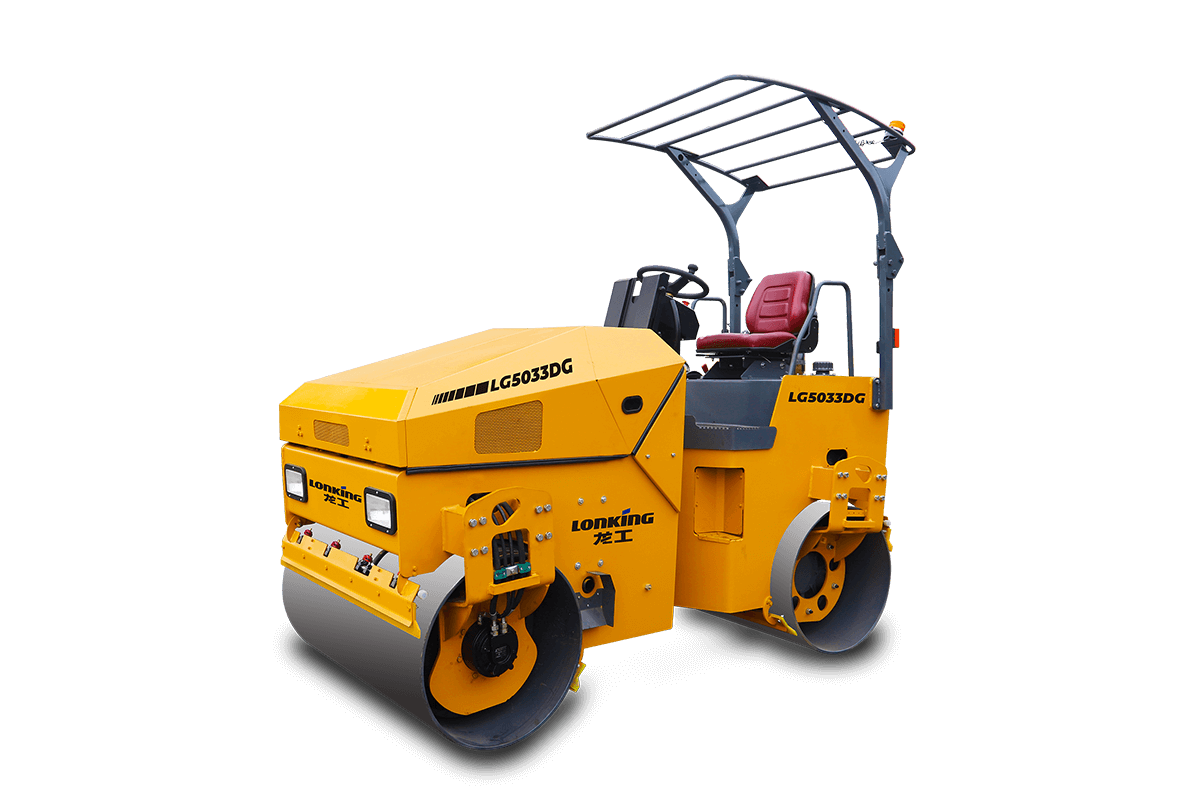

LONKING CDM5033DG

H.S.8429 5100 00



CDM5033DG - LONKING CDM5033DG - Road Roller CDM5033DG

Model CDM5033DG
Operating Weight 3000kg
Drum Width 1200 mm
Drum Diameter 7140 mm
Centrifugal Force 30 kN
Vibration Frequency 50 Hz
Nominal Amplitude 0.5 mm
Static Linear Load 125/125 N/cm
Overall Dimension(L×W×H) 2750×1350×2760mm
Engine Model 3B2-38C31 QUANCHAI
Rated Power 28 kW @ 2600 rpm
Travel Speed 0-8 km/h (Forward), 0-8 km/h (Reverse)
Fuel Tank Capacity 50 L
LONKING Road Roller

LONKING CDM510B
LONKING CDM512B
LONKING CDM514B（Nation II)
LONKING CDM514B（Nation III）
LONKING CDM516B
LONKING CDM520B9
LONKING CDM512D
LONKING CDM514D
LONKING CDM520D
LONKING CDM520A9
LONKING CDM5033DG

All specifications are approximate. Specifications are subject to change without notice.
