LONKING CDM520D

H.S.8429 5100 00

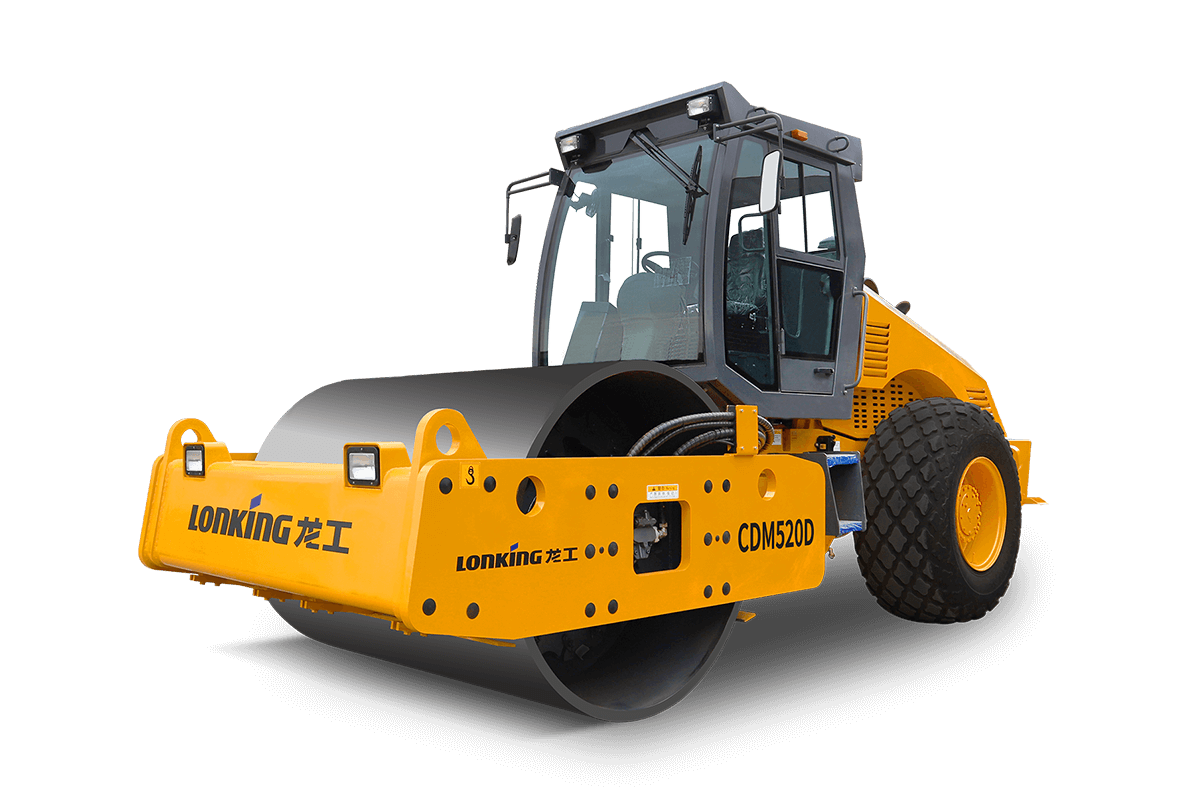

CDM520D - LONKING CDM520D - Road Roller CDM520D

Model CDM520D
Operating Weight 20000kg
Drum Width 2120 mm
Drum Diameter 1532 mm
Centrifugal Force 400/300 kN
Vibration Frequency 28/35 Hz
Nominal Amplitude 2.1/1.0 mm
Static Linear Load 542 N/cm
Overall Dimension(L×W×H) 6118×2300×3077mm
Engine Model 6CTA8.3-C215 DF Cummins
Rated Power 160 kW @ 2200 rpm
Travel Speed 0-10.8 km/h
Fuel Tank Capacity 280 L
LONKING Road Roller

LONKING CDM510B
LONKING CDM512B
LONKING CDM514B（Nation II)
LONKING CDM514B（Nation III）
LONKING CDM516B
LONKING CDM520B9
LONKING CDM512D
LONKING CDM514D
LONKING CDM520D
LONKING CDM520A9
LONKING CDM5033DG

All specifications are approximate. Specifications are subject to change without notice.
