LONKING CDM512D

H.S.8429 5100 00

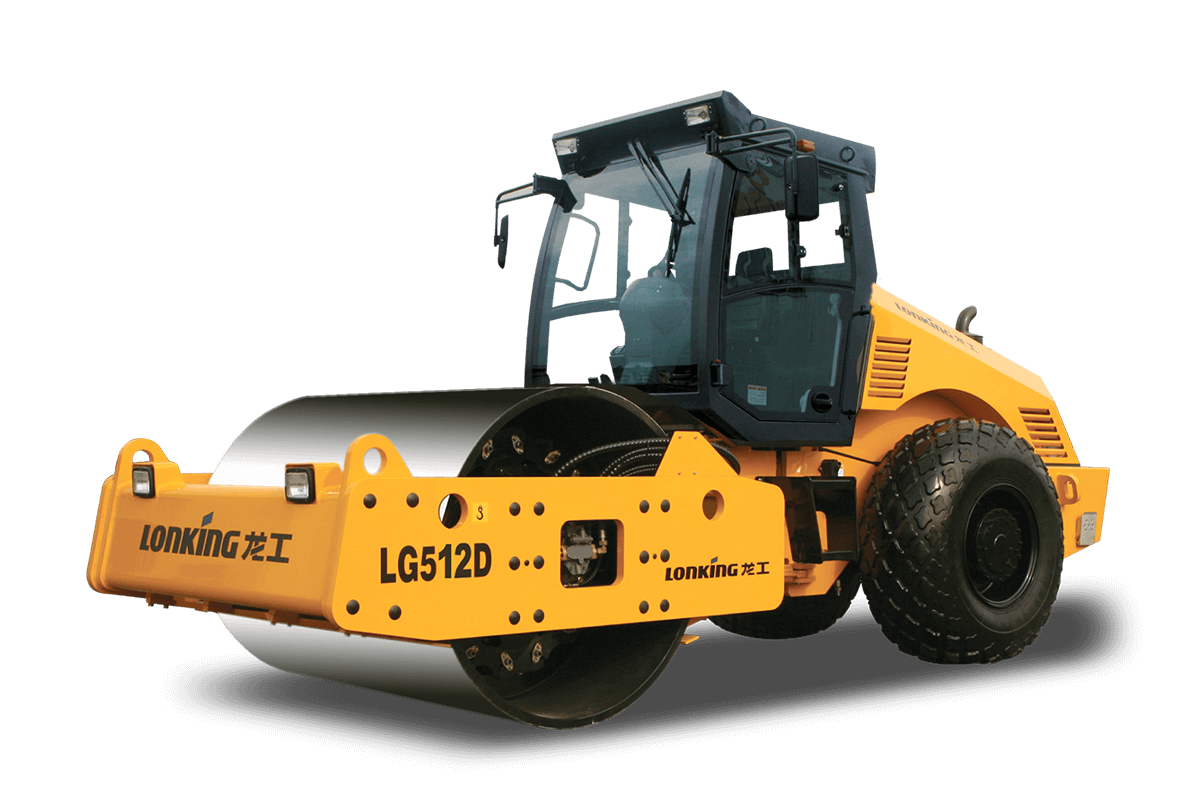

CDM512D - LONKING CDM512D - Road Roller CDM512D

Model CDM512D
Operating Weight 12000kg
Drum Width 2120 mm
Drum Diameter 1532 mm
Centrifugal Force 270/180 kN
Vibration Frequency 30/36 Hz
Nominal Amplitude 1.8/0.9 mm
Static Linear Load 303 N/cm
Overall Dimension(L×W×H) 5978×2280×3220mm
Engine Model 6BTA5.9-C150 DF Cummins
Rated Power 112 kW @ 2200 rpm
Travel Speed 0-10.8 km/h
Fuel Tank Capacity 280 L
LONKING Road Roller

LONKING CDM510B
LONKING CDM512B
LONKING CDM514B（Nation II)
LONKING CDM514B（Nation III）
LONKING CDM516B
LONKING CDM520B9
LONKING CDM512D
LONKING CDM514D
LONKING CDM520D
LONKING CDM520A9
LONKING CDM5033DG

All specifications are approximate. Specifications are subject to change without notice.
