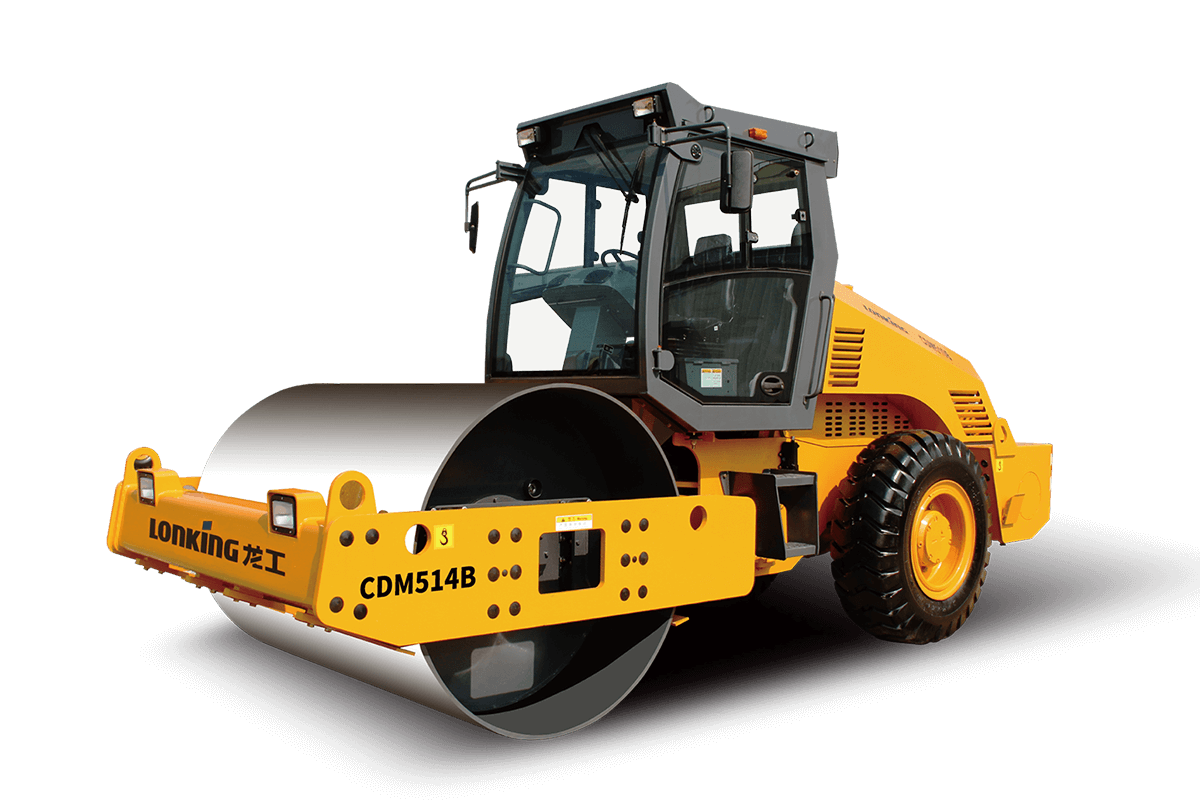

LONKING CDM514B（Nation II)

H.S.8429 5100 00



CDM514B（Nation II) - LONKING CDM514B（Nation II) - Road Roller CDM514B（Nation II)

Model CDM514B（Nation II)
Operating Weight 14000kg
Drum Width 2120 mm
Drum Diameter 1520 mm
Centrifugal Force 270/160 kN
Vibration Frequency 28 Hz
Nominal Amplitude 1.8/0.9 mm
Static Linear Load 330 N/cm
Overall Dimension(L×W×H) 5975*2280*3278 mm
Engine Model WP6G125E202 Weichai
Rated Power 92 kW @ 2000 rpm
Travel Speed 2.32/4.1/11.38 km/h
Fuel Tank Capacity 240 L
