| Model |

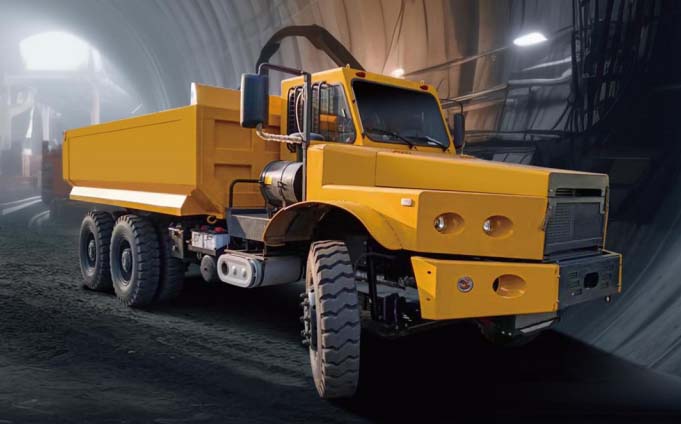

UQ-20 |
| Dimensions (L×W×H)(mm) |
(7640±220)×(2500±75)×(2460±70) |
| Engine Model |
YC6L290-T300 |
| Rating power(KW) |
213KW |
| Maximum output torque(N·m) |
1100N·m |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
Mechanical gearbox |
| Service brake |
Six-wheel brake, hydraulic brake, wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
6x4 |
| Vehicle structure type |
Long head split body |
| Rated load weight(Kg) |
20000Kg |
| Rated capacity |
/ |
| Wheelbase(mm) |
3650+1350 |
| Wheelbase specifications(front/rear) |
2035/1850 |
| Maximum unloading height(mm) |
240 |
| Minimum Ground Clearance(mm) |
/ |
| Maximum gradeability(%) |
≥ 25(14° ) |
