| Model |

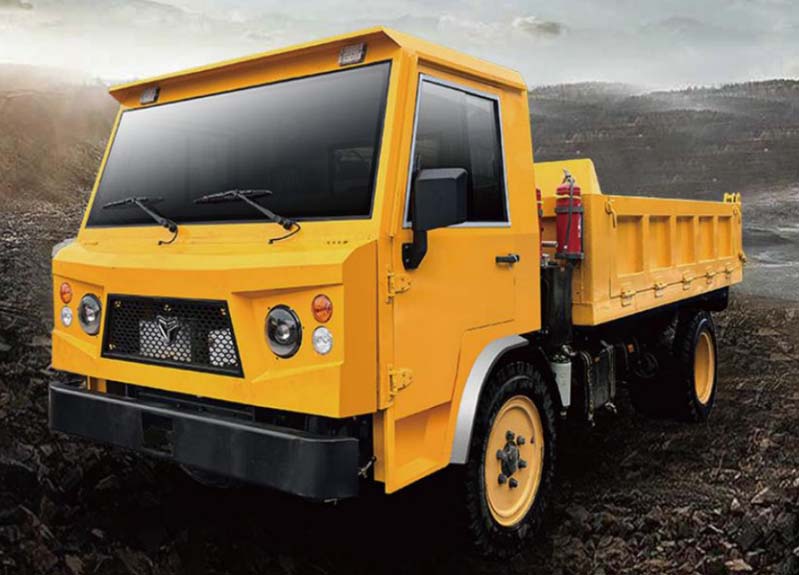

UQ-6 |
| Dimensions (L×W×H)(mm) |
(6070±180)×(2000±60)×(2250±50) |
| Engine Model |
B5.9CS4 150C |
| Rating power(KW) |
110 |
| Maximum output torque(N·m) |
650/1000-1600 |
| Clutch |
Electronically controlled automatic clutch |
| Gearbox |
Allison Automatic Transmission |
| Service brake |
Four-wheel brake, hydraulic brake, spring release,wet brake |
| Parking brake |
Spring brake, hydraulic release, central brake |
| Emergency braking |
Hand pulled |
| Drive form |
4x2 rear axle drive |
| Vehicle structure type |
One-piece |
| Rated load weight(Kg) |
/ |
| Rated capacity |
2 |
| Wheelbase(mm) |
3310 |
| Wheelbase specifications(front/rear) |
1750±50/1520±40 |
| Maximum unloading height(mm) |
/ |
| Minimum Ground Clearance(mm) |
280±20 |
| Maximum gradeability(%) |
14 |
