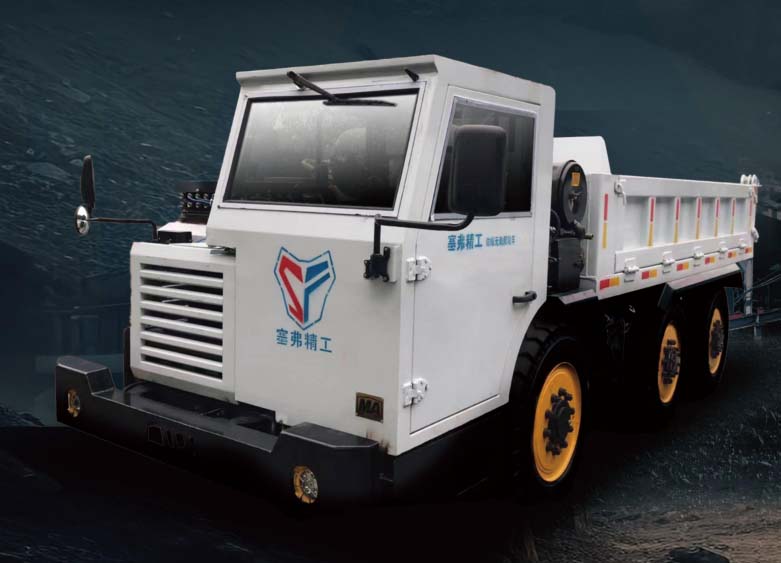

| Model |
WC10J |
| Dimensions (L×W×H) |
(6250±180)×(2050±60)×(2030±60) mm |
| Engine Model |
KC6102DZL(D/Q)FB |
| Rated power |
120 KW |
| Maximum output torque |
700 N·m |
| Clutch |
Diaphragm spring clutch |
| Gearbox |
Mechanical gearbox |
| Service brakes |
Dual-circuit wet brakes |
| Parking brake |
Fail-safe wet brakes |
| Emergency braking |
Fail-safe wet brakes |
| Drive form |
6*4 |
| Vehicle structure type |
Flat-head split body |
| Rated load weight |
10000 Kg |
| Wheelbase |
2000+1350 mm |
| Wheel base (front/rear) |
1780/1670/1670 mm(Front / Middle / Rear) |
| Minimum ground clearance |
210 mm |
| Maximum gradeability |
≥25(14°) % |
|
|
