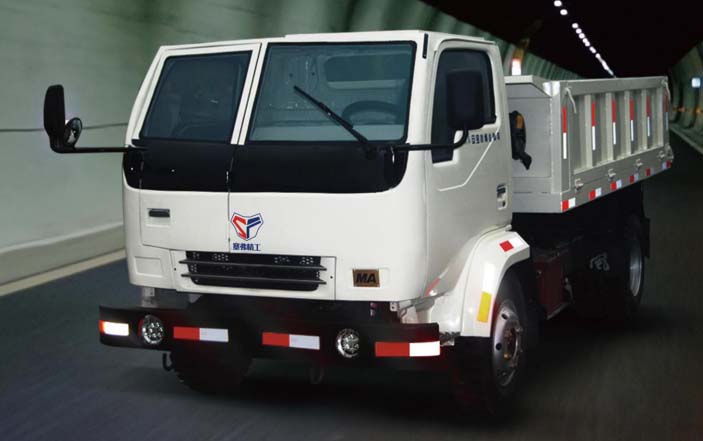

SAIFU WC5J Flathead 4x2

WC5J Flathead 4x2 - SAIFU WC5J Flathead 4x2 - Dump Truck WC5J Flathead 4x2

Model	WC5J Flathead 4x2
Dimensions (L×W×H)	(5400±160)×(2000±60)×(2230±60) mm
Engine Model	KC6102DZL(D/Q)FB
Rated power	120 KW
Maximum output torque	479 N·m
Clutch	Diaphragm spring clutch
Gearbox	Mechanical gearbox
Service brakes	Four-wheel braking, Hydraulic brakin, Wet brake
Parking brake	Fail-safe wet brakes
Emergency braking	Fail-safe wet brakes
Drive form	4×2
Vehicle structure type	Flat-head split body
Rated load weight	5000 Kg
Wheelbase	3100 mm
Wheel base (front/rear)	1620/1485 mm(Front/Rear)
Minimum ground clearance	180 mm
Maximum gradeability	≥25(14°) %
