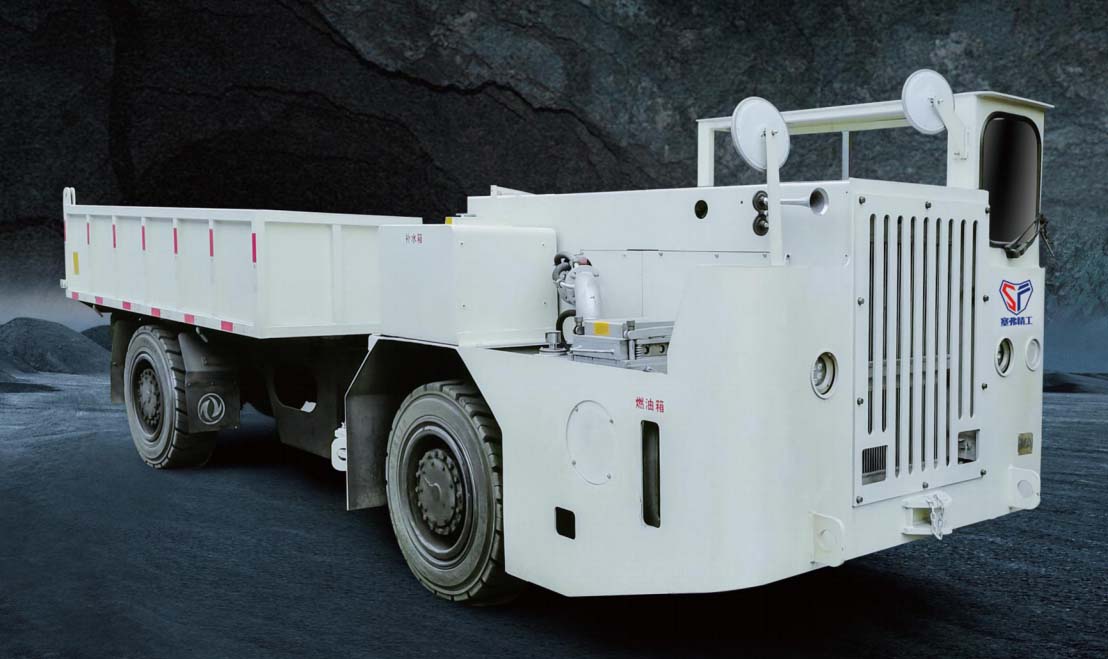

| Model |
WCJ8E |
| Dimensions (L×W×H) |
(6890±200)×(1960±50)×(2000±60) mm |
| Engine Model |
KC6102DZLQFB/YTO6105DZLQFB |
| Rated power |
120/100 KW |
| Maximum output torque |
700/542 N·m |
| Gearbox |
Torque converter + gearbox |
| Service brakes |
Four-wheel braking,Hydraulic brakin,Wet brakes |
| Parking brake |
Fail-safe wet brakes |
| Emergency braking |
Fail-safe wet brakes |
| Drive form |
4×4 time-shift four-wheel drive |
| Vehicle structure type |
Centrally Articulated |
| Rated load weight |
8000 Kg |
| Wheelbase |
3600 mm |
| Wheel base (front/rear) |
1500/1500mm(front/rear) |
| Minimum ground clearance |
210 mm |
| Maximum gradeability |
≥25(14°) % |
|
|
