| Model |

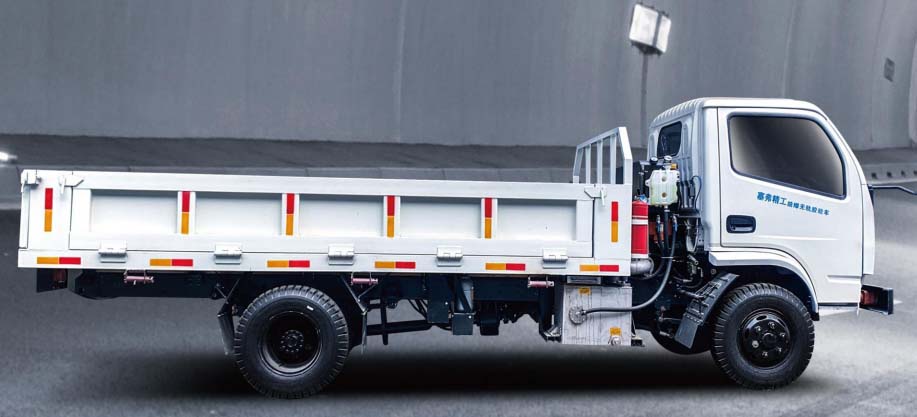

WC5J(H) |
| Dimensions (L×W×H) |
(6450±190)×(2030±60)×(2230±60) mm |
| Engine Model |
KC4107DZLQFB(A) |
| Rated power |
80 KW |
| Maximum output torque |
380 N·m |
| Clutch |
Diaphragm spring clutch |
| Gearbox |
Mechanical gearbox |
| Service brakes |
Four-wheel braking, Hydraulic brakin, Wet brake |
| Parking brake |
Rear Axle Parking System, Spring Brake, Hydraulic Release |
| Emergency braking |
Fail-safe wet brakes |
| Drive form |
4×2 |
| Vehicle structure type |
Flat-head split body |
| Rated load weight |
5000 Kg |
| Wheelbase |
3500 mm |
| Wheel base (front/rear) |
1620/1500 mm(Front/Rear) |
| Minimum ground clearance |
180 mm |
| Maximum gradeability |
≥25(14°) % |
|
|
