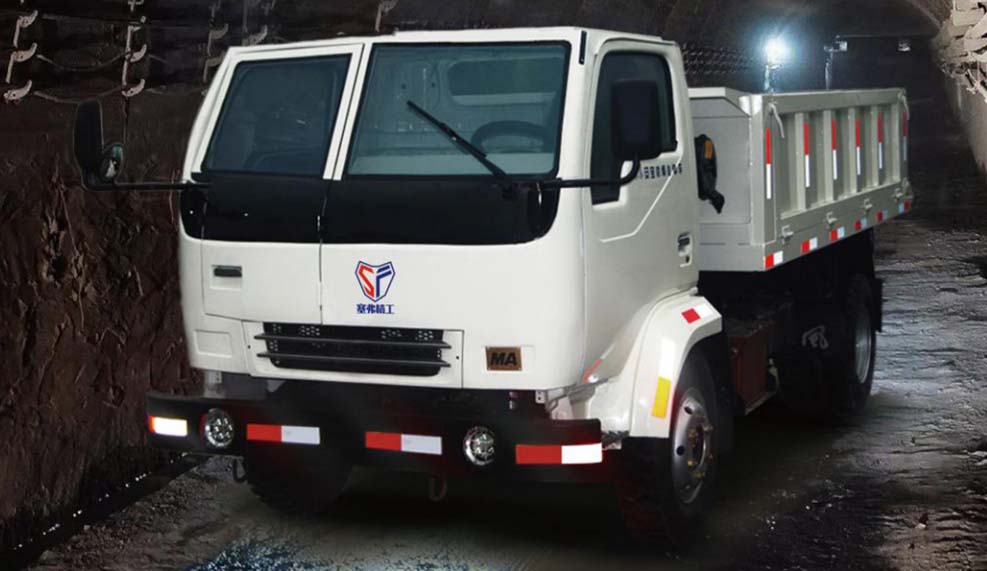

SAIFU WC3J Triple Door 4×2

WC3J Triple Door 4×2 - SAIFU WC3J Triple Door 4×2 - Dump Truck WC3J Triple Door 4×2

Model	WC3J Triple Door 4×2
Dimensions (L×W×H)	(4720±50)×(1950±30)×(2230±30) mm
Engine Model	KC4107DZLQFB(A)
Rated power	80 KW
Maximum output torque	380 N·m
Clutch	Diaphragm spring clutch
Gearbox	Mechanical gearbox
Service brakes	Four-wheel braking,Hydraulic braking,Wet brakes
Parking brake	Fail-safe wet brakes
Emergency braking	Fail-safe wet brakes
Drive form	4×2
Vehicle structure type	Flat-head split body
Rated load weight	3000 Kg
Wheelbase	2700 mm
Wheel base (front/rear)	1620/1485 mm(Front/Rear)
Minimum ground clearance	180 mm
Maximum gradeability	≥25(14°) %
