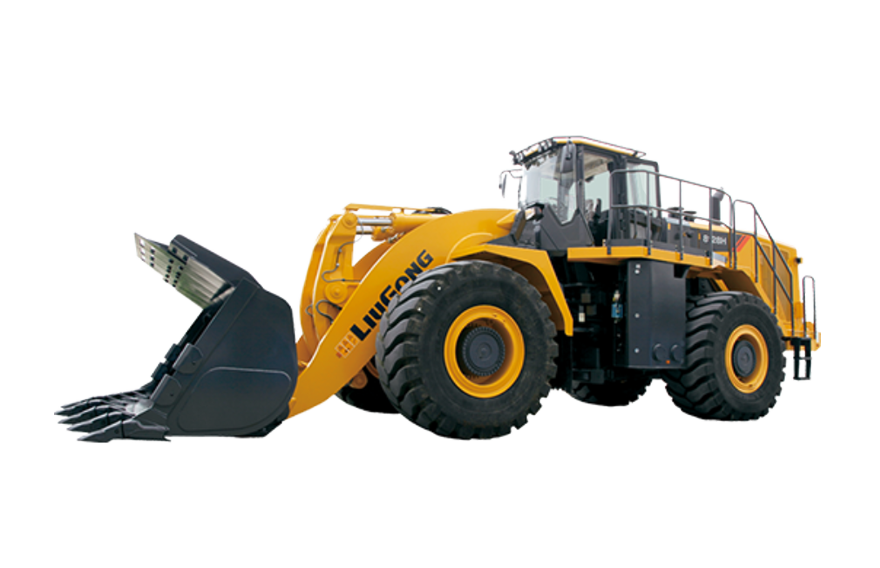

LIUGONG 8128H

8128H - LIUGONG 8128H - LIUGONG Wheel Loader

Model	8128H(Tier3/StageIII)
Operating weight	52,100 kg
Rated Power	418 kW (561 hp / 568 ps) @ 2,000 rpm
Raise	8.5 s
Tipping Load - Full Turn	31,200 kg
Dump Clearance at Full Height Discharge	4,094 mm
Model	Cummins QSK19
Aspiration	Turbocharged & Air-to-air intercooled
Width over Tires	3,590 mm
Turning Radius, Outside of Tire	7,620 mm
Light Material Bucket	11 m³
Standard Bucket Capacity	7.0 m³
Total Hydraulic Cycle Time	14.58 s
Maximum Travel Speed, fwd	36 km/h
Bucket Breakout Force	432 kN
Dump Reach at Full Height Discharge	1,861 mm
Emission Rating	Tier 3/Stage III
Length with Bucket Down	11,847 mm
Cab Height	4,195 mm
Bucket Capacities	6.0-12 m³
Rock Bucket	6.0 m³ , 7.0 m³

816H

820H

820T

835H

835T

838T

842T

848T

855H

855T

856H

856T

862H

870H

870T

877T

ZL50CN

886T

886T HST

890T

8128H

820TE

838TE

848TE

856HE

870HE

All specifications are approximate. Specifications are subject to change without notice.
