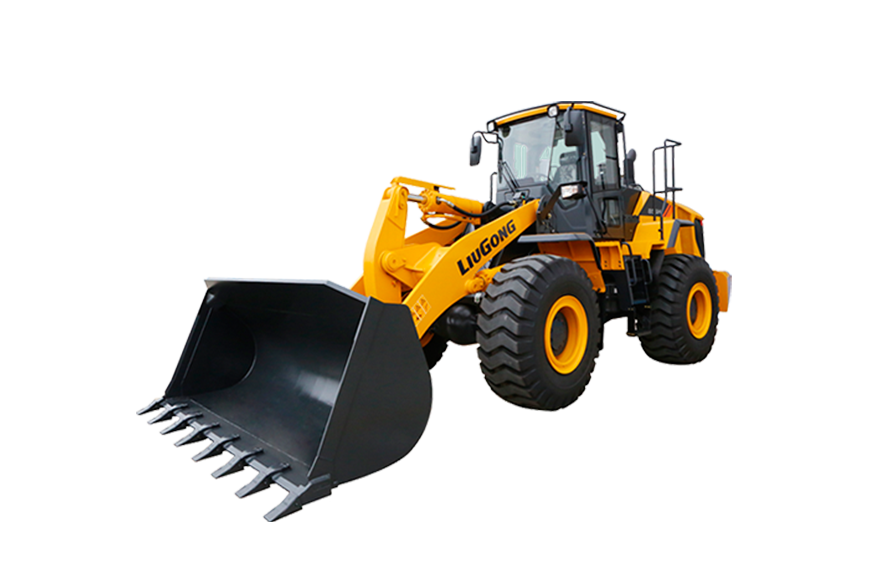

LIUGONG 856T

856T - LIUGONG 856T - LIUGONG Wheel Loader

Model	856T (Tier 2 / Stage II)
Operating weight	17,900 kg
Rated Power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Raise	5.3 s
Tipping Load - Full Turn	12,600 kg
Dump Clearance at Full Height Discharge	2,978 mm
Model	Cummins 6LTAA9.3
Aspiration	Turbocharged & air-to-air intercooled
Width over Tires	2,750 mm
Turning Radius, Outside of Tire	6,308 mm
GP Bucket	2.7-5.2 m³
Rock Bucket	2.5 m³, 2.7 m³, 3.0 m³
Standard Bucket Capacity	3.5 m³
Total Hydraulic Cycle Time	9.3 s
Maximum Travel Speed, fwd	37.4 km/h
Bucket Breakout Force	180.7 kN
Dump Reach at Full Height Discharge	1,231 mm
Emission Rating	Tier 2 / Stage II
Length with Bucket Down	8,100 mm
Cab Height	3,500 mm
Bucket Capacities	2.7-5.6 m³
Light Material Bucket	5.6 m³
