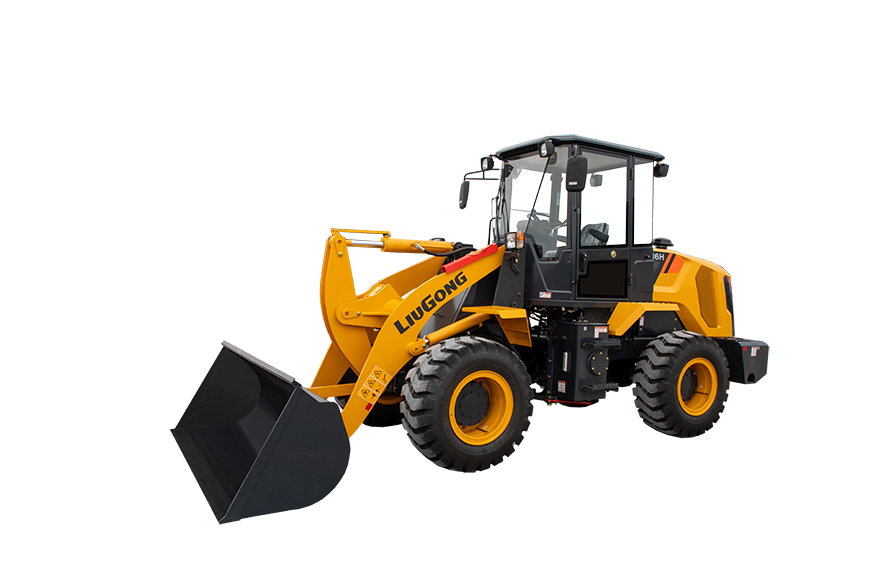

LIUGONG 816H

816H - LIUGONG 816H - LIUGONG Wheel Loader

Model	816H (Tier 2/Stage II)
Operating weight	5,180 kg
Rated Power	65 kW (87 hp / 88 ps) @ 2,400 rpm
Raise	4.6 s
Tipping Load - Full Turn	3,300 kg
Dump Clearance at Full Height Discharge	2,600 mm
Model	Yunnei YN38GBZ1
Aspiration	Naturally aspirated
Width over Tires	1,980 mm
Turning Radius, Outside of Tire	4,780 mm
Standard Bucket Capacity	1.2 m³
Total Hydraulic Cycle Time	8.6 s
Maximum Travel Speed, fwd	21 km/h
Bucket Breakout Force	55 kN
Dump Reach at Full Height Discharge	1,090 mm
Emission Rating	Tier 2/Stage II
Length with Bucket Down	5,825 mm
Cab Height	2,900 mm
Bucket Capacities	0.7-1.5 m³
GP Bucket	0.8-1.4 m³

816H

820H

820T

835H

835T

838T

842T

848T

855H

855T

856H

856T

862H

870H

870T

877T

ZL50CN

886T

886T HST

890T

8128H

820TE

838TE

848TE

856HE

870HE

All specifications are approximate. Specifications are subject to change without notice.
