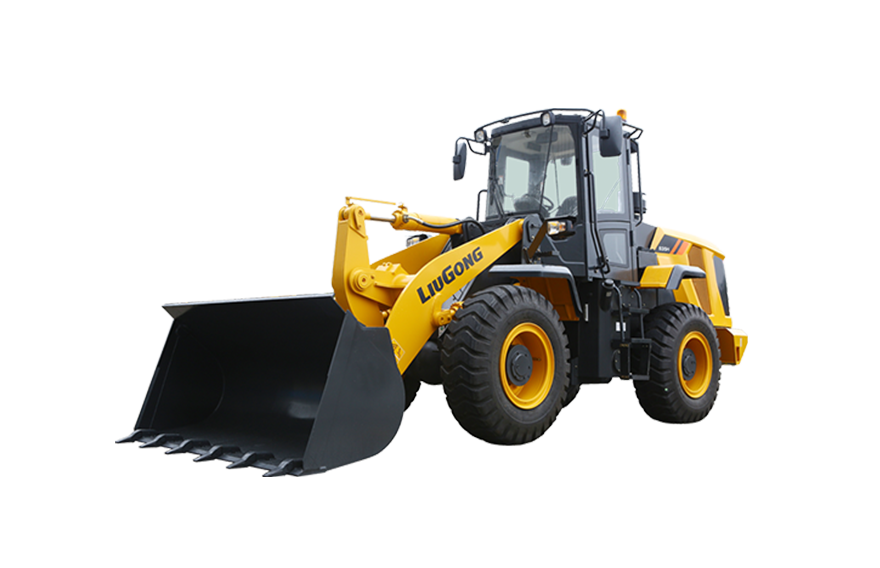

LIUGONG 835H

835H - LIUGONG 835H - LIUGONG Wheel Loader

Model	835H (Tier 2 / Stage II)
Operating weight	10,125 kg
Rated Power	92 kW (123 hp / 125 ps) @ 2000 rpm
Raise	5.5 s
Tipping Load - Full Turn	6,700 kg
Dump Clearance at Full Height Discharge	2,930 mm
Model	Yuchai YC6J125Z
Aspiration	Turbocharged
Width over Tires	2,295 mm
Turning Radius, Outside of Tire	5,090 mm
GP Bucket	1.7-3.0 m³
Slag Bucket	1.5 m³
Standard Bucket Capacity	1.8 m³
Total Hydraulic Cycle Time	9.7 s
Maximum Travel Speed, fwd	36 km/h
Bucket Breakout Force	102 kN
Dump Reach at Full Height Discharge	1035 mm
Emission Rating	Tier 2 / Stage II
Length with Bucket Down	7,150 mm
Cab Height	3,340 mm
Bucket Capacities	1.5-3.0 m³
Rock bucket	1.5 m³

816H

820H

820T

835H

835T

838T

842T

848T

855H

855T

856H

856T

862H

870H

870T

877T

ZL50CN

886T

886T HST

890T

8128H

820TE

838TE

848TE

856HE

870HE

All specifications are approximate. Specifications are subject to change without notice.
