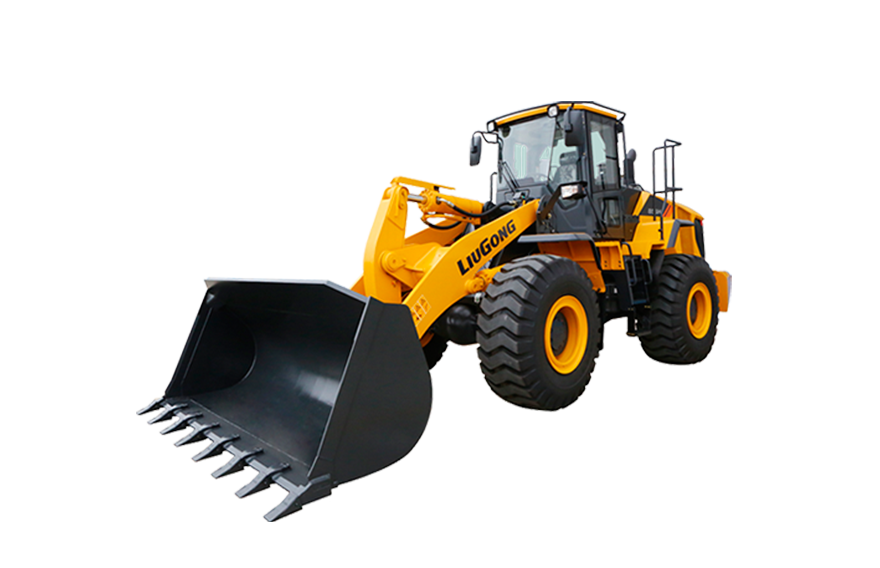

| Model |
856H(Tier2/StageII) |
856H(Tier3/StageIII) |
856H(EU Stage V) |
| Operating weight |
17,900 kg |
18,100 kg |
20,150 kg |
| Rated Power |
162 kW (217 hp / 220 ps) @ 2,200 rpm |
162 kW (217 hp / 220 ps) @ 2,200 rpm |
183 kW (245 hp / 249 ps) @ 1,700 rpm |
| Raise |
5.3 s |
5.3 s |
5.3 s |
| Tipping Load - Full Turn |
12,600 kg |
12,600 kg |
13,647 kg |
| Dump Clearance at Full Height Discharge |
2,978 mm |
2,978 mm |
2,862 mm |
| Model |
Cummins 6LTAA9.3 |
Cummins QSL9.3 |
Cummins B6.7 |
| Aspiration |
Turbocharged & Air-to-air intercooled |
Turbocharged & Air-to-air intercooled |
Turbocharged & Air-to-air intercooled |
| Width over Tires |
2,750 mm |
2,750 mm |
2,750 mm |
| Turning Radius, Outside of Tire |
6,380 mm |
6,207 mm |
6,380 mm |
| GP Bucket |
2.7-5.2 m3 |
3.0-4.2 m3 |
3.2-5.2 m3 |
| Rock Bucket |
2.5 m3, 2.7 m3, 3.0 m3 |
2.5 m3, 2.7 m3, 3.0 m3 |
2.5 m3, 2.7 m3, 3.0 m3 |
| Standard Bucket Capacity |
3.5 m3 |
3.5 m3 |
3.2 m3 |
| Total Hydraulic Cycle Time |
9.3 s |
9.4 s |
10.2 s |
| Maximum Travel Speed, fwd |
37.4 km/h |
38.6 km/h |
38 km/h |
| Bucket Breakout Force |
180.7KN |
180.7KN |
153KN |
| Dump Reach at Full Height Discharge |
1,231 mm |
1,231 mm |
1,207 mm |
| Emission Rating |
Tier 2/Stage II |
Tier 3/Stage III |
EU Stage V |
| Length with Bucket Down |
8,100 mm |
8,390 mm |
8,303 mm |
| Cab Height |
3,500 mm |
3,500 mm |
3,450 mm |
| Bucket Capacities |
2.7-5.6 m3 |
2.7-5.6 m3 |
3.0-6.0 m3 |
| Light Material Bucket |
5.6 m3 |
5.6 m3 |
/ |
|
|
