| Model |

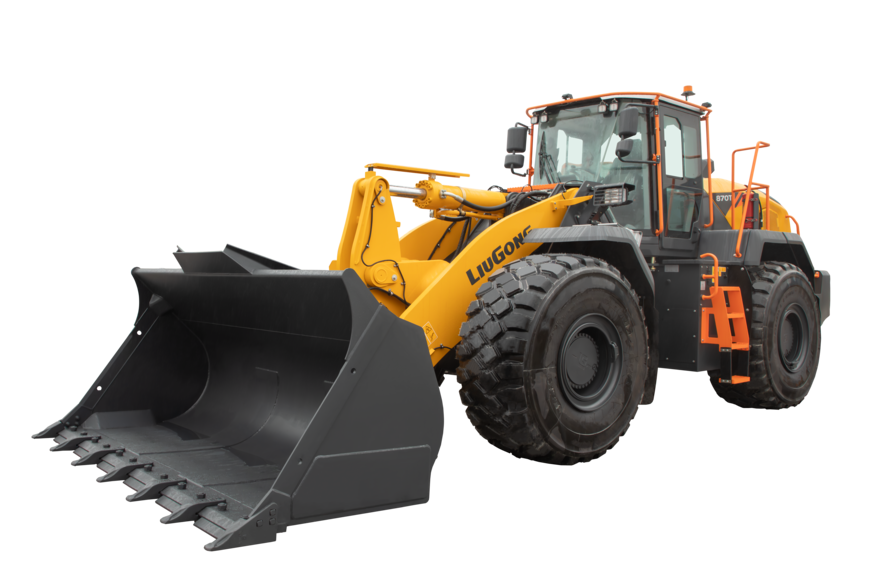

870T (EU Stage V) |

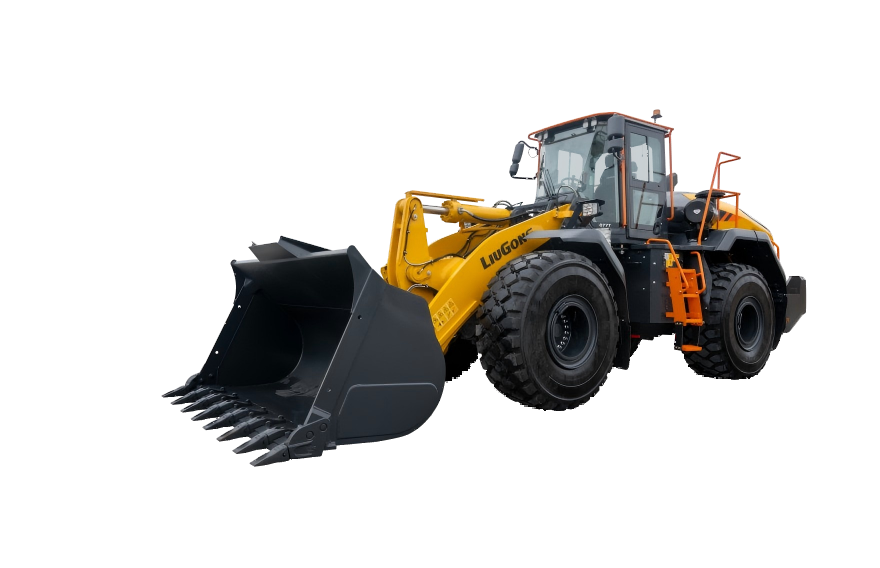

877T (Tier 4 Final) |
877T (Tier 3/Stage III) |
| Operating weight |
26,275 kg |
27,165 kg |
26,000 kg |
| Rated Power |
223 kW (299 hp / 303 ps) @ 1,700 rpm |
223 kW (299 hp / 303 ps) @ 1,700 rpm |
220 kW (295 hp / 299 ps) @ 2,100 rpm |
| Raise |
5.8 s |
5.8 s |
5.3 s |
| Tipping Load - Full Turn |
17,400 kg |
17,700 kg |
17,400 kg |
| Dump Clearance at Full Height Discharge |
3,319 mm |
3,319 mm |
3,390 mm |
| Model |
Cummins L9 |
Cummins L9 |
Cummins L9 |
| Aspiration |
Turbocharged & air-to-air intercooled |
Turbocharged & air-to-air intercooled |
Turbocharged & air-to-air intercooled |
| Width over Tires |
2,970 mm |
3,055 mm |
2,975 mm |
| Turning Radius, Outside of Tire |
6,981 mm |
7,040 mm |
6,981 mm |
| GP Bucket |
4.5-6.0 m3 |
4.5-6.0 m3 |
4.5-6.0 m3 |
| Rock Bucket |
4.2 m3 |
/ |
4.2 m3 |
| Standard Bucket Capacity |
4.7 m3 |
4.7 m3 |
4.5 m3 |
| Total Hydraulic Cycle Time |
10.6 s |
10.6 s |
10 s |
| Maximum Travel Speed, rev |
40 km/h |
35 km/h |
39 km/h |
| Bucket Breakout Force |
206 kN |
206 kN |
242 kN |
| Dump Reach at Full Height Discharge |
1,237 mm |
1,237 mm |
1,223 mm |
| Emission Rating |
EU Stage V |
Tier 4 Final |
Tier 3/Stage III |
| Length with Bucket Down |
9,671 mm |
9,671 mm |
9,700 mm |
| Cab Height |
3,660 mm |
3,660 mm |
3,630 mm |
| Bucket Capacities |
3.5-7.0 m3 |
3.5-7.0 m3 |
3.5-7.0 m3 |
| Light Material Bucket |
7.2 m3 |
/ |
7.2 m3 |
| Slag Bucket |
4.7 m3 |
/ |
/ |
|
|
